HANDLING AND LIFTING

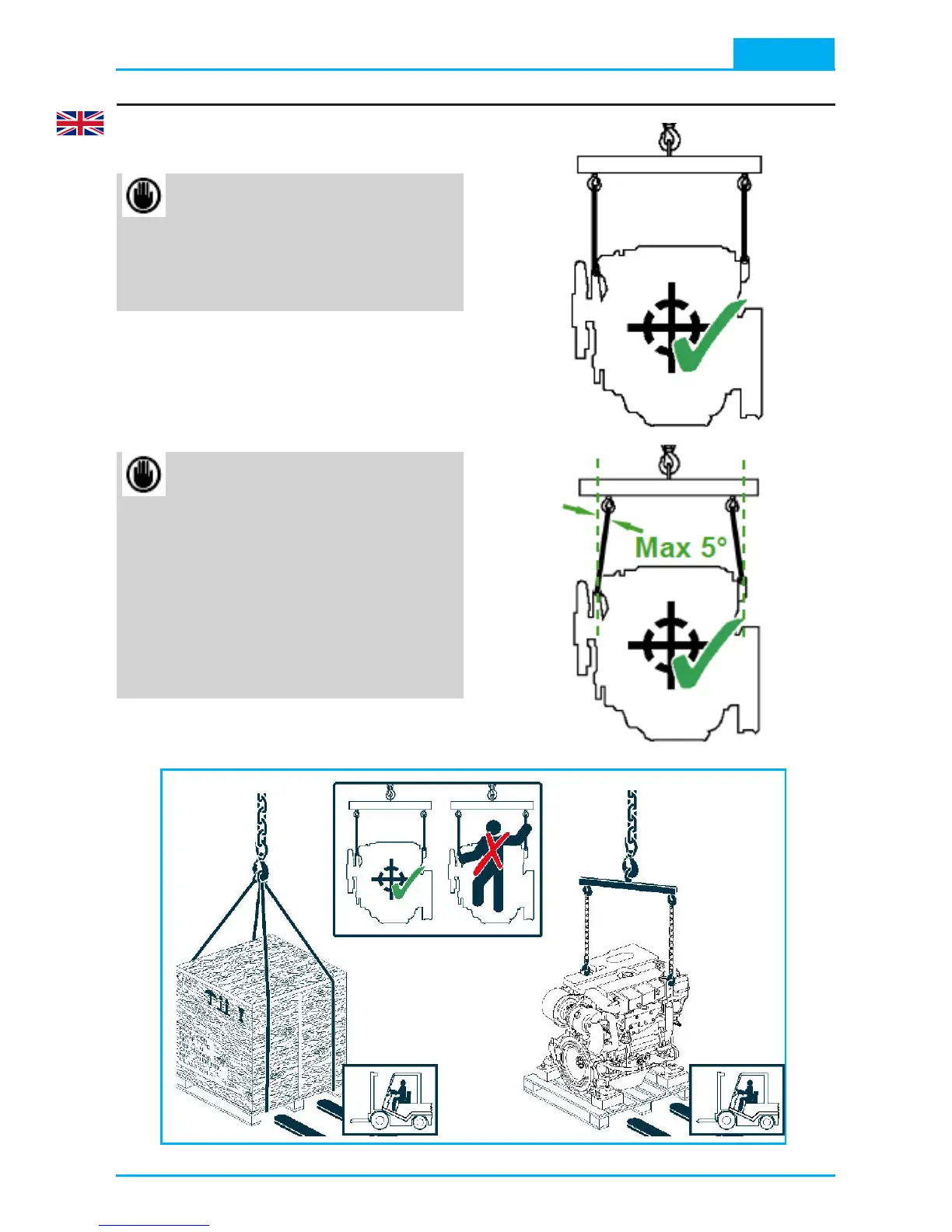

Secure the engine with a lifting device
(lifting beam) of appropriate capacity.
Warning - Caution
The angle formed by the lifting device
chains must not exceed 5°, as shown
in the gure.
Hook the lifting device to the xing points
as shown in the gure.
Before carrying out the lifting, identify the
barycentre position of the load.
Warning - Caution
The brackets of the xing points have
been designed to lift the engine only
without any additional weight. Do
not lift the engine using a different
procedure from the prescribed one;
otherwise, the warranty for damages
will be invalidated.
