MR 700
58
Ed. 3 - 2012_11
English
INFORMATION ABOUT COMPONENT REPLACEMENT
RECOMMENDATIONS FOR PART REPLACEMENT
Before carrying out any replacement, ac-
tivate all safety devices and evaluate the
need to inform the personnel working on
the engine or nearby. In particular, place
proper signs in the nearby areas and
keep away all devices which, once acti-
vated, may represent a source of unex-
pected danger and risk for people’s safety
and health. When necessary, replace the
worn components, and use original spare
parts only. The manufacturer cannot be
held responsible for damages to people
or components resulting from the use of
non original spare parts and from repairs
carried out without the authorisation of the
manufacturer.
When requesting spare parts, always
contact your nearest VM MOTORI
S.P.A. spare parts dealer (see “Enclosed
documentation”: Spare parts and service
centre address booklet) and indicate the
engine’s serial number (see “Manufactu-
rer and engine identication”).

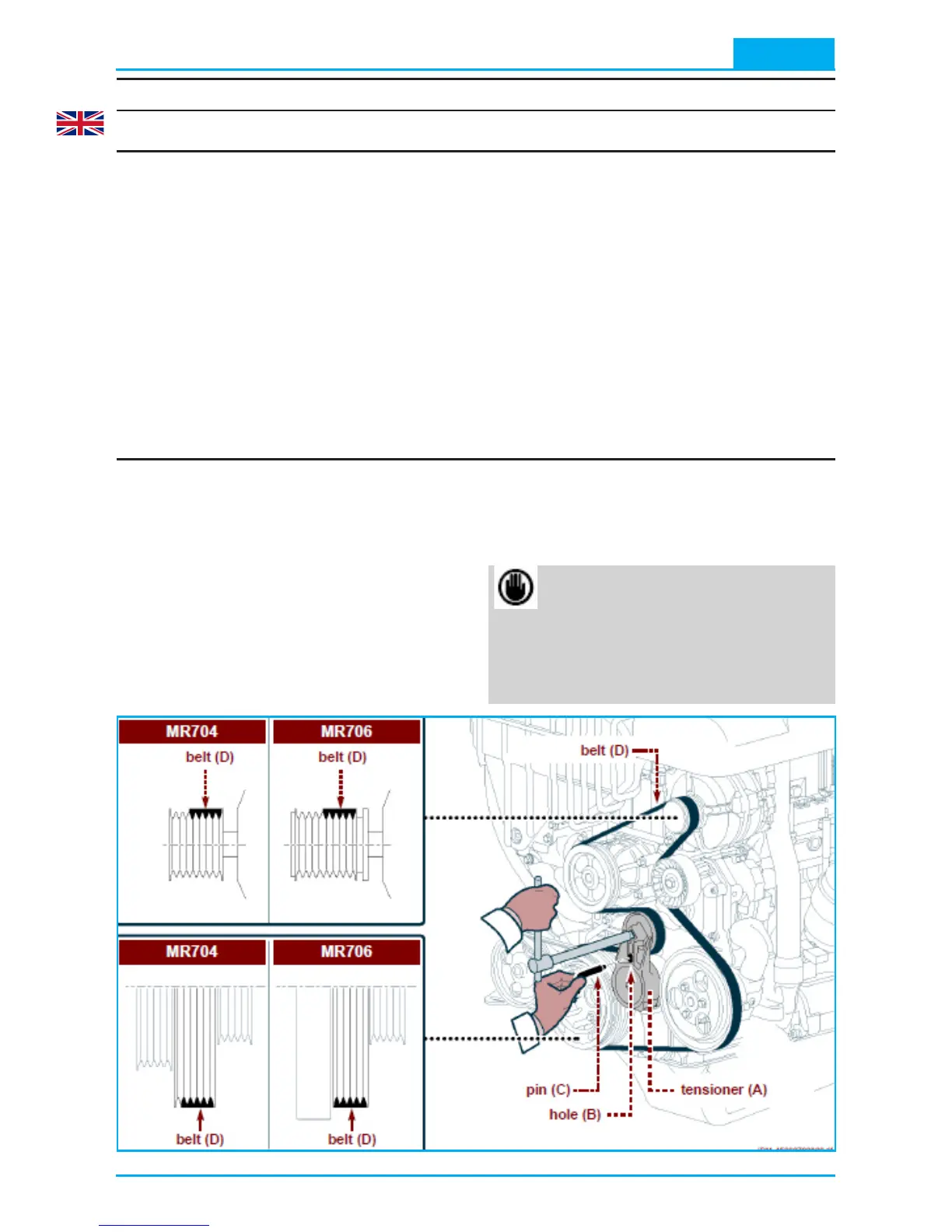

BELT REPLACEMENT
Follow the procedure below.
1 -Turn off the engine and remove the
ignition key.
2 -Let the engine cool down adequately to
avoid being burnt.
3 -Loosen the belt by moving the ten-
sioner (A) until the holes (B) match and
block it with pin (C).
4 -Remove the belt (D) and replace it.
5 -Tension the belt by moving the tensio-
ner (A), remove the pin (C) and release it.
Warning- Attention
To tighten the belt, it must be cor-
rectly positioned in the housings on
each of the pulleys.
