MR 700
50
Ed. 3 - 2012_11
F1
F2
F3
F4
F5
F6
K2
K1
English
RESET FUSES

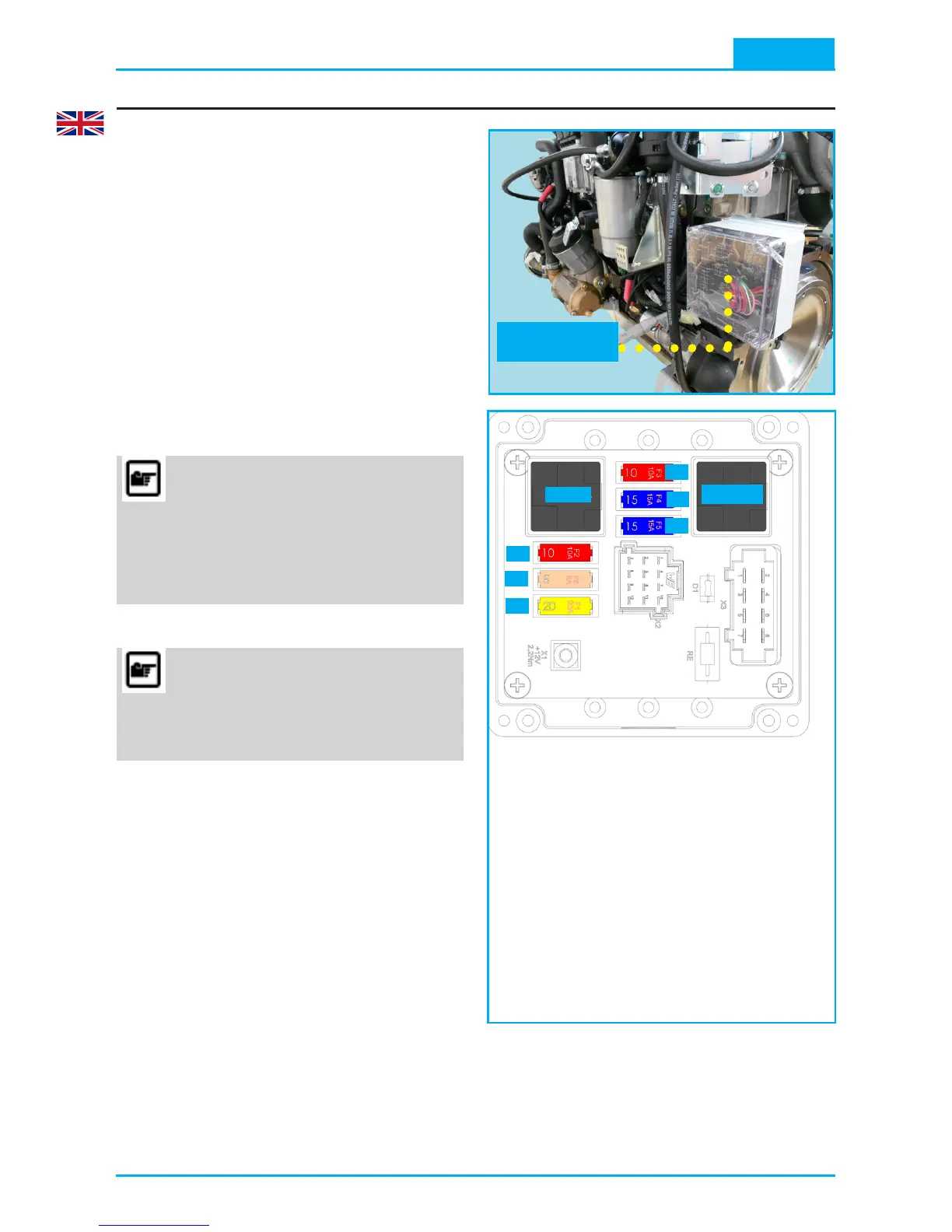

The engine is equipped with safety fuses,
which cut out to prevent damage to the
electrical components.
In the event of malfunctions due to trig-
gering of a fuse, the cause (overload or
short circuit current) must be eliminated
before the fuse is reset.
1 - To repair the protective fuse of the
electrical circuit, open the fuse box/re-
lay (A) and replace the fuse which has
intervened.
Important
the new fuse must have the same
electrical characteristics as the fuse
replaced.
Important
If the problem persists, contact a VM
MOTIRI S.P.A. service centre.
Fuse/relay box (A)
K1: Starter motor relay
K2: Main relay
F1: 20A
F2: 10A
F3: 10A
F4: 15A
F5: 15A
F6: 5A
