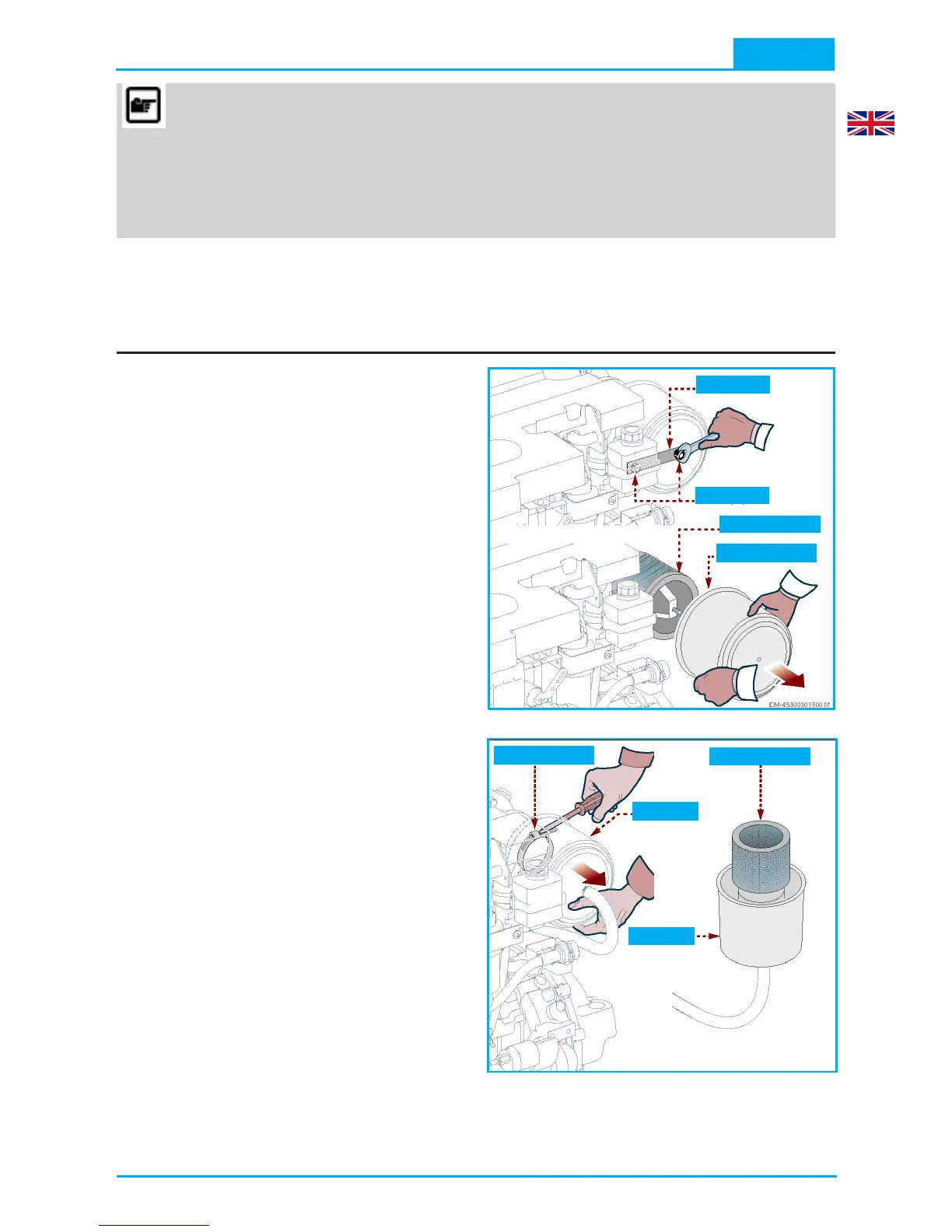

INLET AIR FILTER REPLACEMENT
Model MR704
Follow the procedure below.
1 -Turn off the engine and remove the
ignition key.
2 -Let the engine cool down adequately to
avoid being burnt.
3 -Unscrew the nuts (A).
4 -Remove the bracket (B).
5 -Remove the protection (C) and replace
the cartridge (D).
6 -Reposition the protection (C).
7 -Reposition the bracket (B) and block it.
Model MR706
Follow the procedure below.
1 -Turn off the engine and remove the
ignition key.
2 -Let the engine cool down adequately to
avoid being burnt.
3 -Loosen hose clamp (A) and remove
the lter (B).
4 -Extract sponge (C) and replace it.
5 -Replace the lter (B) and x it using the
hose clamp (A).
bracket (B)
nut (A)
cartridge (D)
housing (C)
clamp (A)
sponge (C)
lter (B)
lter (B)
