□ Remove glow plug module from bottom of passenger side
battery box (Torx T30 bolts) (save module for later use).
□ Disconnect hoses from secondary coolant reservoir (attached to
passenger side of fan shroud) and remove reservoir from fan
shroud.
□ Remove upper secondary coolant hose (top hose going to water
pump on passenger side of engine).
□ Cut plastic cuff securing hose on secondary rad hose carefully to
preserve fitting (discard band and hose) (Figure 2.01).

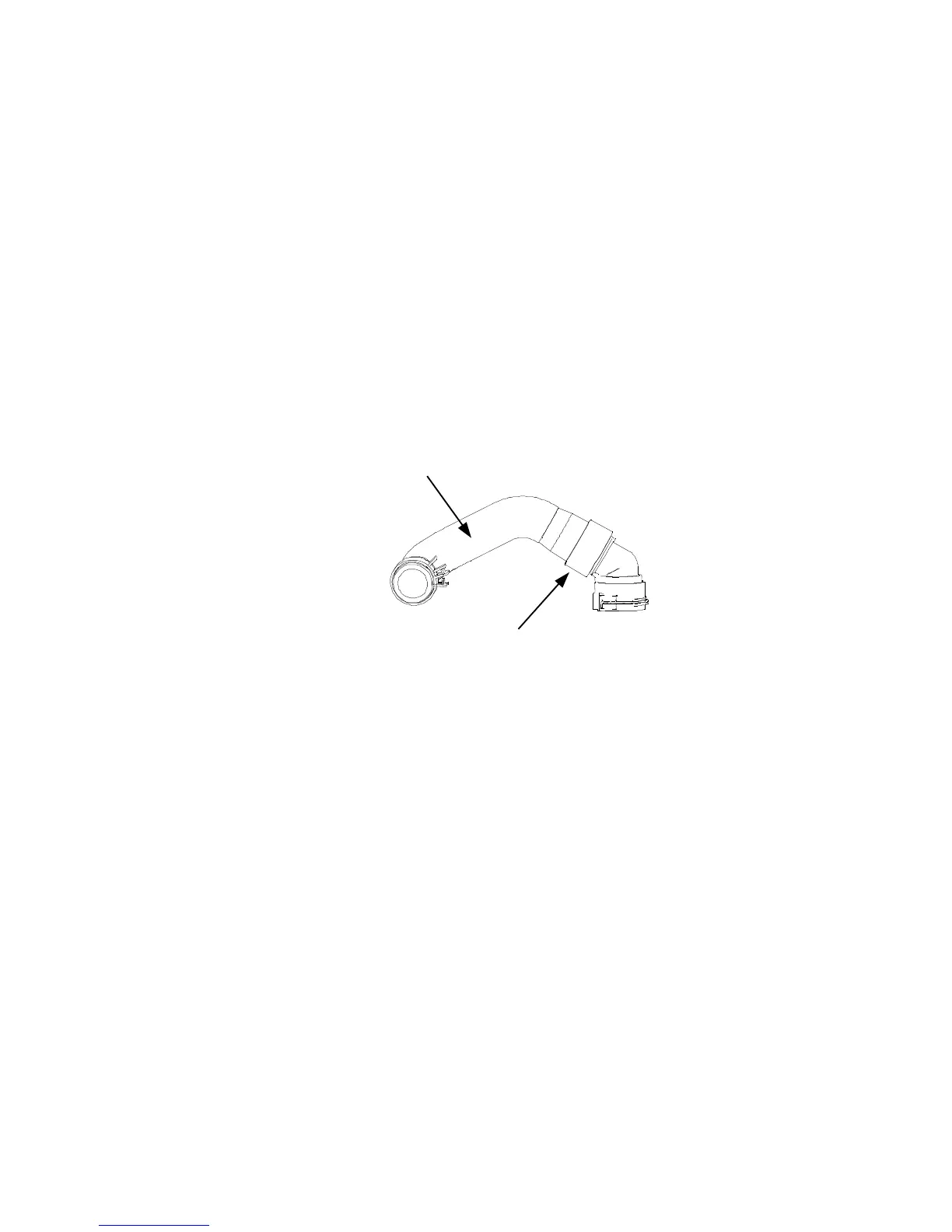

Cut Plastic Cuff To
Remove Connector
Upper Secondary
Radiator Hose
Figure 2.1
□ Install supplied hose back on connector and secure with supplied
hose clamp (Figure 2.2).
