Vogels Autogas Systems VGI Hardware Manual System Description and Installation
VGI Technical Manual 2014-01-14.pdf Pagina 13 van 44

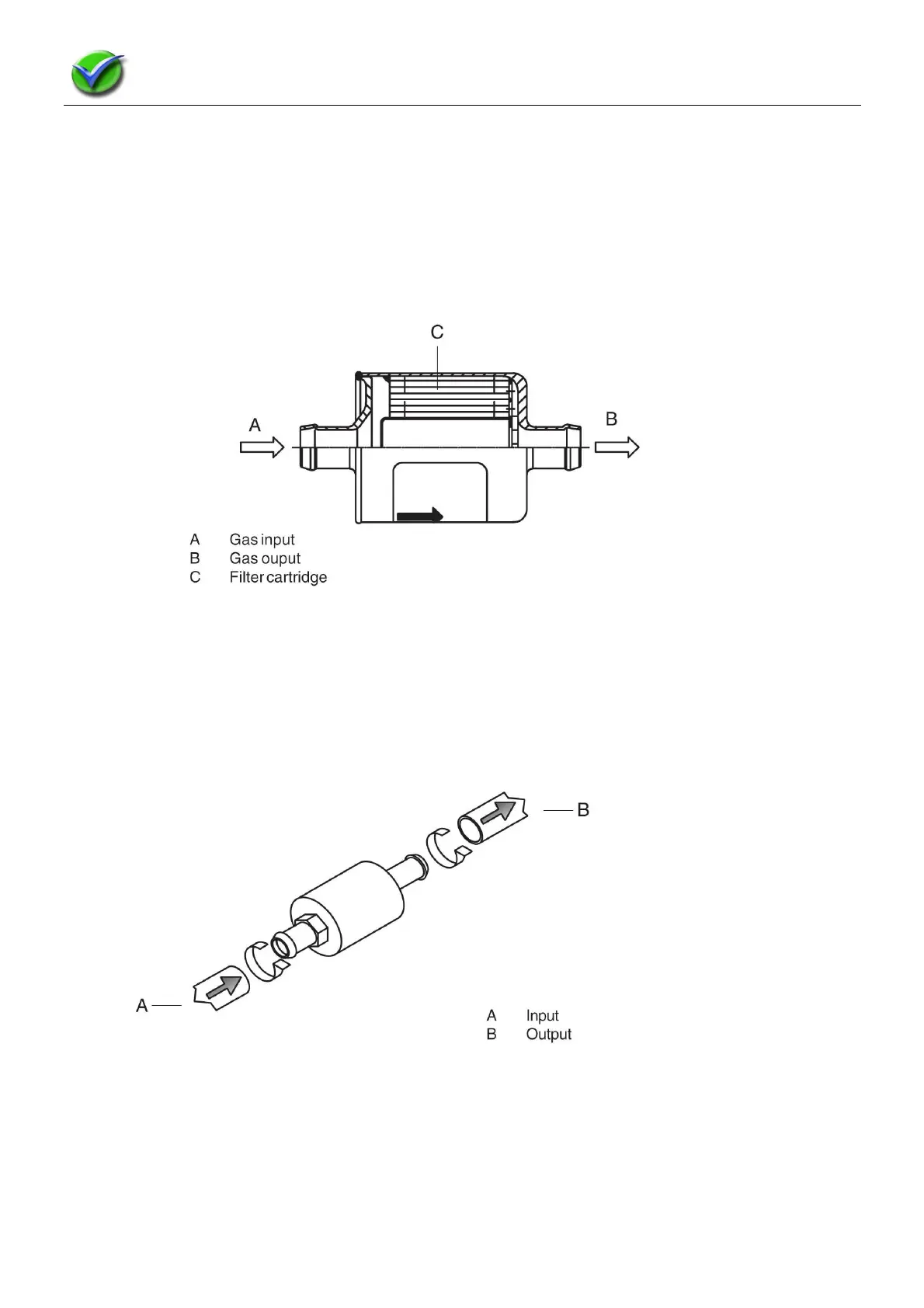

1.7 Gas filter-unit
The filter has the function of filtering the LPG in the gas phase.
The input of the filter is connected to the output of the pressure reducer using
a tube with an internal diameter of 14 mm. The filter contains a replaceable filtering
Technical specifications:
Weight 75 g.
Degree of filtration 10 micron
Maximum working pressure 3 bar
LPG type approval N°: E13 67R-010278 class. 2A
Filter-unit installation instructions:
- Place the filter unit as close as possible to the injector rail and not too far from the reducer. The maximum
length of the tube between reducer and filter is 70 cm, while that between the filter unit and injector rail is
25 cm.
- Avoid the gas tubes passing close to thermal conduction points, in order to protect them and not heat the
gas.
- Fit the gas tubes as shown in the figure. The 14-mm tube A on the input coming from the reducer and the
14 mm tube B on the output that brings the gas to the rail.
