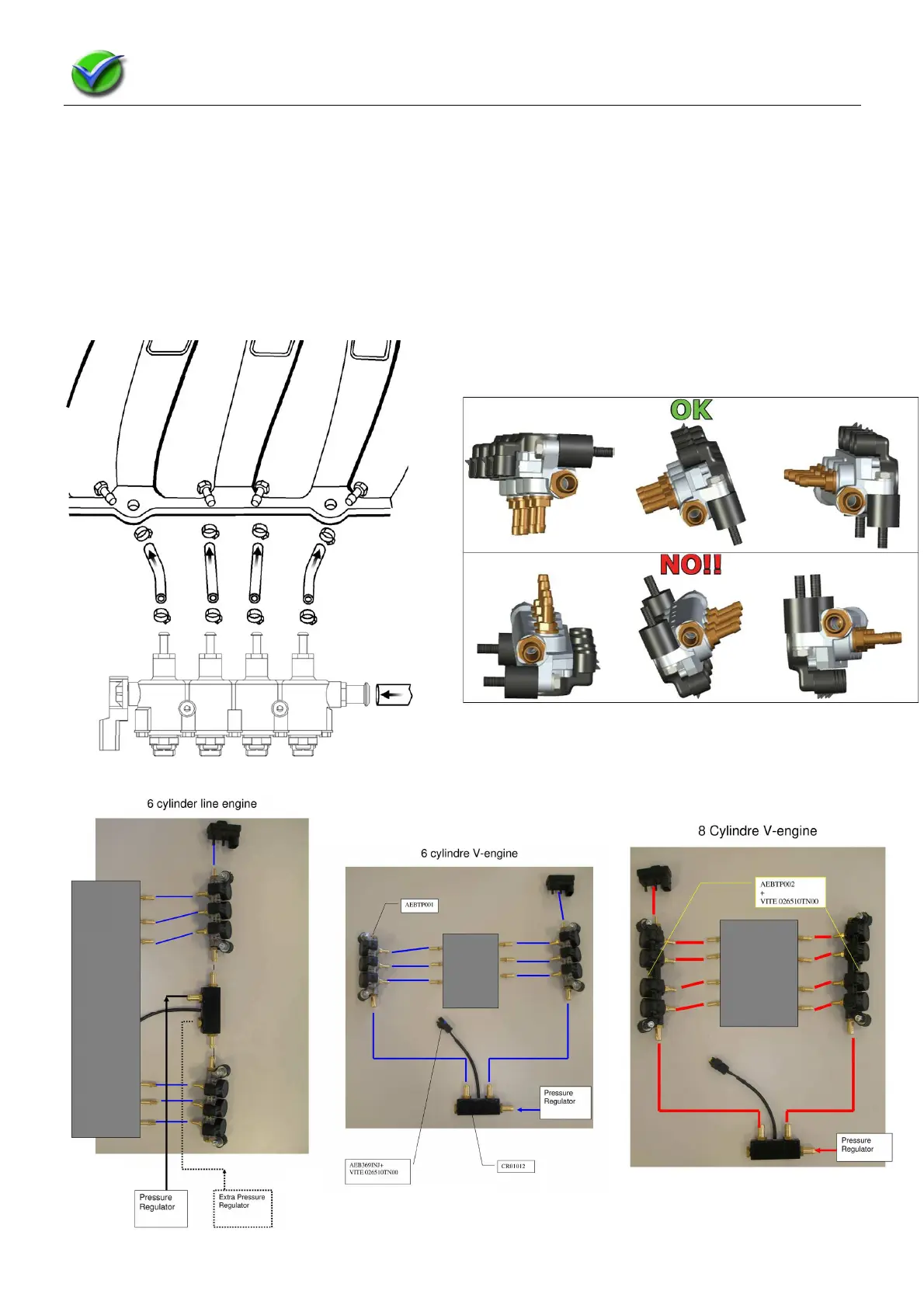

1.8.4 Injectorrail installation instructions
Follow the procedures for installing the injector rail, as shown below:
- The injector rail has two 6mm holes for fitting the unit using the support provided in the kit.
- It will be necessary to place the tubes with the 6-mm interior Ø on the injector output to connect the injector
with the nozzle placed on the inlet manifold. (see Chapter that describes the nozzle)
- There is a tight correlation between the location of the injector rail and the nozzles.
- Place the injector rail close to the inlet manifold in such a way that the connection tubes can be as short as
possible and so that the nozzles can easily be connected without kinks.
- The injector rail/manifold tubes must be no longer than 18 cm.
- The difference in length between the tubes must not be greater than 4 cm.
