Vogels Autogas Systems VGI Hardware Manual System Description and Installation
VGI Technical Manual 2014-01-14.pdf Pagina 21 van 44
1.12.1 ECU Landi CSI01 – ECU-Multipoint
The Landi ECU is available in two versions:
- Landi Omegas 3 – 4 Cylinder
- Landi Omegas 5 – 8 Cilinder
They both look the same but internally they are not.
The pin-out and the electrical harnesses are different.
So it is important to identify the ECU by the sticker
well before connection.

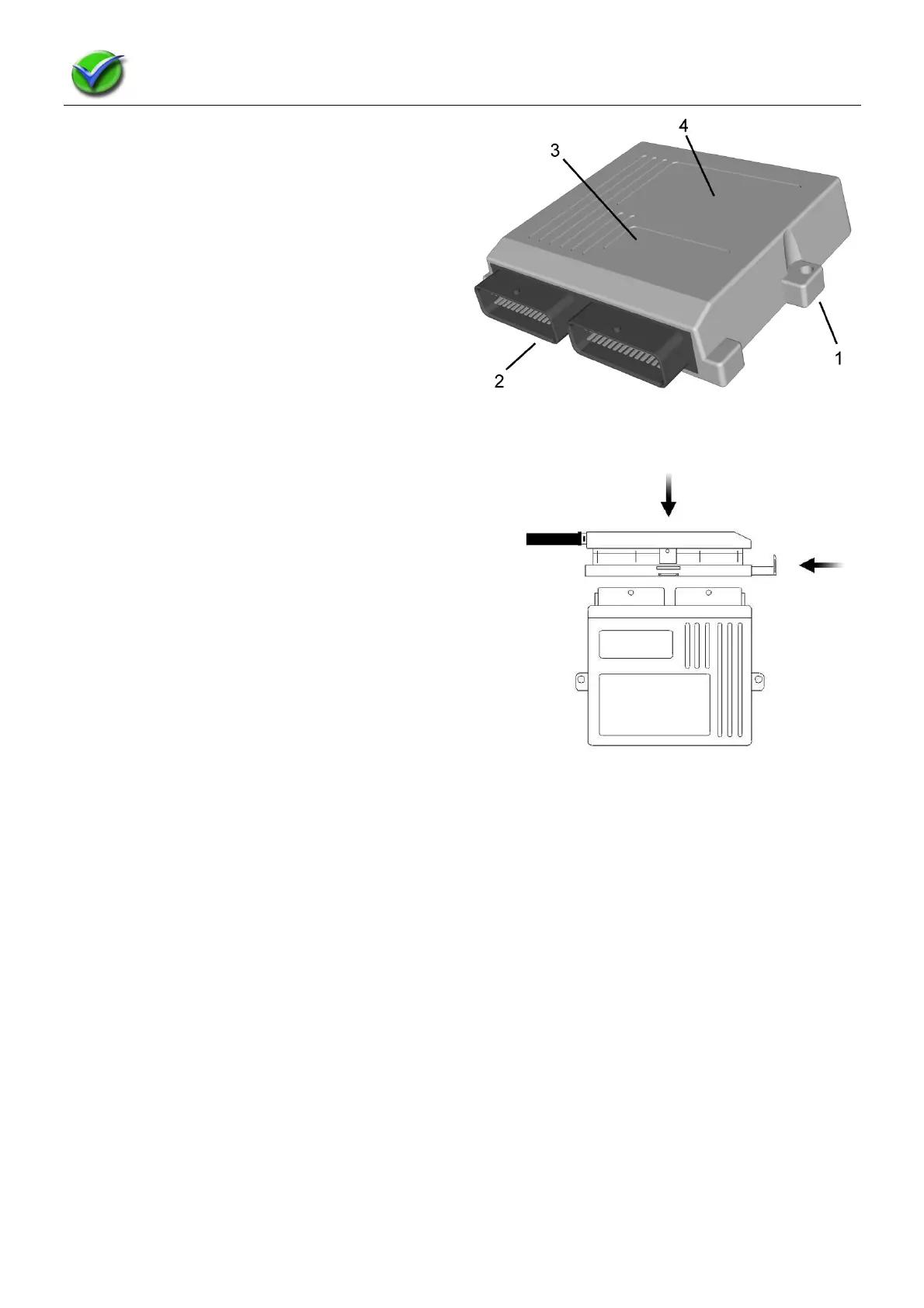

Legend:
1. Fixation points
2. Connector (56 pin)
3. Homologation identification
4. ECU Type identification
Specifications:
Product name:………….…Landi Omegas 4 cyl. LRE184
Supply voltage: ................................................. 8 to 16 V
Max. current:............................................................ 15 A
Flash memory:......................................................128 kb
Processor speed PLL: .........................................50 Mhz
Analogue input signals:......................................12 items
Digital input signals:........................................... 10 items
Injector outputs:……………………………………3 up to 4
Coil drivers:............................................................ 2 pcs.
Homologation LPG No.:E3 67R-016002 or E3 67R-016017
Specifications:
Product name:………….…Landi Omegas 8 cyl. LRE188
Supply voltage: ................................................. 8 to 16 V
Max. current:............................................................ 15 A
Flash memory:......................................................128 kb
Processor speed PLL: .........................................50 Mhz
Analogue input signals:......................................12 items
Digital input signals:........................................... 10 items
Injector outputs:……………………………………5 up to 8
Coil drivers:............................................................ 2 pcs.
Homologation LPG No.:E3 67R-016002 or E3 67R-016017
