Universal Injection cutting wiring: SA144U
All wires of the SA144U wiring are free and without connectors. This wiring is used on cars where other types of
connectors are used on the injectors or where it is impossible to access the injectors’ original connectors.

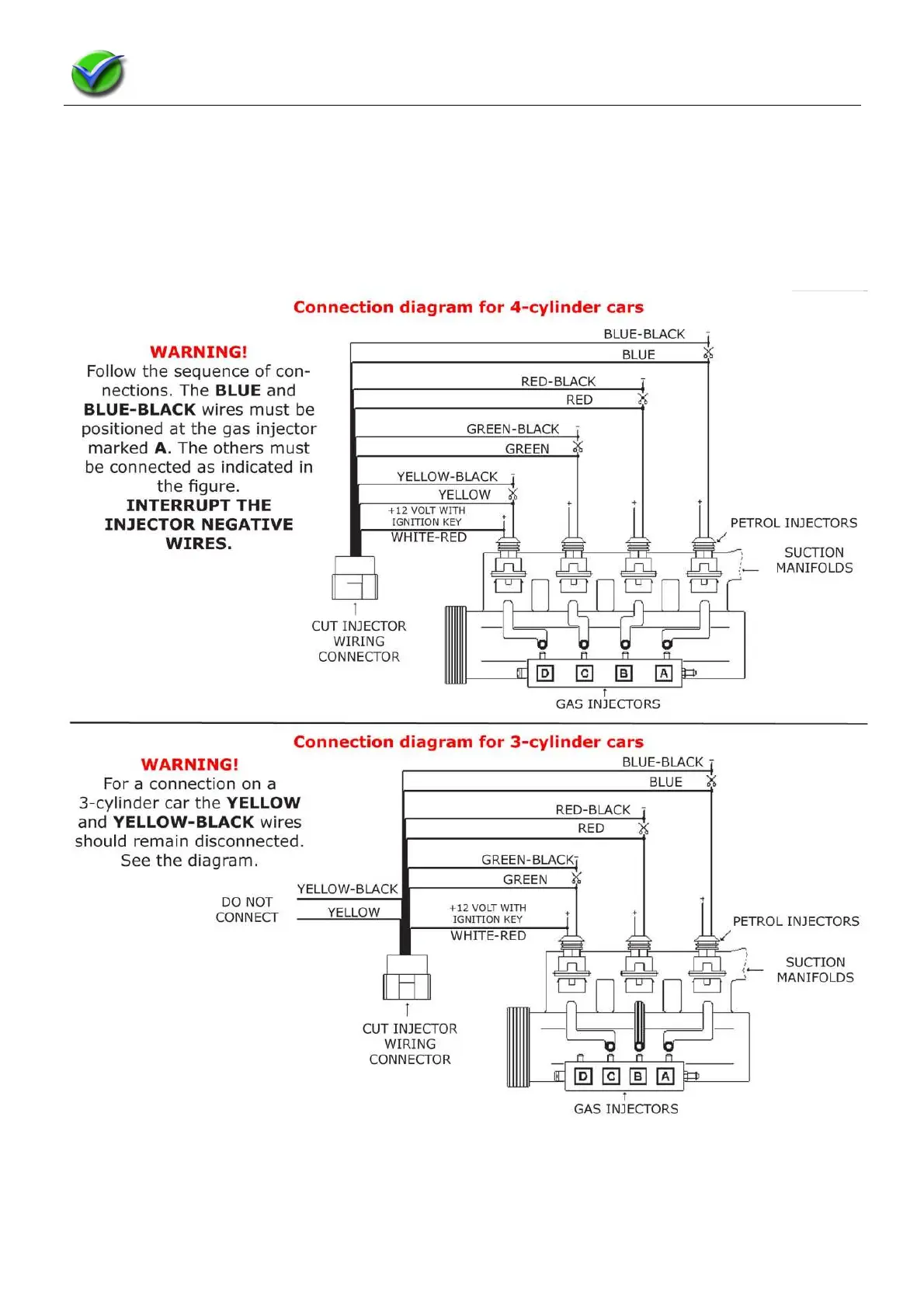

To install this type of wiring, cut the negative wires of the petrol injectors in the order indicated in the figure.
The connection direction is very important. The BLACK striped wires should be installed towards the petrol ECU
and the others toward the injectors.
The WHITE-RED wire should be connected to any of the injector positives.
