Void Digidrive V2 - Rear Panel Overview

Digidrive V2
User Manual
11

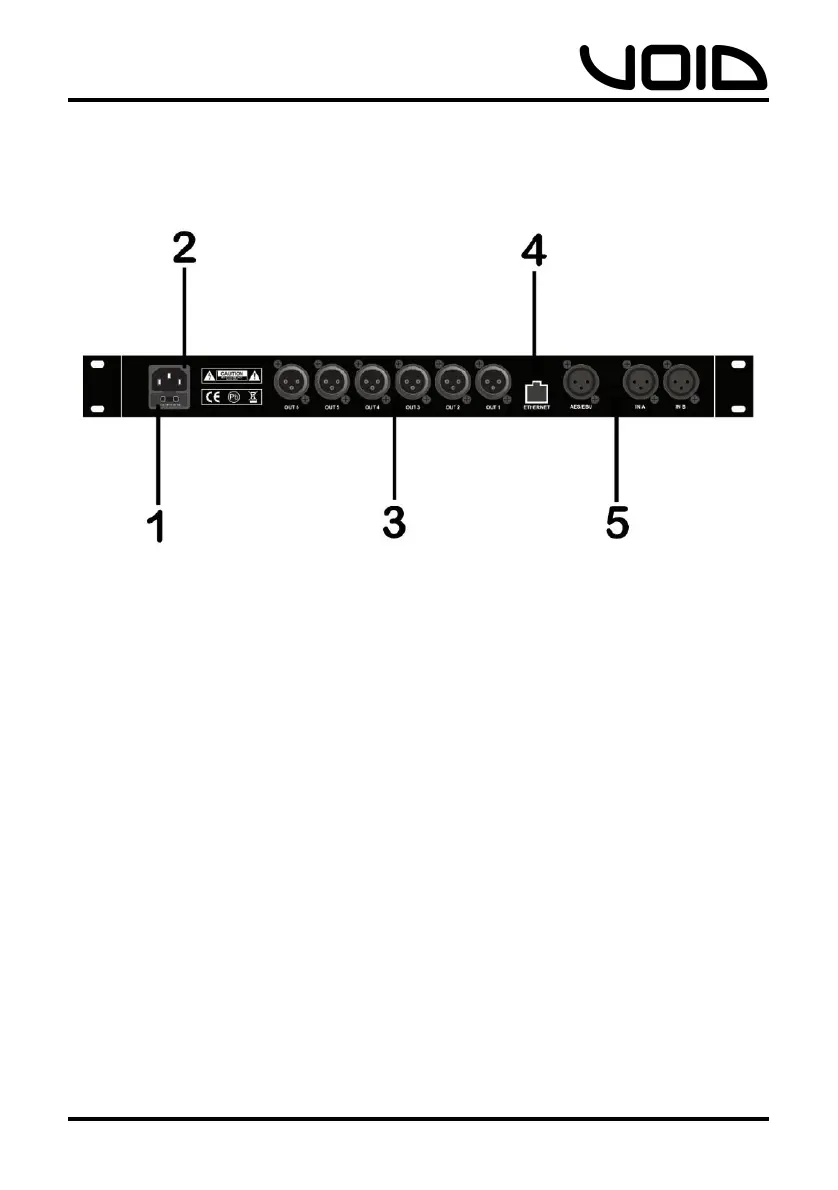

4.0……………………………………………………….…………...Rear Panel
1. Main Fuse – T315 mA–250V.
2. Power Input – connects via a standard IEC socket.
3. XLR Output – Standard female XLR socket: pin 1: ground
(shield), pin 2: +ve, pin 3: -ve
4. Network Socket –
5. XLR Input – Standard male XLR socket: pin 1: ground (shield),
pin 2: +ve, pin 3: -ve
