Digidrive V2
User Manual
3
x Once all connections are made, you are ready to begin
the set up of the system.
NOTE: For this example, the routing used will be for a 3-way system,
using only the Digidrive V2 unit.
0.2...………………………………………………………..Step-by-step
1. Power up the sending device (mixing desk), then power
up the Digidrive V2, make sure the power amplifiers are
off before powering either of the other units up.
2. On the Digidrive V2, press the Menu button until the
routing page is displayed, and scroll through with the
control wheel until routing is Stereo 3-way, then press
Exit to return to the main page.
3. Now, use the CH Select +/- buttons to scroll through to
Out 1. Use Page – to get to the Link page, ensure link is
On (if channel display is Out 12 then link is on already).
Repeat this for Outputs 3/4 and 5/6.

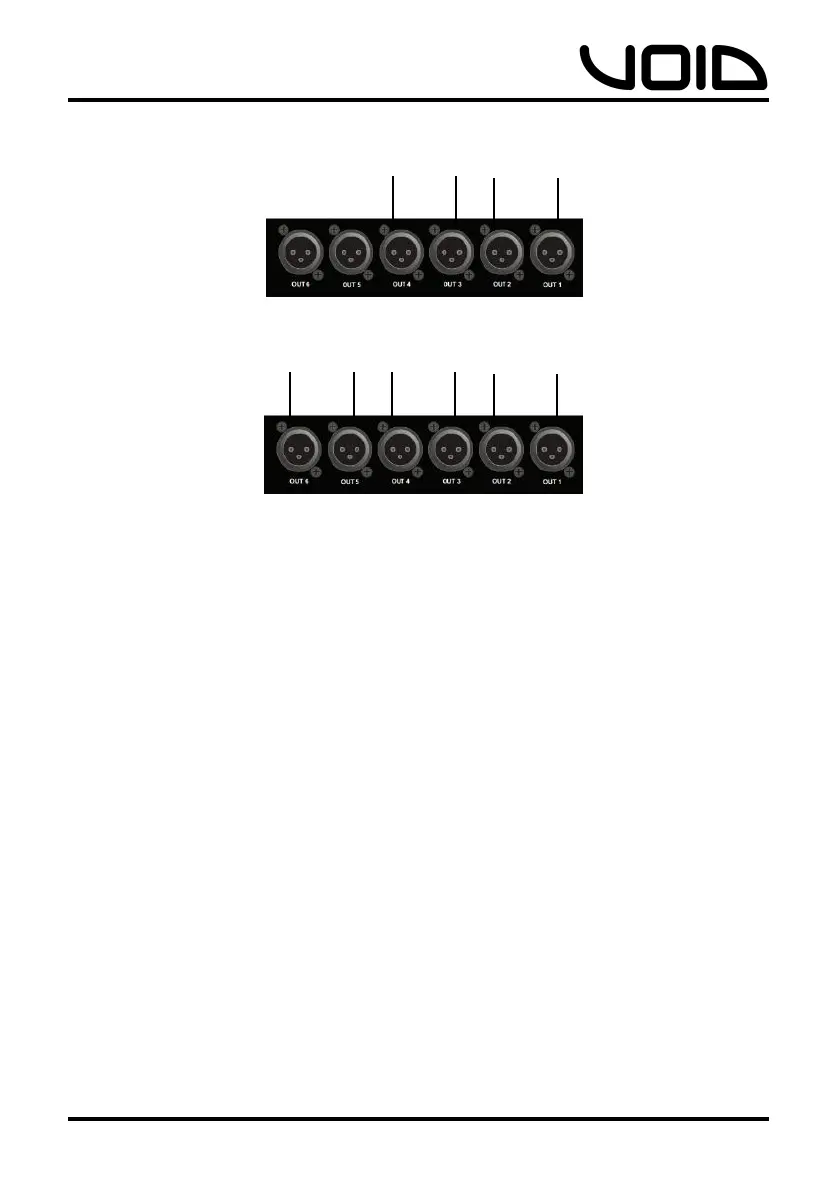

LF
to amp
MHF
to amp
2-way
LF
to amp
MF
to amp
HF
to amp
3-way
