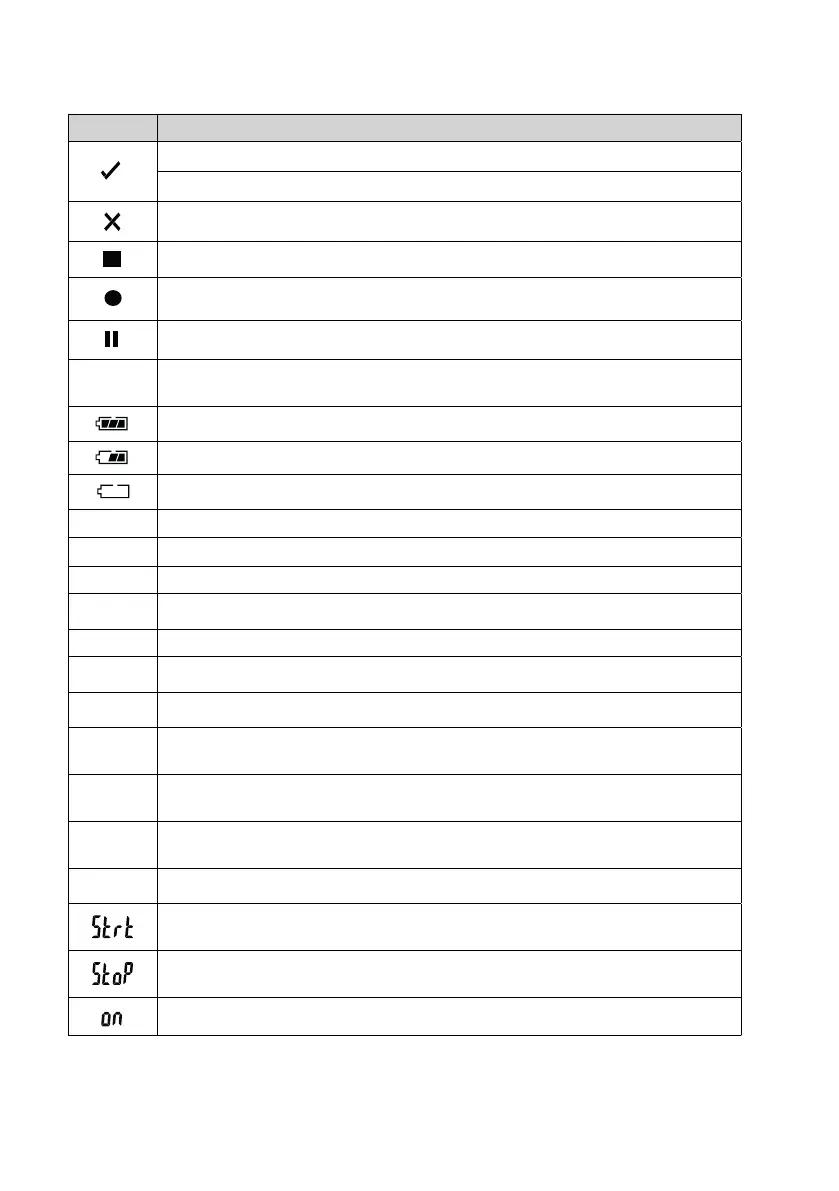

Symbols in the LC display
Symbol Meaning
Alarmindicator:Measuredvaluesarewithinthelimitsdenedduringconguration.
No high/low alarm is set.
Alarmindicator:Measuredvaluesareexceedingthelimitsdenedduringconguration.
Recording has been stopped.
Recording in progress.
Recording has been paused.
P
Deviceisreadytorecord:Deviceiscongured,andrecordingnotstartedyet.Itwilldisappear
once the data logger records.
Battery symbol: Full battery capacity
Batterysymbol:Sufcientbatterycapacity
Battery symbol: Low battery capacity, replace the battery
mA Unit for current
V Unit for voltage
ID Logger ID
MAX/MIN Maximum/minimum measurement
USB Connected to computer.
USB PDF Connected to computer and generating PDF report.
PAUSE Indicates that the limit alarm pause function is enabled.
MODE
START
Indicates that a start mode has been chosen. It will be shown before recording starts.
MODE
STOP
Indicates that a stop mode has been chosen. It will be shown before recording ends.
TIME
START
Indicates remaining time before start of recording.
TIME STOP Indicates remaining time until end of recording.
Ready to start recording by holding button ENTER (7) for few seconds.
(Select“STARTUPONKEYPRESS”as“RECORDSTARTCONDITION”duringconguration.)
Recording can be stopped by holding button ENTER (7) for few seconds.
(Select“STOPBUTTON”as“STOPSTYLE”duringconguration.)
/
Ready to activate limit pause function by holding button ENTER (7) for few seconds.
