Mode 13
Function Logs data immediately and circularly.
Should you wish an additional stop mode you choose:
Logging stops after PDF report generation.
Setting Select“CIRCULARLOGGING”as“RECORDSTARTCONDITION”.
Select“AFTERPDFCREATED”as“STOPSTYLE”.
• Formode1to13,youcanapplyanadditionalfunctiontodelaytheloggingstarttime.Enterminute(s)valuein
“STARTDELAYMINUTES”duringcongurationsetting.
b) LC display indication
• Some settings do not have any indication on LC display. In order to review settings, please refer to "g) Review
congurationsettings"onpage44.
• If there is not any display indicator or once the data logger starts/stops recording, the latest measurement is shown
on display.
DL-260A: Current (mA) DL-250V: Voltage (V)
mA
V

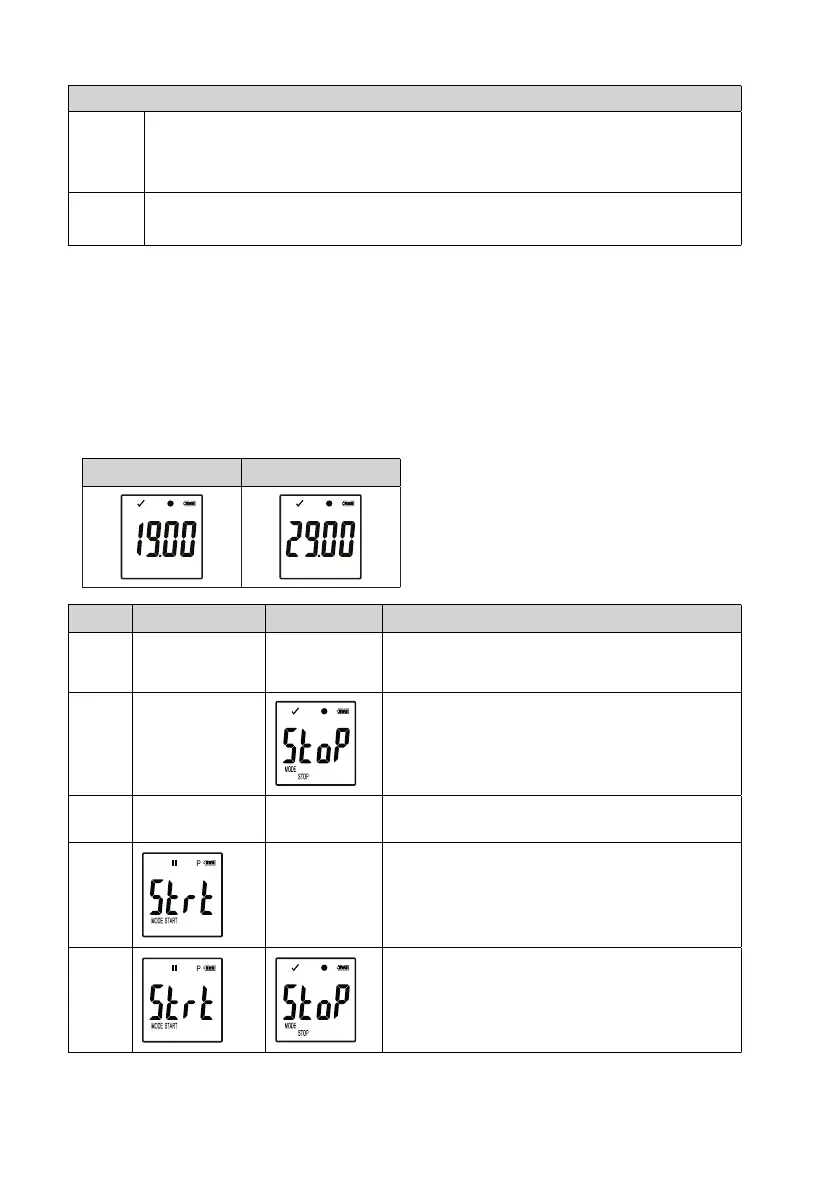

Mode Start mode Stop mode Remarks
1 no display indicator not applicable When memory is full, red LED control light (2)isashing.
2 no display indicator
Stop recording by holding button ENTER (7) pressed for
few seconds.
3 no display indicator
no display
indicator
4
not applicable
When memory is full, red LED control light (2)isashing.
Start recording by holding button ENTER (7) pressed for
few seconds.
5
Start and stop recording by holding button ENTER (7)
pressed for few seconds.
