50 Hrs
250 Hrs
500 Hrs
1000 Hrs
2000 Hrs
12 months

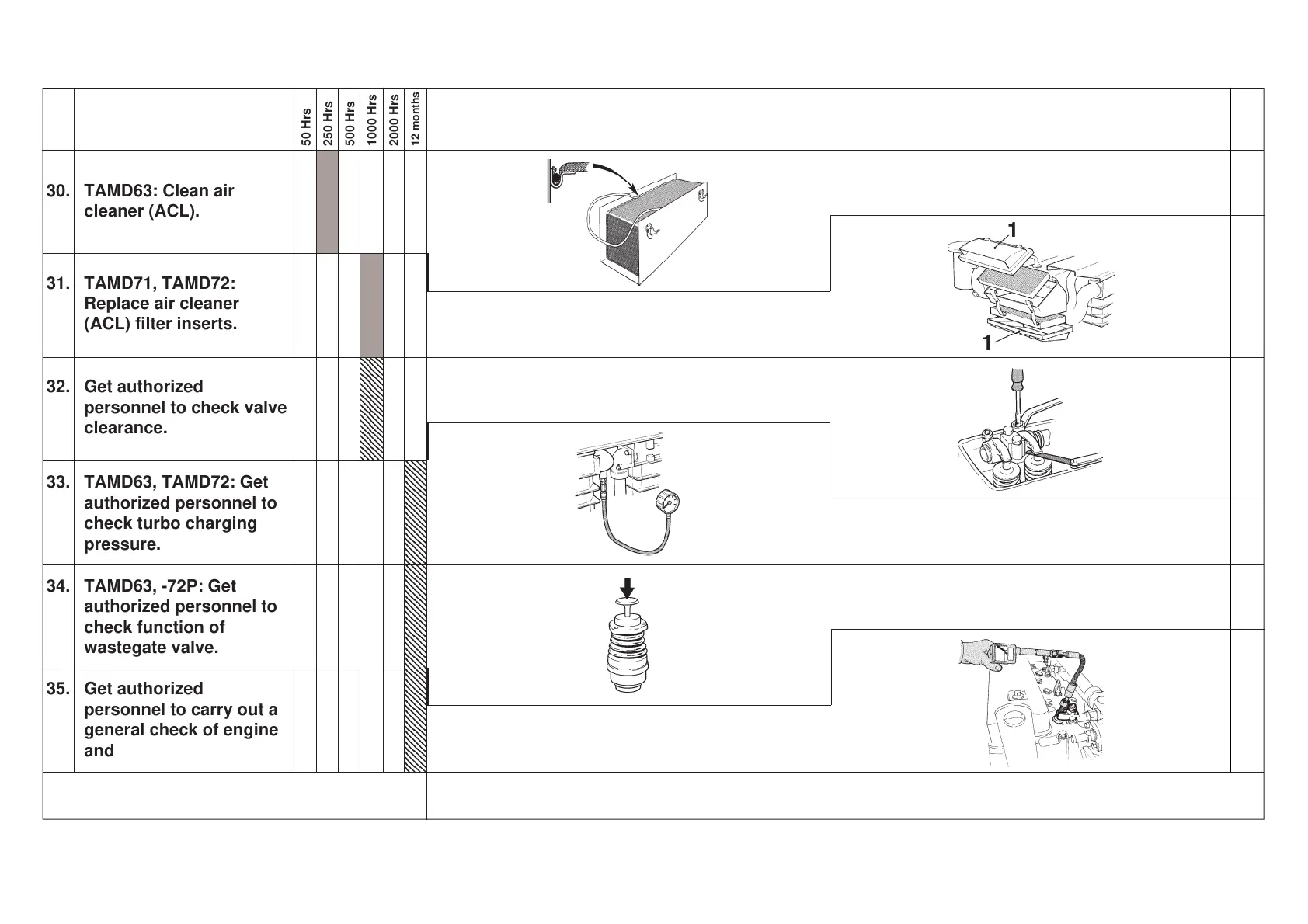

30. TAMD63: Clean air
cleaner (ACL).
31. TAMD71, TAMD72:
Replace air cleaner
(ACL) filter inserts.
32. Get authorized
personnel to check valve
clearance.
33. TAMD63, TAMD72: Get
authorized personnel to
check turbo charging
pressure.
34. TAMD63, -72P: Get
authorized personnel to
check function of
wastegate valve.
35. Get authorized
personnel to carry out a
general check of engine
and fittings.
●
●
●*
●
●
●
* Note: Special recommendations apply for new or reconditioned
engines. See instructions “Running-in” on page 4.
–
–
42
–
–
–
Wash the insert in clean diesel. Squeeze it out and place it in the filter housing. Fix
the insert by pushing the O-ring down into the groove around the outer edge of the
insert.
NOTE! Replace the filter insert if it is damaged.
Undo the clamps (x 6) for the covers (1). Remove the covers and replace the filter
inserts. Check that the rubber hose against the turbocharger is undamaged and
that the new filters are scrupulously clean. Reinstall components.
Get authorized service personnel to check/adjust the valve clearance. This should
be done with the engine off, be it cold or at operating temperature!
Get authorized service personnel to check the turbocharger’s charging pressure.
Get authorized service personnel to check the function of the wastegate valve.
Get authorized service personnel to check the condition of the turbocharger and
carry out a general check of the engine and its fittings.
No. Action Instructions Info.
