Volvo 819 E - Page 93

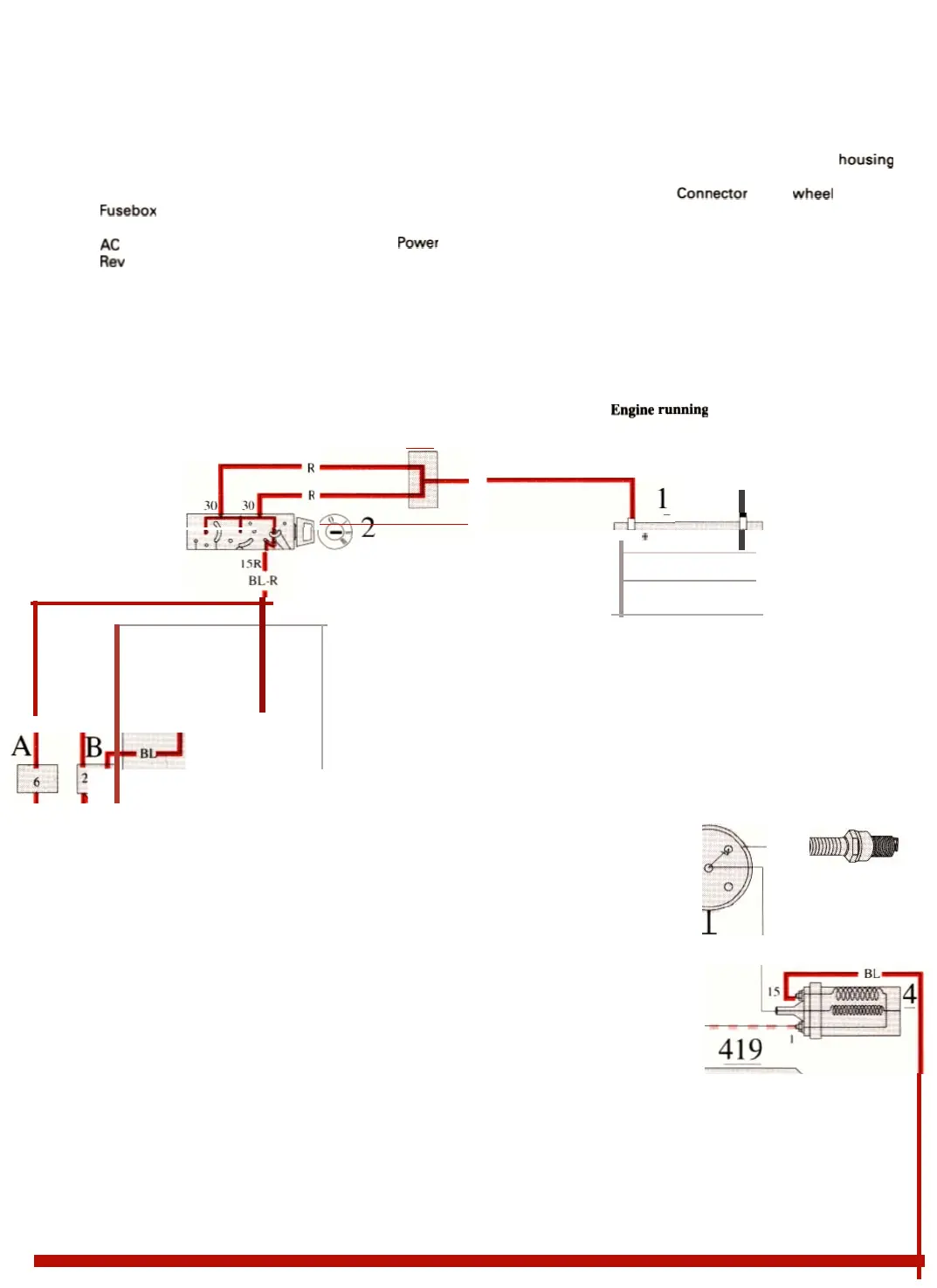

EZ-118K Ignition system
(B 230 K, B 200/230 E)
1 Battery
2
Ignition switch
4 Ignition coil
5 D is tributor
6 Spark plugs
11 Fuseboll:
29 Posit iv e terminal board
81 AJ:, pressure switch
86 Rev counter
156 Radi ator fan motor
200 AC compressor solenoid
202 Cli mate control
218 Knock sensor
224 Radia tor fan thermostat
260 Control unit
267 Test
connector
271 fuel cut-off so l eno id
272 Microswitch
273 Temperature sensor
293 Idling compensation relay
419 Power stage
A Connector, RH A- post
B Connector , LH A- post
C Connector at LH wheel housing
o Ground termina l on intake manifold
E Connector at LH wheel housing
Engine running
29
~~ ,..".,, ' - 2 --1 [&- R --- : -=- '_ ---,j-,
•
I ,
