1 Ground cable junction box (-)
2
Fuse box (+)
3 Junction box, lanterns
Before auxiliary equipment such as navigation equip-
ment, auxiliary lighting, radio, echo sounders etc. are
installed,
their total power consumption must be accu-
rately calculated in order to ensure that boat charging
capacity is sufficient.

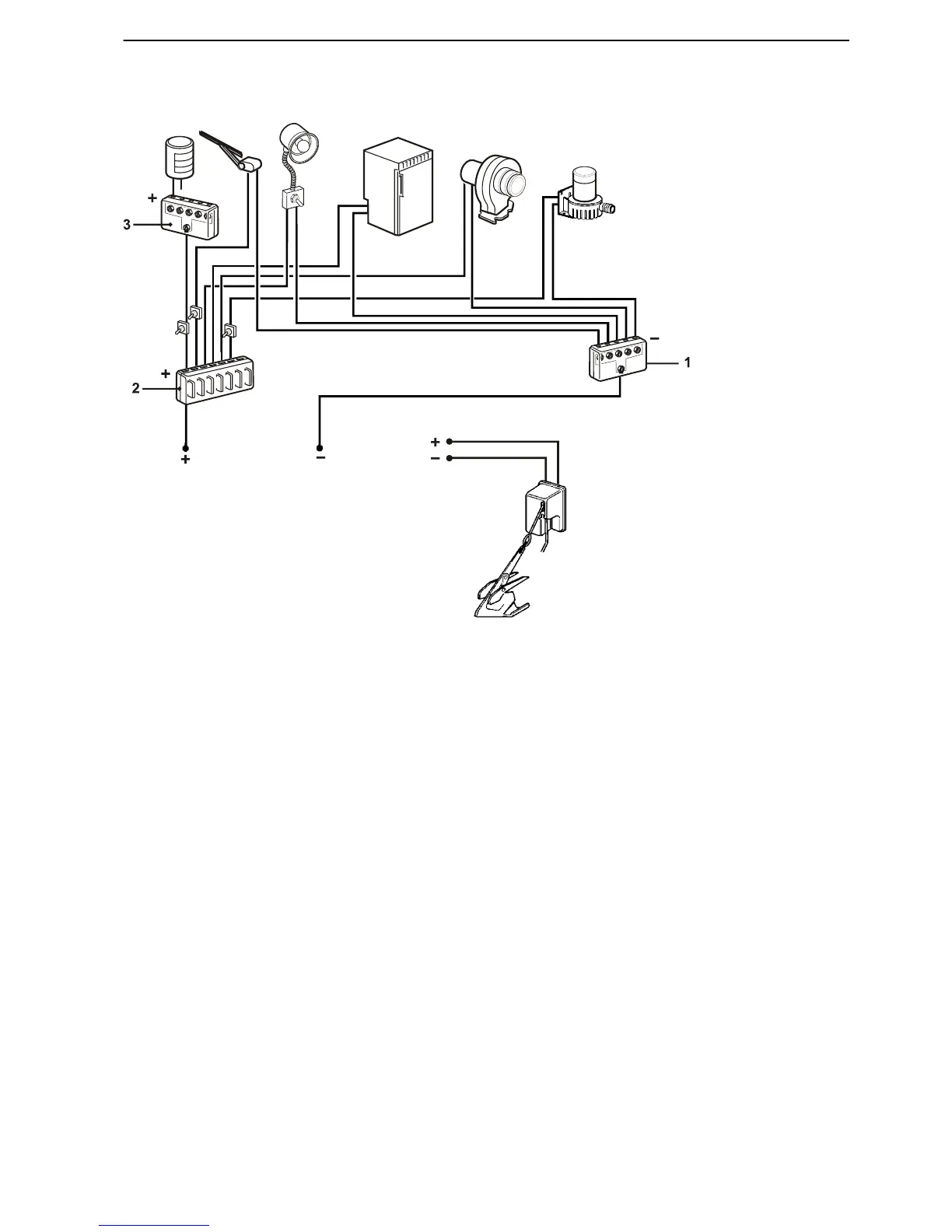

The above schematic shows how equipment may be
installed in the boat. Fasten the cables to brackets at
short intervals and mark the cables at fuse boxes and
junction boxes (1-3) with each cable consumer such
as communication radio, fridge, lanterns etc.
Install the electrical system control panel close to the
instrument panel, in an easily accessible place that
is not exposed to moisture.
If a 230 V system is installed, this part of the electrical
panel must be clearly marked.
NOTICE! Make sure that all components used are
suitable for marine environments. Spray all electrical
equipment with water repellent spray.
Installation, Electrical System
