Calculate the supply cable area
Note
that power supply cable length and area (A+, A-)
depends on the number of accessories connected.
•

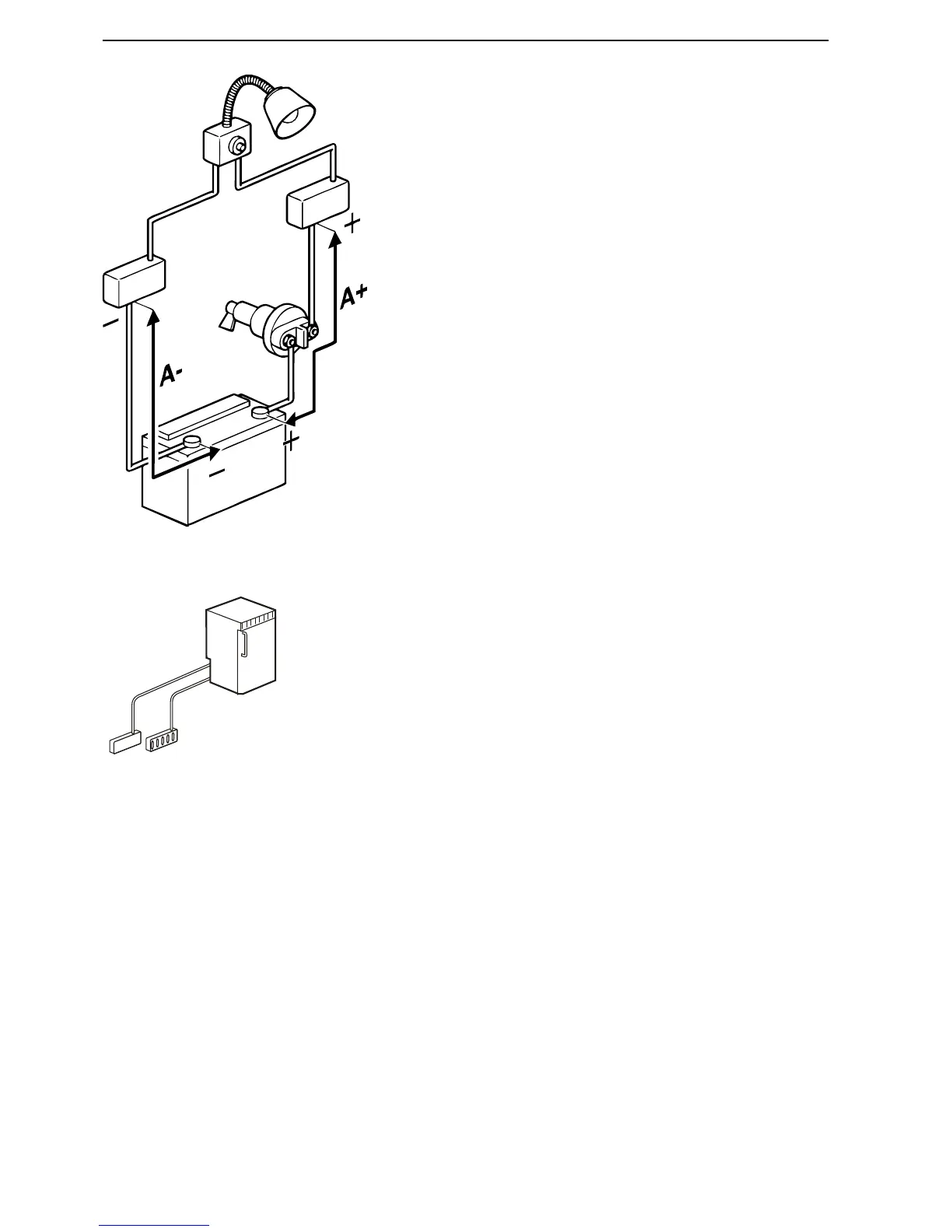

Add all the accessories (power consumers).
•
Measure the total length of the supply cable (A+,
A-) on the positive (+) and negative (-) sides.
•
Refer to the chart Calculating cable
area page 139. The chart shows supply cable area.
Calculate cable area for power consumers
•
Measure the distance from the terminal block to the
accessory.
•
Multiply the distance by two.
•
Then calculate the cable area according to the chart
Calculating cable area page 139.
P0004724
+
-
P0004723
Installation, Electrical System
