2 Place

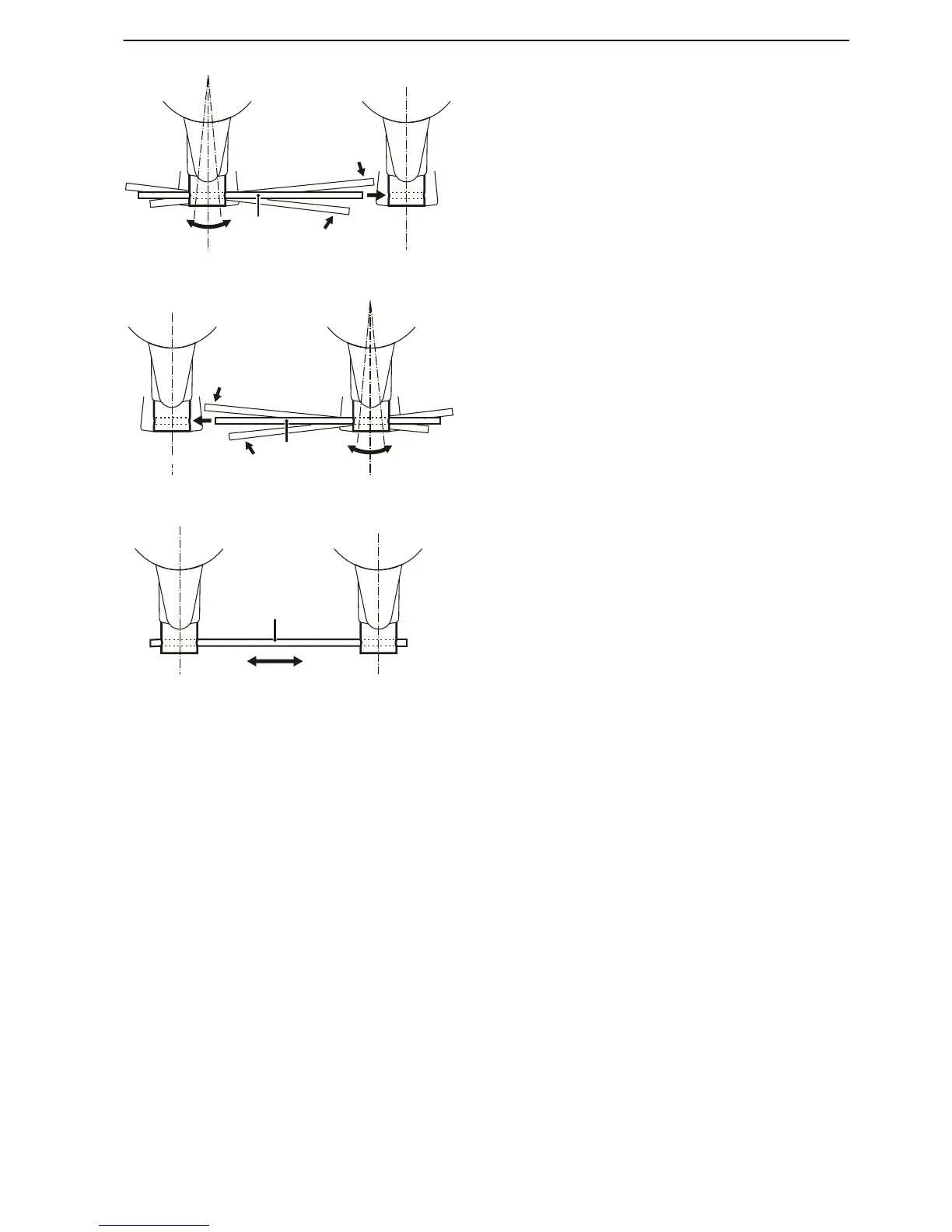

the aluminum rod (2) in the port-side cylin-
der and use the rod as an aligning tool as illus-
trated.
Carefully move the drive until the rod aligns with
the hole in the starboard-side cylinder.
3 Then move the rod (2) to the starboard cylinder
and repeat the above items until the rod aligns
with the port cylinder hole.
4 When the rod (2) can be easily slid through the
cylinder holes, the drive legs are parallel to one
another and the keel.
NOTICE! The cylinders must remain in place, i.e.
all the way in to the bottom of the exhaust outlets.
Calibration and Settings, IPS Calibration
47704162 10-2014 © AB VOLVO PENTA 145
