Drive leg calibration, triple and quadruple
installations
The procedure is the same as above, but with more
steps. The steps are performed as illustrated.

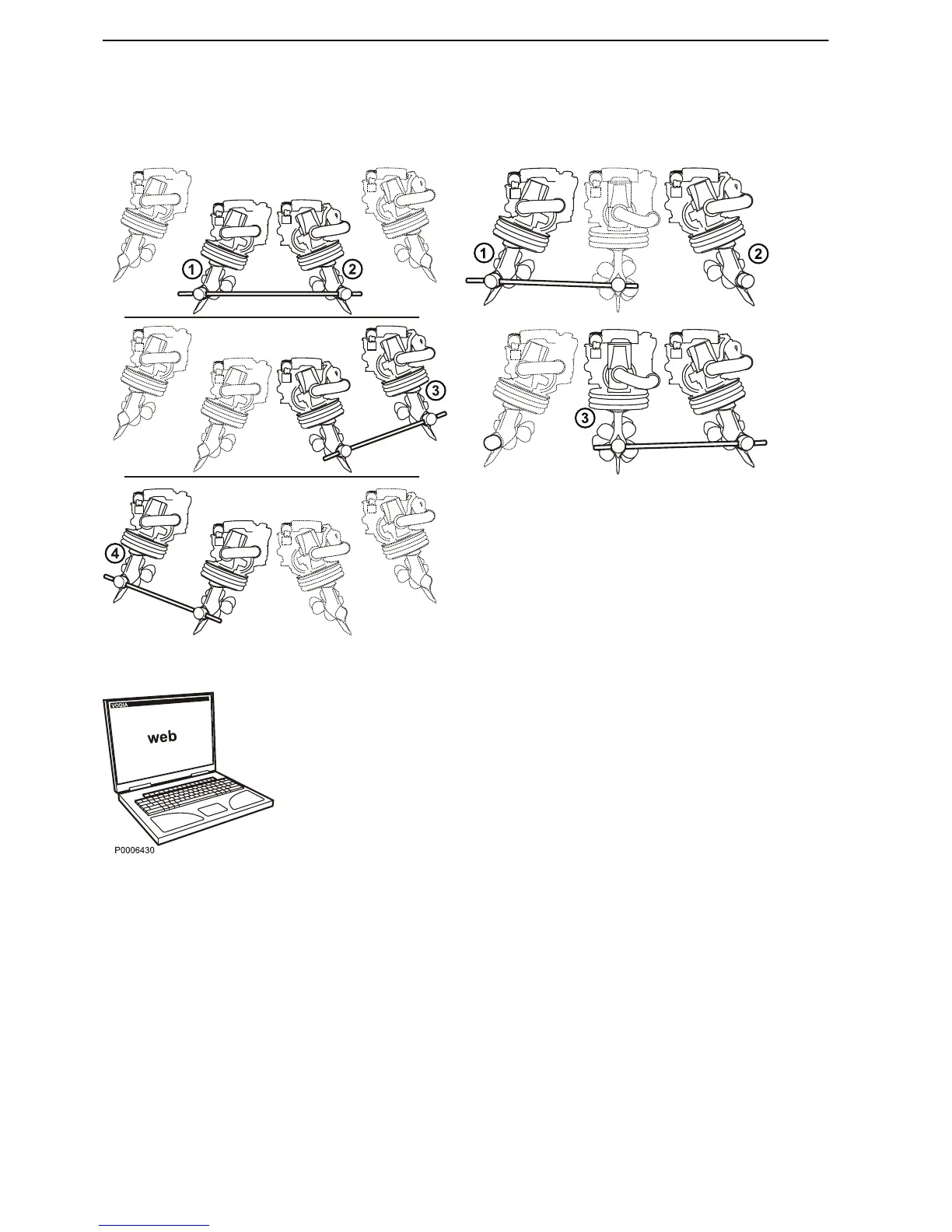

Triple installation
Detailed drive leg calibration instructions can be found
in the VODIA tool.
Reporting calibration to the VODIA website
Connect
to the VODIA website and report Volvo Penta
IPS calibration after the procedure is completed. If the
calibration has been reported, no new calibration is
required after future updates.
Steering angle, setting
It is the responsibility of the boat builder to select the
most suitable steering settings for the particular type
of boat, consulted by a Volvo Penta representative.
The setting must be evaluated by means of sea trials
for
the first boat manufactured of a new model. Settings
are made using the VODIA tool.
There are four settings:
Maximum
Provides typically the smallest turning radius. This set-
ting is used especially for boats with a sporting capa-
bility and which can handle an aggressive angle of
heel.
Medium high (default)
The most common setting, with a good ability of utiliz-
ing IPS unit maneuverability.
Calibration and Settings, IPS Calibration
