Premolded Hull Inserts and Hull
Mold Plugs
Hull

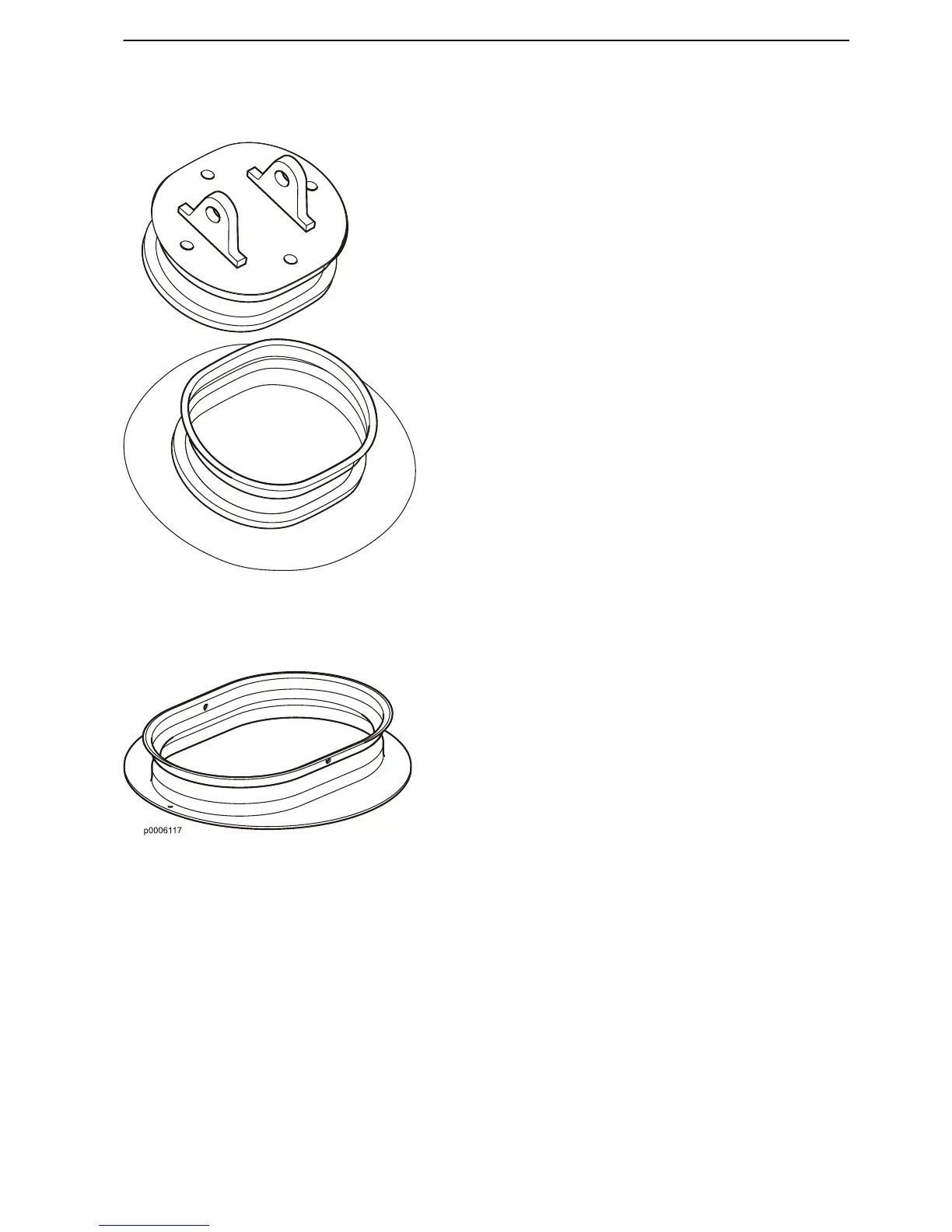

mold plugs (1) are recommended. Hull penetration
inserts (2) for finished molded hulls may be necessary
in some cases for technical production reasons. When
using hull molding plugs, refer to the Placement and
Mounting of Hull Plug, Twin Installation page 63
chapter. When using hull molding inserts, refer to the
Placement and Mounting of Hull Inserts page 53
chapter.
All necessary drawings regarding the location, calcu-
lation and design of inserts, reinforcements and engine
beds are supplied by Volvo Penta.
Use the installation posters included in the engine
delivery for dimensioning requirements. Other draw-
ings are available electronically from Volvo Penta. For
further design guidelines, refer to ISO12215 Hull con-
struction and scantlings.
Placement and Mounting of Hull
Inserts
Ready-molded hull inserts are used for prototype hulls,
one-off manufacture or engine change to IPS. These
inserts are not recommended for series production.
