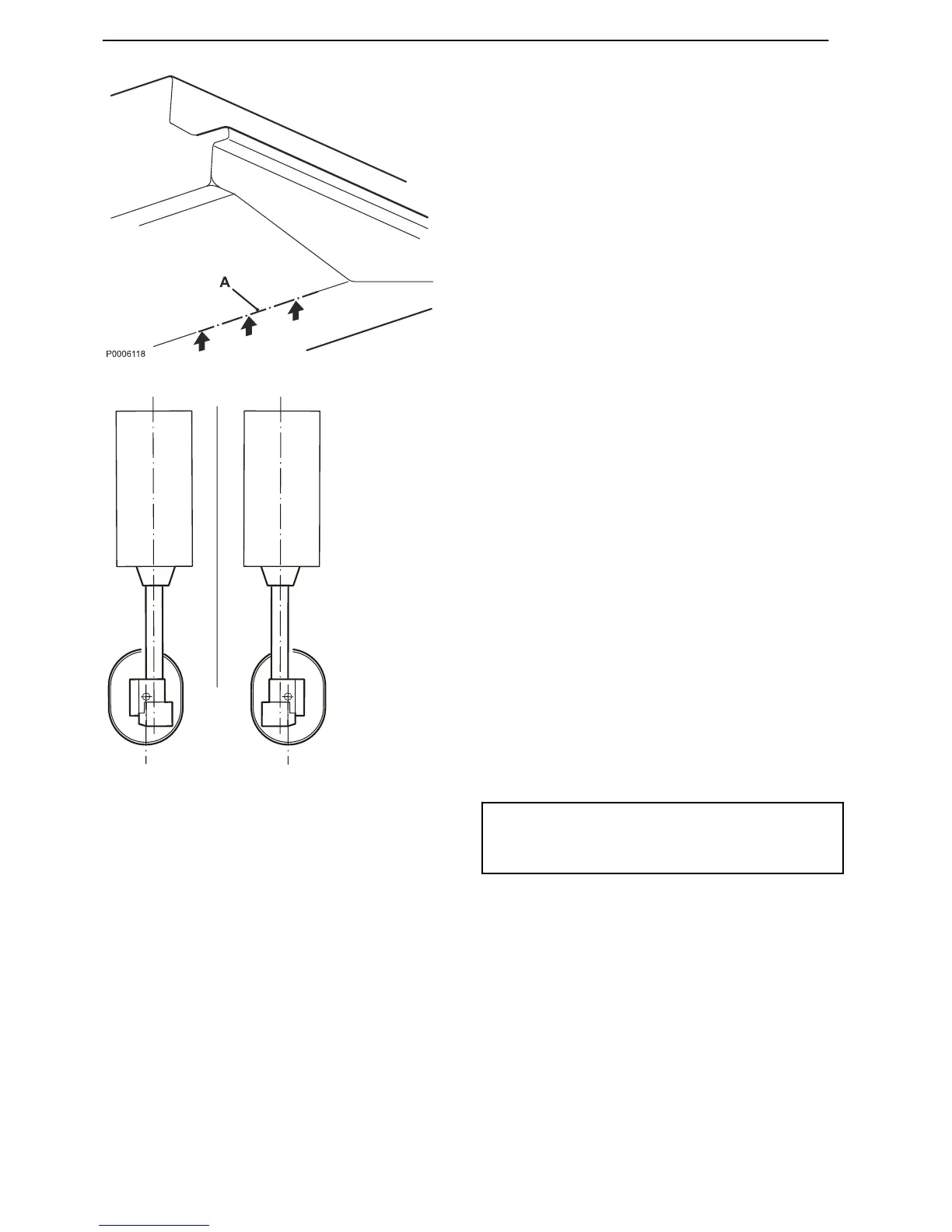

1 Begin by marking up the hull line (A) as a clear
reference line.
Engine positions
Engines
and drive units must be parallel, regardless of
drive shaft length.
NOTICE! The engine axis must be straight in order to
minimize vibrations. Deviations may not exceed ±4°.
2 Mark out a straight line parallel to the keel at dis-
tance (A) , which is governed by hull bottom angle
(α).
After installation, the distance between the upper gear
case center must be at least 1200 mm (47.2").
At
a distance of 1400 mm (55.1"), the following applies:
Distance (A) measured from the keel to the
insert
centerline at varying bottom angles.
Installation, Volvo Penta IPS
54 47704162 10-2014 © AB VOLVO PENTA
