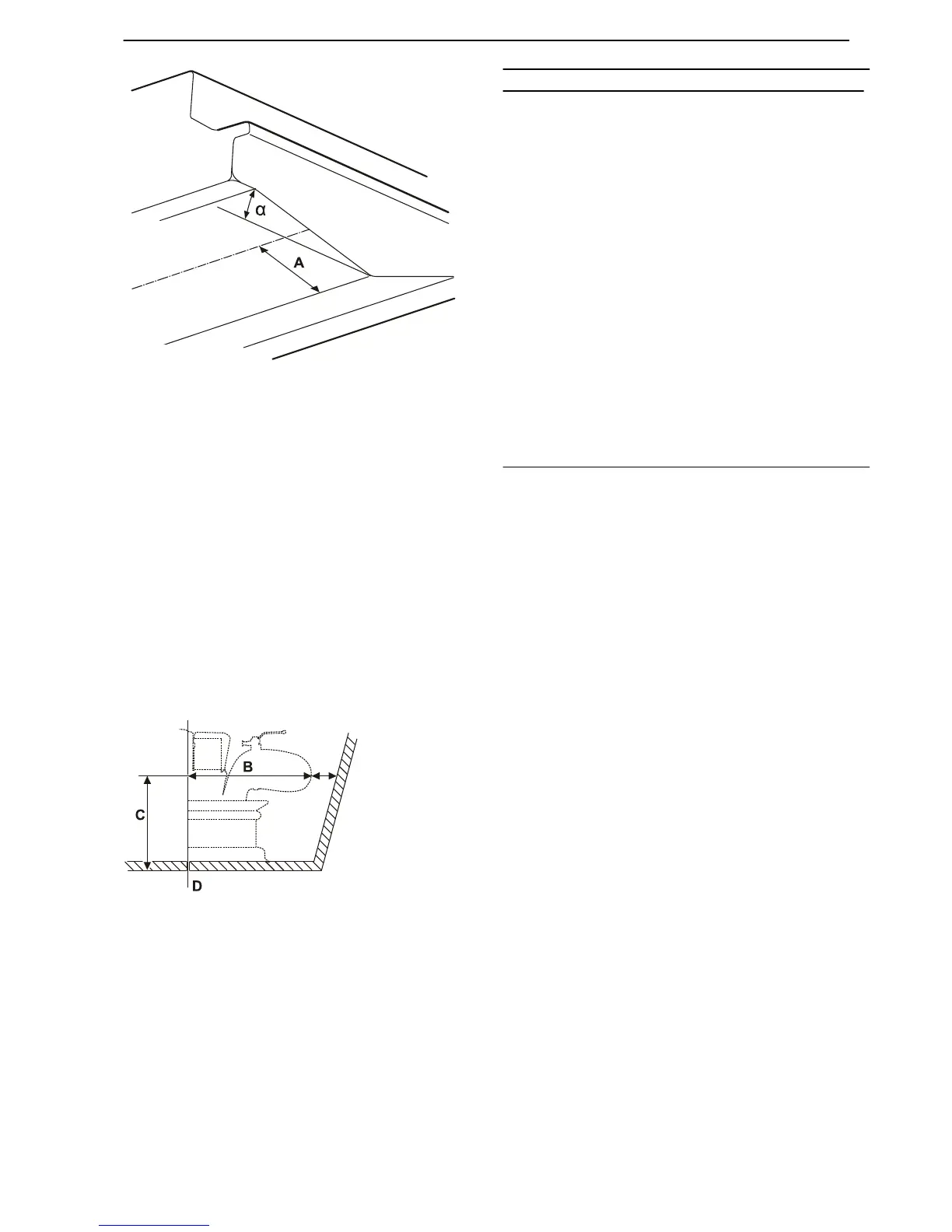

Bottom angle Distance
(α) (A) mm (in.)
5°
6°
7°
8°
9°
10°
11°
12°
13°
14°
15°
16°
17°
18°
19°
20°
21°
22°
23°
24°
739 (29.1)
747 (29.4)
756 (29.8)
765 (30.1)
774 (30.5)
784 (30.9)
794 (31.3)
804 (31.6)
814 (32.1)
825 (32.5)
836 (32.9)
847 (33.4)
859 (33.8)
871 (34.3)
883 (34.8)
896 (35.3)
909 (35.8)
923 (36.3)
937 (36.9)
951 (37.4)
The exhaust elbow must have at least 50 mm (2")
clearance (A) from the transom.
3 Mark
out a point on the line at a distance from the
transom that leaves sufficient space for the
exhaust elbow and drill a 6 mm (1/4") guide hole
(D).
NOTICE! Consider the location of reinforcements,
bulkheads etc. It may be necessary to increase the
distance to the transom to provide clearance for
the exhaust elbow.
A Min 50 mm
(2")
B 750 mm (30")
C 415 mm (16")
D Hole
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 55
