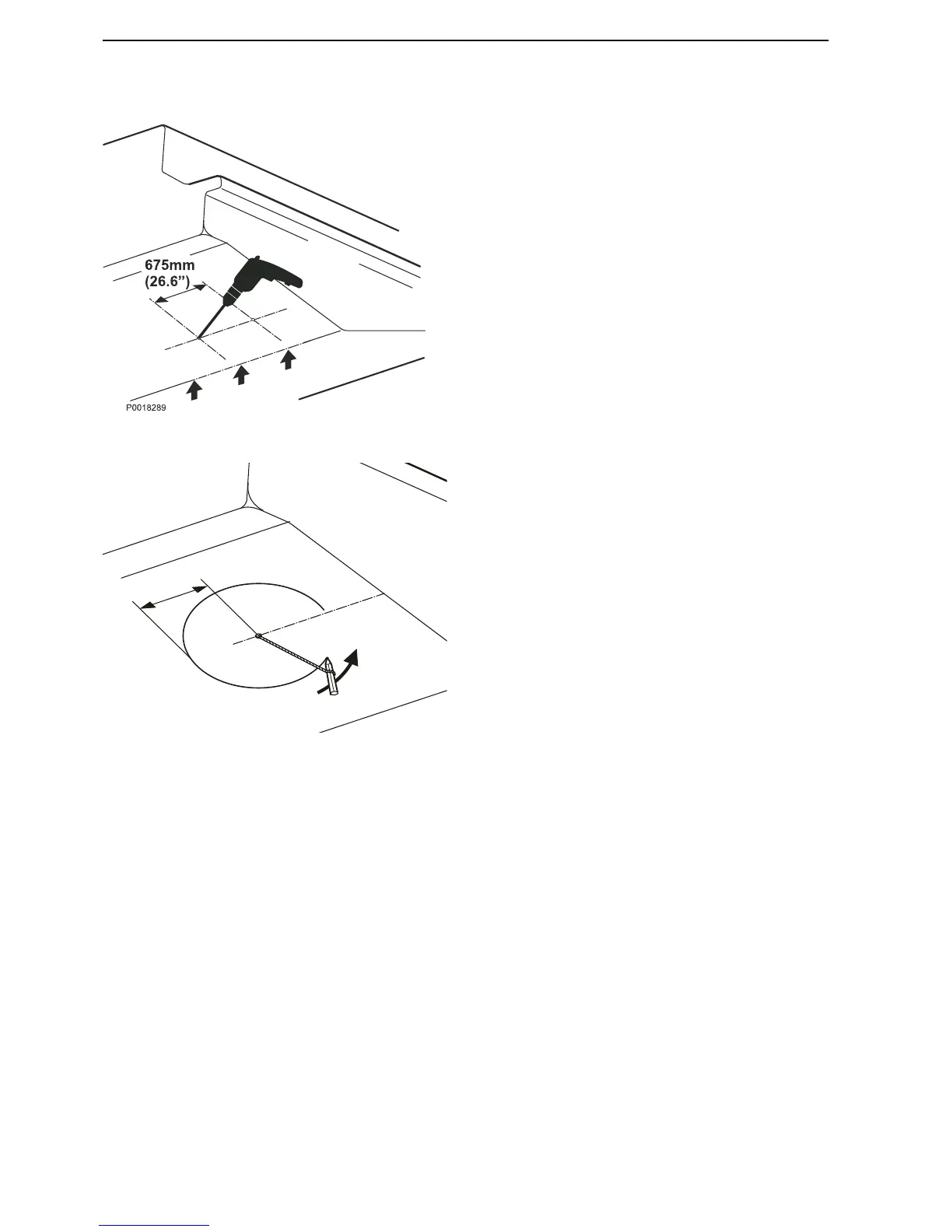

4 Drill an additional 6 mm (1/4") hole, 675 mm
(26.6")
further forward on the line running parallel
to the keel.
5 The pre-molded insert will fit in a cutout with a
diameter of: 1300 mm (51.2"). Attach a cord or
similar of length 650 mm (25.6") to the aft hole.
Attach a pen to the other end and mark out a cir-
cle.
6 Mirror the entire procedure on the opposite side
of the hull.
7 Cut out the hull insert hole around the marked
circle.
Installation, Volvo Penta IPS
56 47704162 10-2014 © AB VOLVO PENTA
