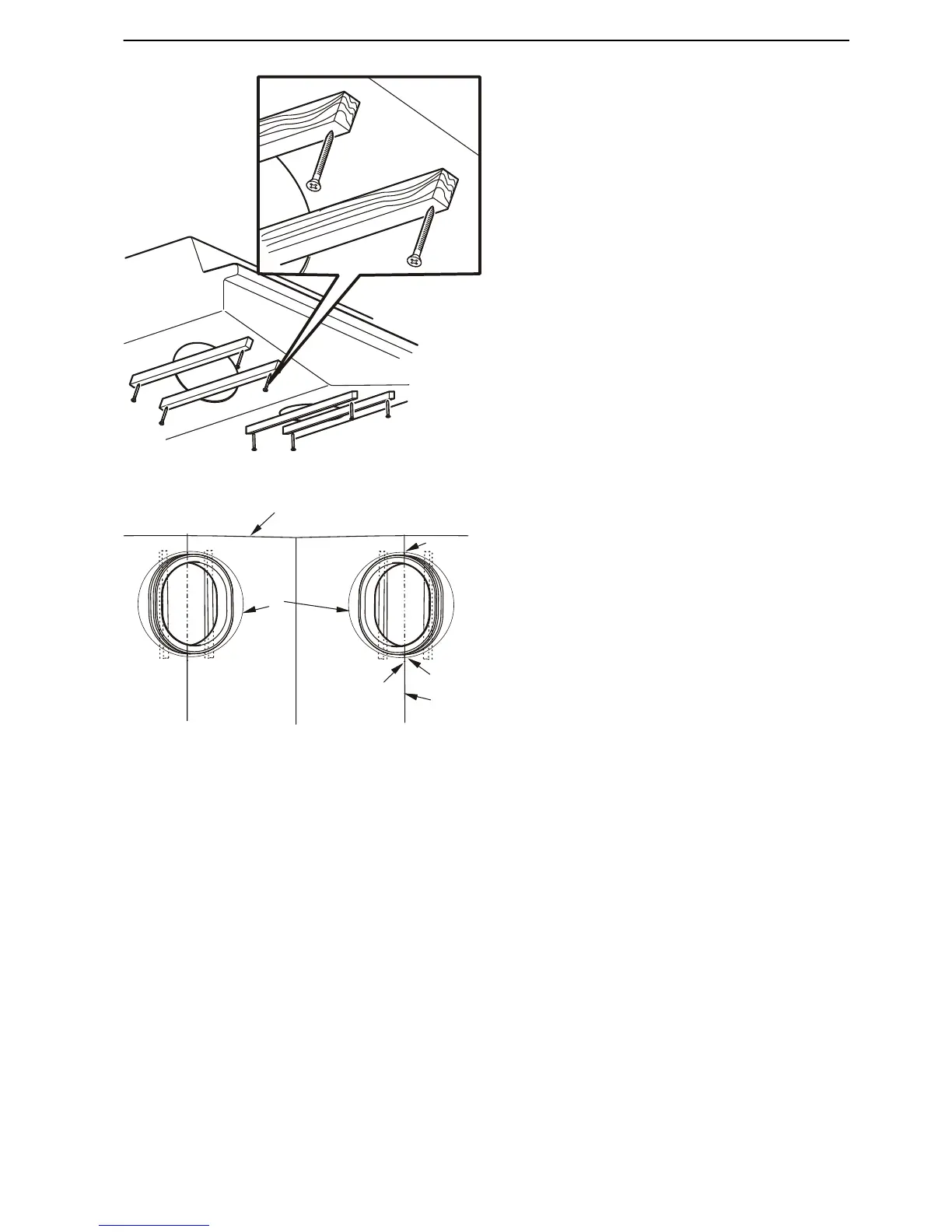

8 Install
temporary support beams from the outside
of the hull.
9 Place the inserts in the cut-outs. Align them so
that the guide hole in the insert coincides with the
guide hole in the hull and the marking line.
Temporarily install the insert in the hull.
NOTICE! Check that the inserts are correctly
aligned with the hull.
P0002348
1
2
3
4
5
6
7
p0011413
1 Transom
2
Guide hole in insert
3 Insert
4 Guide hole in hull
5 Guide hole in insert
6 Inside of hull
7 Marking line
