Placement and Mounting of Hull
Plug, Quad Installation

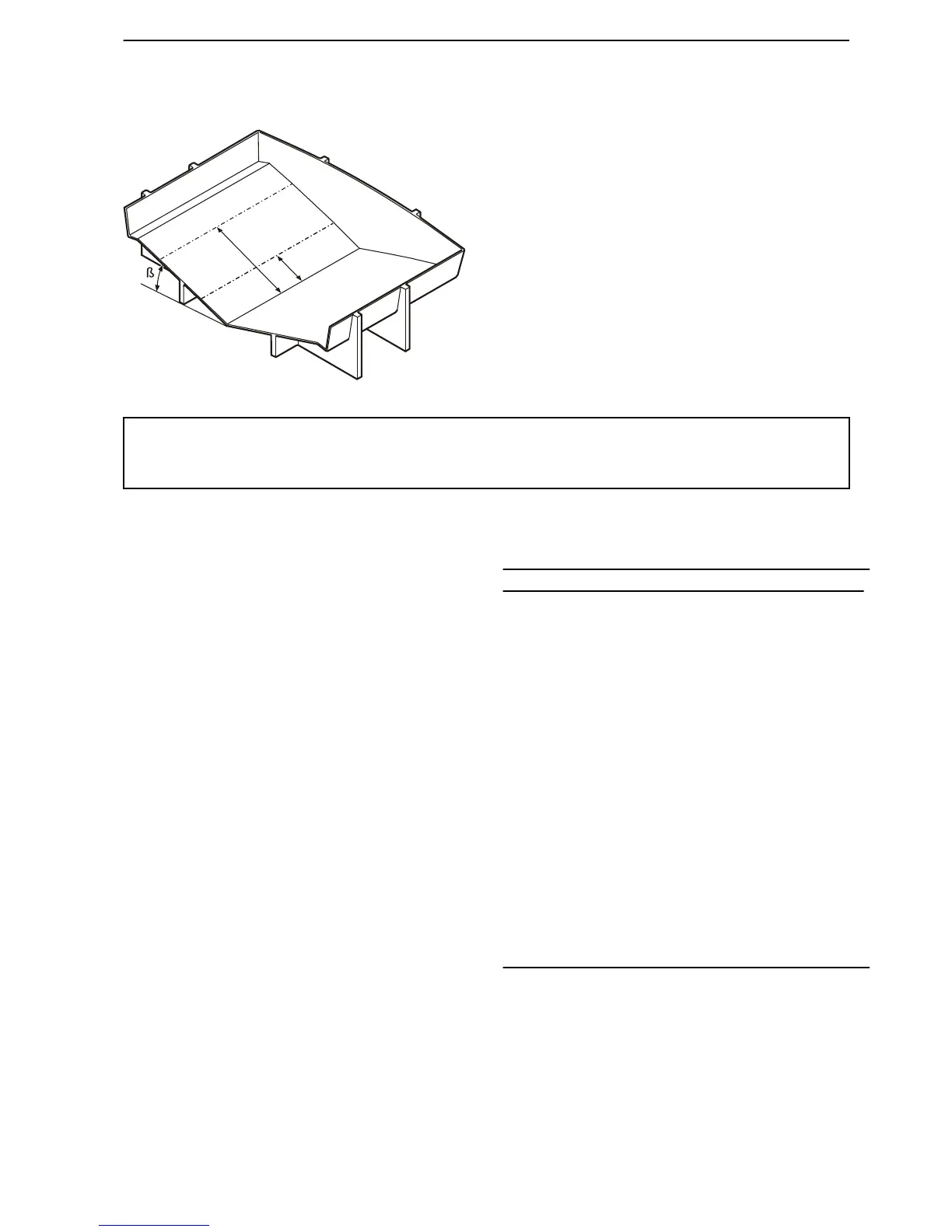

NOTICE! The illustration shows a hull mold.
Mark out a straight line parallel to the keel at the dis-
tances (A
and B) which are governed by hull bottom
angle.
After installation, the distance between the upper gear case center must be at least 1200 mm (47.2") and max
1900 mm (74.8").
At a distance of 1400 mm (55.1"), the following applies:
Distances (A and B) measured from the
keel to the plug centerline at varying bot-
tom angles.
Bottom angle Distance Distance
(β) (A) mm (in.) (B) mm (in.)
5°
6°
7°
8°
9°
10°
11°
12°
13°
14°
15°
16°
17°
18°
19°
20°
21°
22°
23°
24°
739 (29.1)
747 (29.4)
756 (29.8)
765 (30.1)
774 (30.5)
784 (30.9)
794 (31.3)
804 (31.6)
814 (32.1)
825 (32.5)
836 (32.9)
847 (33.4)
859 (33.8)
871 (34.3)
883 (34.8)
896 (35.3)
909 (35.8)
923 (36.3)
937 (36.9)
951 (37.4)
2144 (84.4)
2155 (84.8)
2167 (85.3)
2179 (85.8)
2192 (86.3)
2206 (86.8)
2220 (87.4)
2235 (88.0)
2251 (88.6)
2268 (89.3)
2285 (90.0)
2304 (90.7)
2323 (91.5)
2343 (92.2)
2364 (93.1)
2386 (93.9)
2409 (94.8)
2433 (95.8)
2458 (96.8)
2484 (97.8)
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 69
