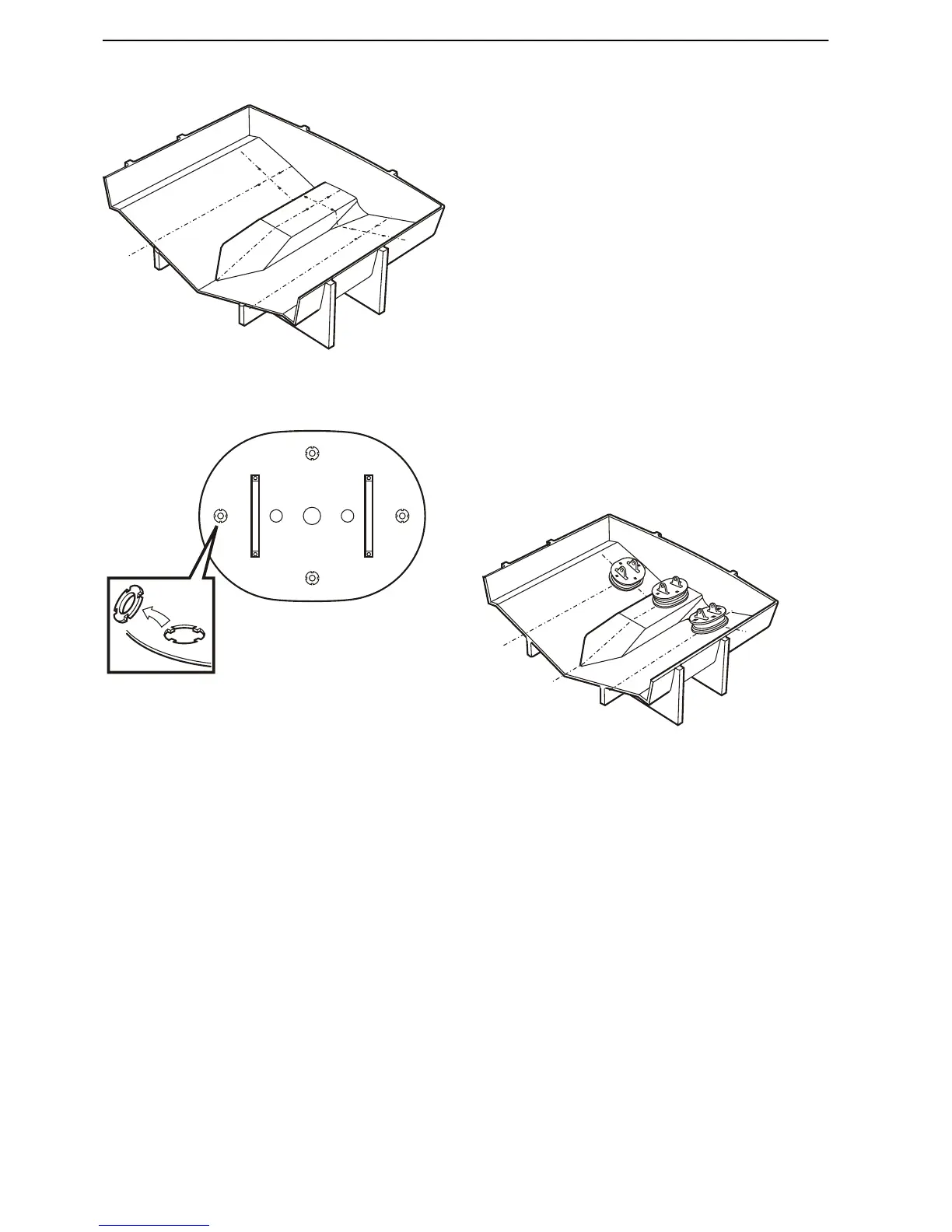

Build and locate a tunnel plug in the hull.
Mark out the plug center line and drill holes.
Build a hull tunnel plug according to the installation
drawings. Mark out a centerline for the plug. Use the
template again to drill four holes in the tunnel plug.
Install hull plugs
Place the plugs over the holes. Enlarge the template
hole
by breaking away the inner plastic parts. Place the
template on the plug and drill 20 mm (0.79") holes.
Attach the plugs with four screws.
Installation, Volvo Penta IPS
68 47704162 10-2014 © AB VOLVO PENTA
