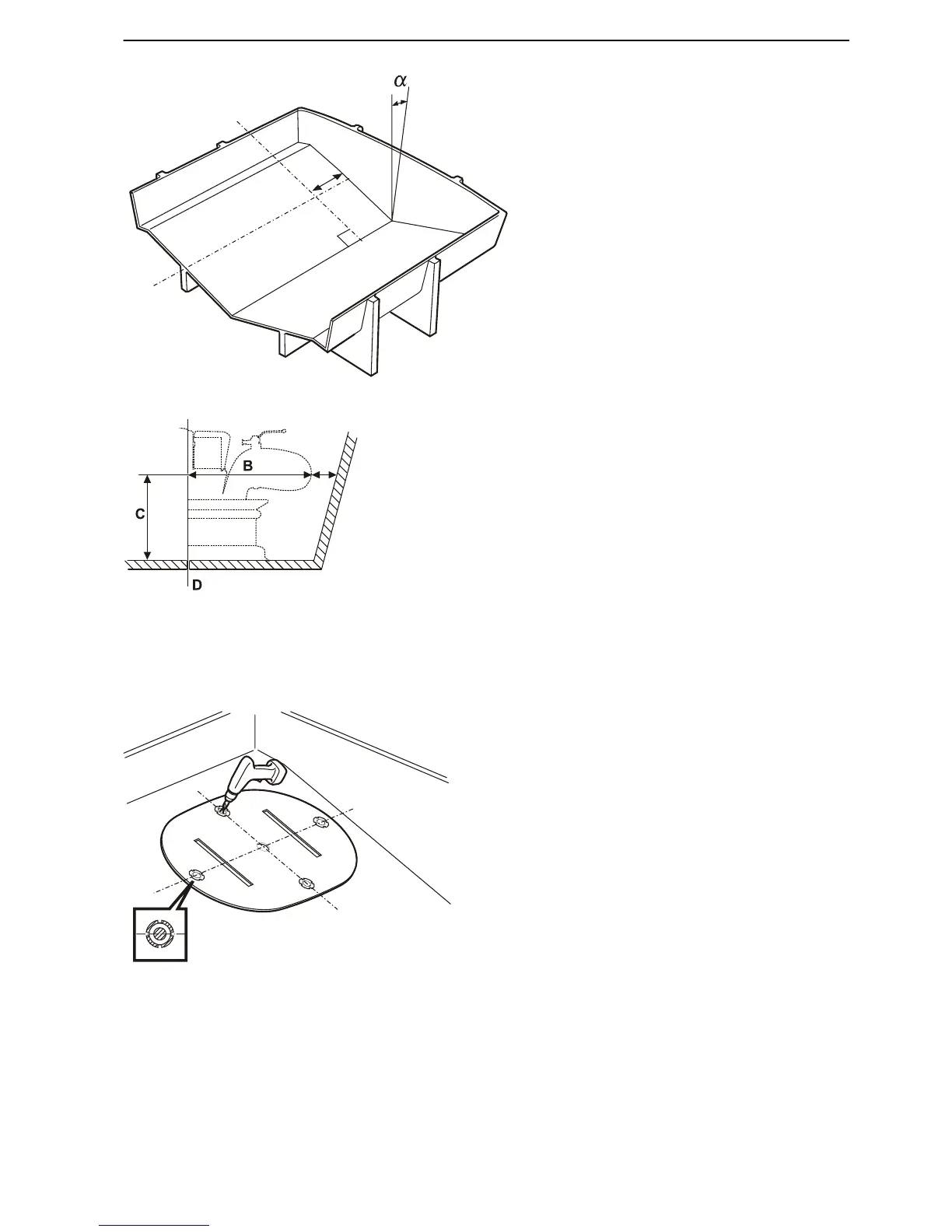

Mark out a straight line parallel to the transom at a dis-
tance
of (C), which depends on the transom angle (α).
The distance (C) the distance to the transom must be
at least 800 mm (31.5").
A
P0006126
A Min 50 mm (2")
B
750 mm (30")
C 415 mm (16")
D Marking
The exhaust elbow must have at least 50 mm (2")
clearance (A) from the transom. At a height of 415
mm (16").
NOTICE!
Consider the location of reinforcements,
bulkheads etc. It may be necessary to increase the
distance to the transom to provide clearance for the
exhaust elbow.
Drill holes along the lines
Use
the template from tool 3594503 Drill jig to drill four
6 mm (0.24") pilot holes on the intersecting lines.
Mirror the procedure on the port side of the hull.
C
P0006136
P0010559
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 67
