IMPORTANT!
To
ensure good mat contour fit, mat density of the first
layers must not exceed 1075 g/m
2
(31.7 oz/yd
2
). Alter-
native directed fiber mats (not CSM) of density less
than 1500 g/m
2
(44.3 oz/yd
2
) may be used in the other
layers as long as minimum requirements for number of
layers, total density and total mat thickness are met.
IMPORTANT!
Secondary bondings must be avoided for the lamina-
tion, see General page 51.

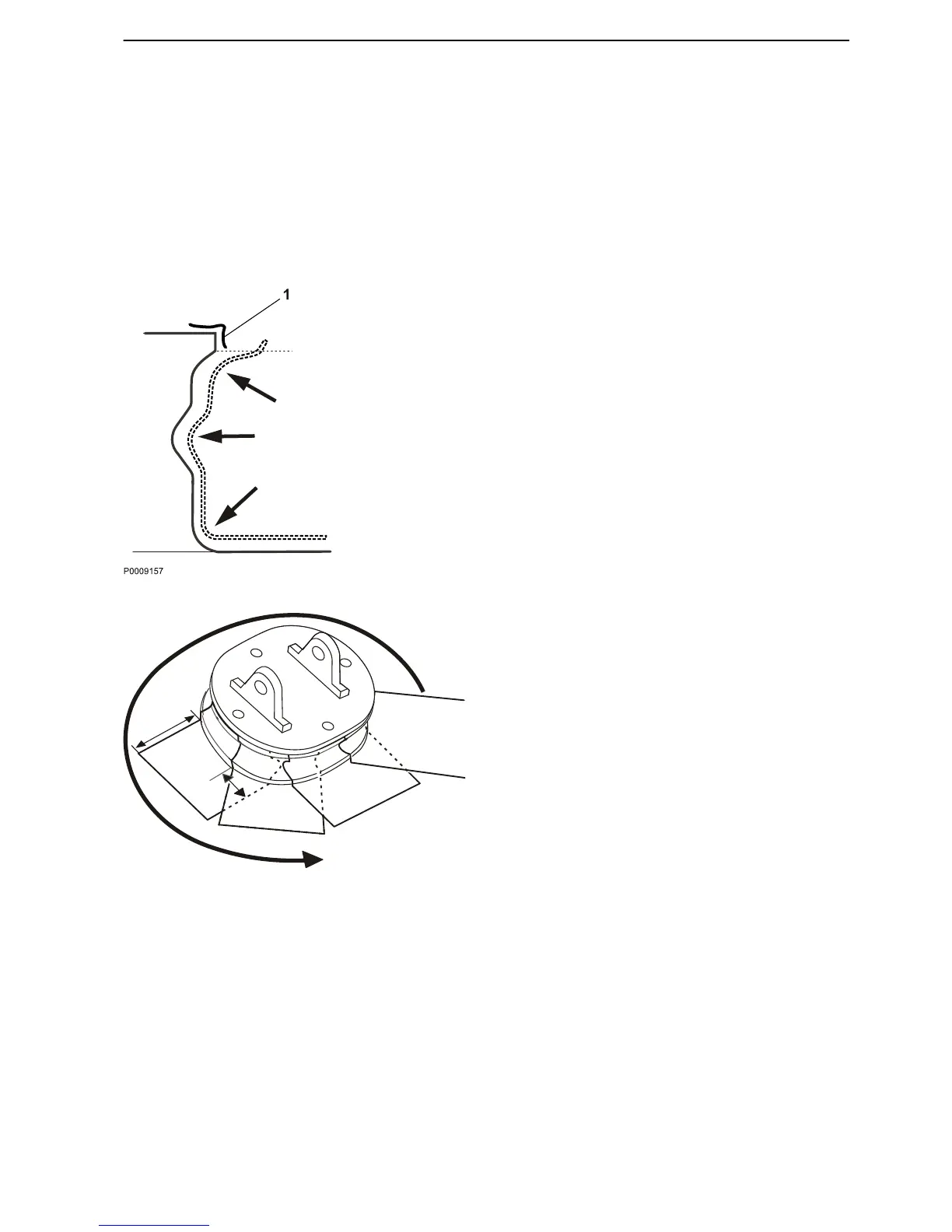

Plug contour fit
Mats must strictly follow the mold plug contour. Extend
mats higher than marking on plug.
NOTICE! Transom thickness requirement, same as
bottom, applies 600 mm (24”) from bottom and up,
refer to drawings and Zones of
Requirement page 80.
First layer
Place mats around the inserts, that are extended (A)
100 mm (4”) out from mold plug. A mat overlap of min-
imum 50 mm (2”) on the plug must be applied.
A
B
P0012012
