Layer no. 2–25
Rotate every new layer to avoid thicker areas. Each
layer
must be extended (C) minimum 50 mm (2”) from
the previous layer.

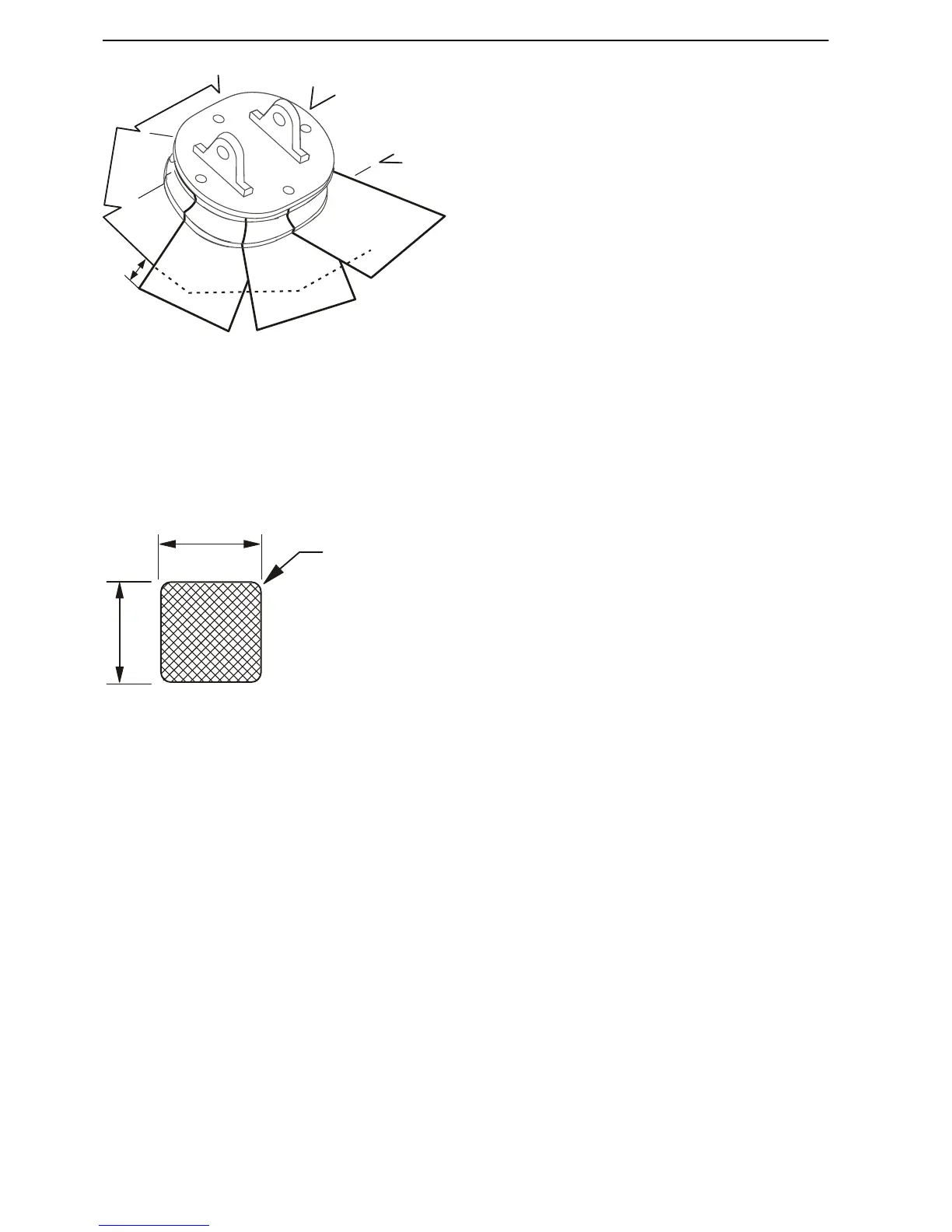

Placement of Reinforcement Rings
Around Hull Plugs
Material
Core material must be off a material with density ≥60
kg/m
3
(3.8 lb/ft
3
) or similar.
Dimensions
A Approx. 120 mm (4.7”)
B Approx. 100 mm (4.0”)
C 4 x 12 mm (0.5”) radius
Placement
Before the ring is placed, fill the V-groove in the hull
mold plug with putty. Use a putty mix with high fiber-
glass content.
IMPORTANT!
Putty must not be used in the V-groove before previ-
ous lamination steps are completed.
Installation, Volvo Penta IPS
74 47704162 10-2014 © AB VOLVO PENTA
