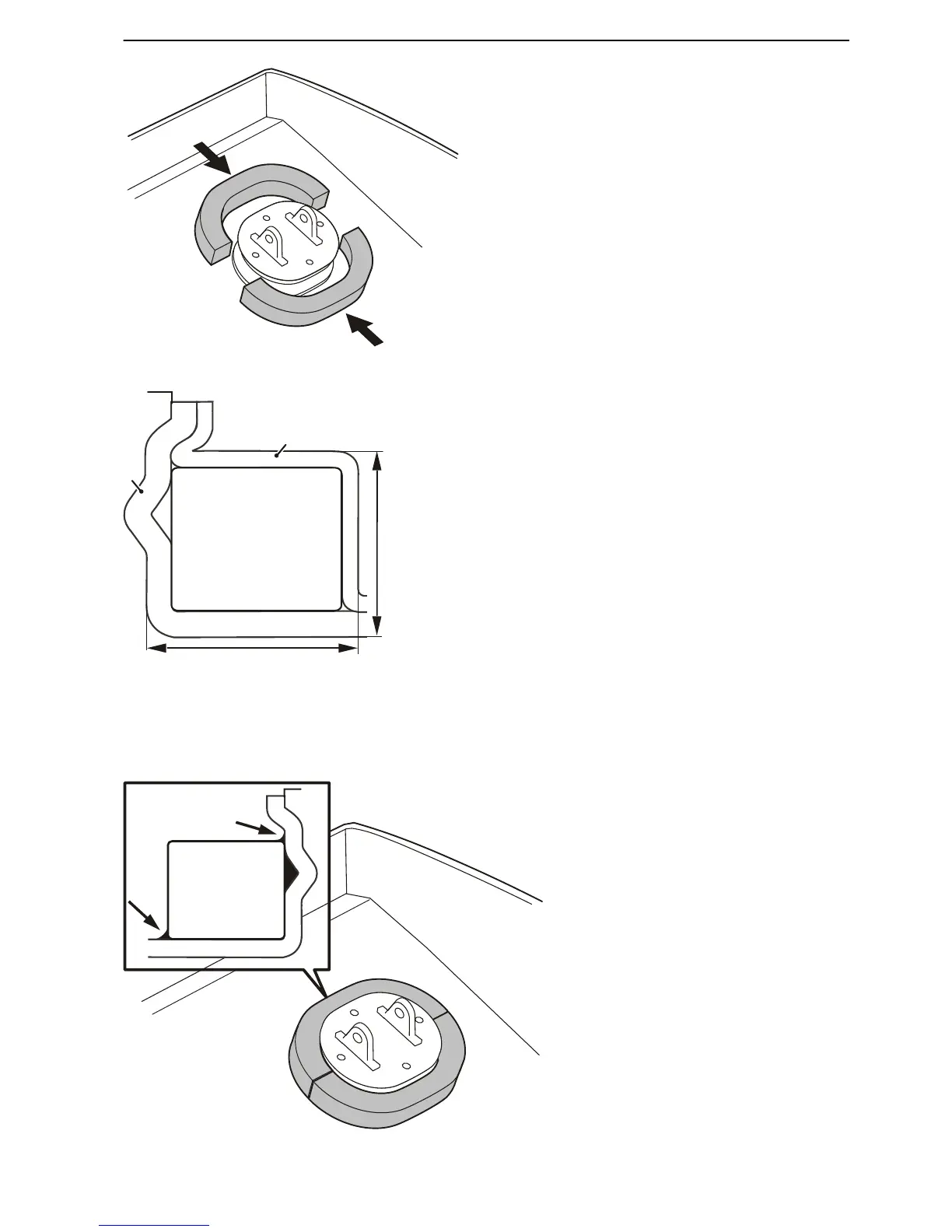

Place the ring and adjust it to fit the hull conditions.
NOTICE! The ring core can be made of several seg-
ments.
Adjust core dimensions to meet final requirements.
Fill transitions between the ring and hull/insert with
putty.
Use putty with high glass fiber content. The filling
radius should be at least 12 mm (0.5”).
A 137 mm (5.4”)
B 157 mm (6.2”)
P0011744
P0011574
1
2
B
A
3
1 Inner
lamination, see Lamination of Hull Mold Plugs page 72.
2 Ring core
3 Outer lamination, see Lamination of Reinforcement
Beams page 76
P0011745
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 75
