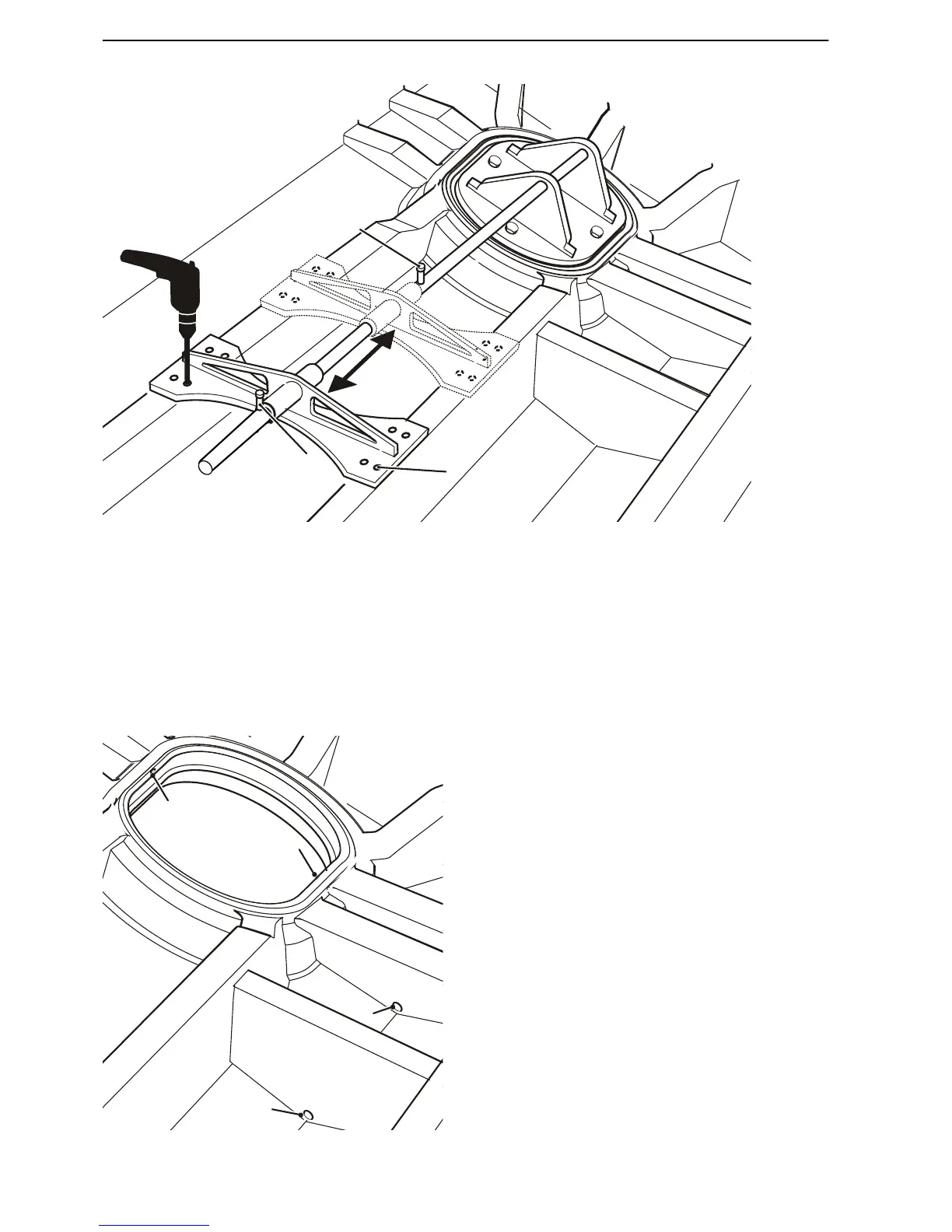

1 Pin for aft engine mounts
2
Pin for forward engine mounts
3 Drill bushings
NOTICE! Drill through the holes that are marked with
the engine model concerned.
Remove the special tool. Drill and tap the engine
mount holes with thread size M16 (5/8" UNC).
Drain hole
If
the drain hole (1) in the molded hull insert is blocked
with glass fiber it must be drilled out. Drill equivalent
holes if hull plugs have been used. Diameter: 15 mm
(0.6").
Also drill drain holes (2) at suitable points in the rein-
forcement beams. Diameter: 25 mm (1").
Installation, Volvo Penta IPS
86 47704162 10-2014 © AB VOLVO PENTA
