Lifting the drive unit
Lift the drive unit into the hull with the aid of a fork lift
or hoist.
Alternative 1: Lifting by hoist
2 Dry
off the lower seal ring and apply sealant part
# 3817243. Position the seal on the drive unit
drive leg.

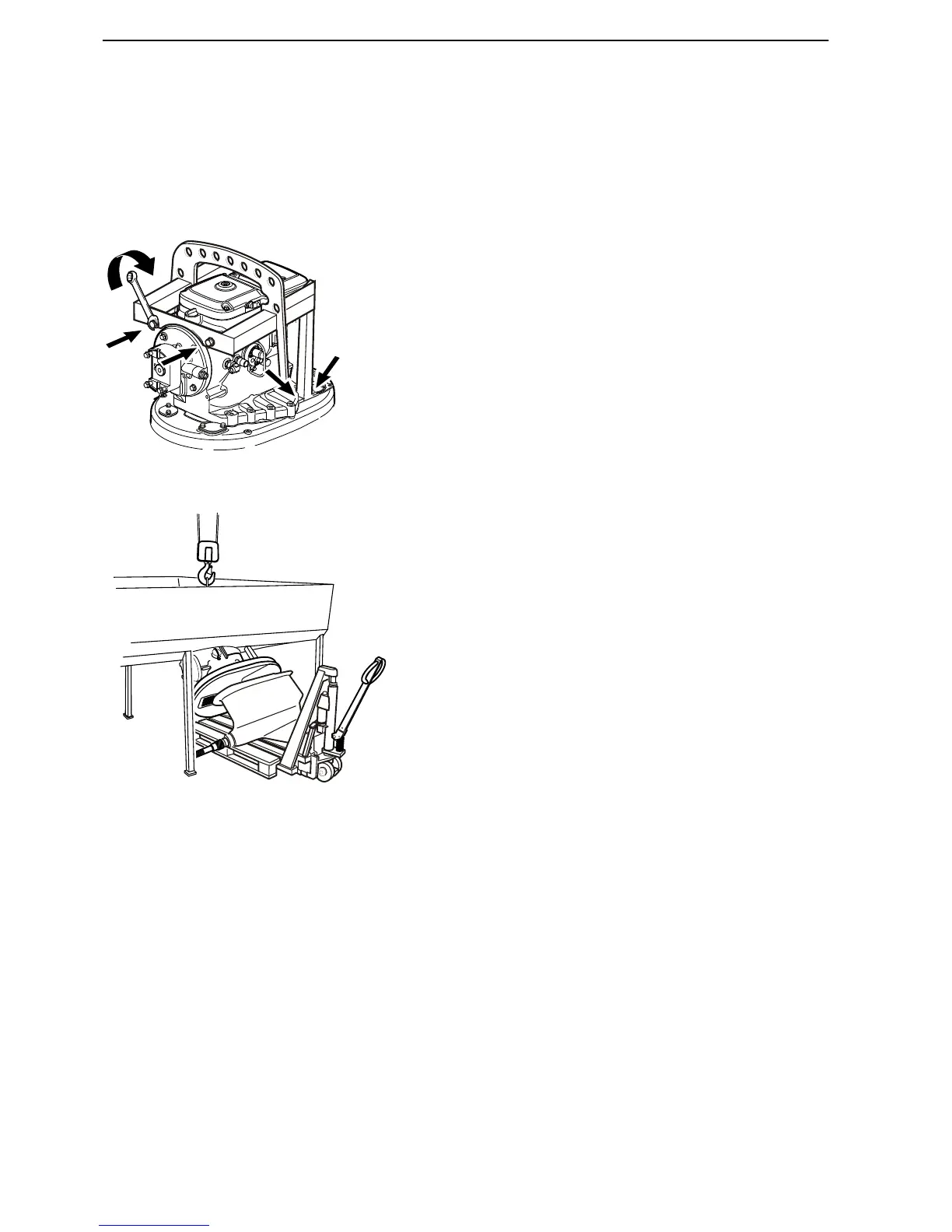

3 Fit 21110860 Lifting tool to the drive unit.
4 Connect the hoist through the hull to the lifting eye
in the tool that gives the drive unit an angle suit-
able for the hull design.
5 Hoist the drive unit until it is in even contact with
the hull. Maximum lifting force: 20 000 N (4400
lbf).
Installation, Volvo Penta IPS
88 47704162 10-2014 © AB VOLVO PENTA
