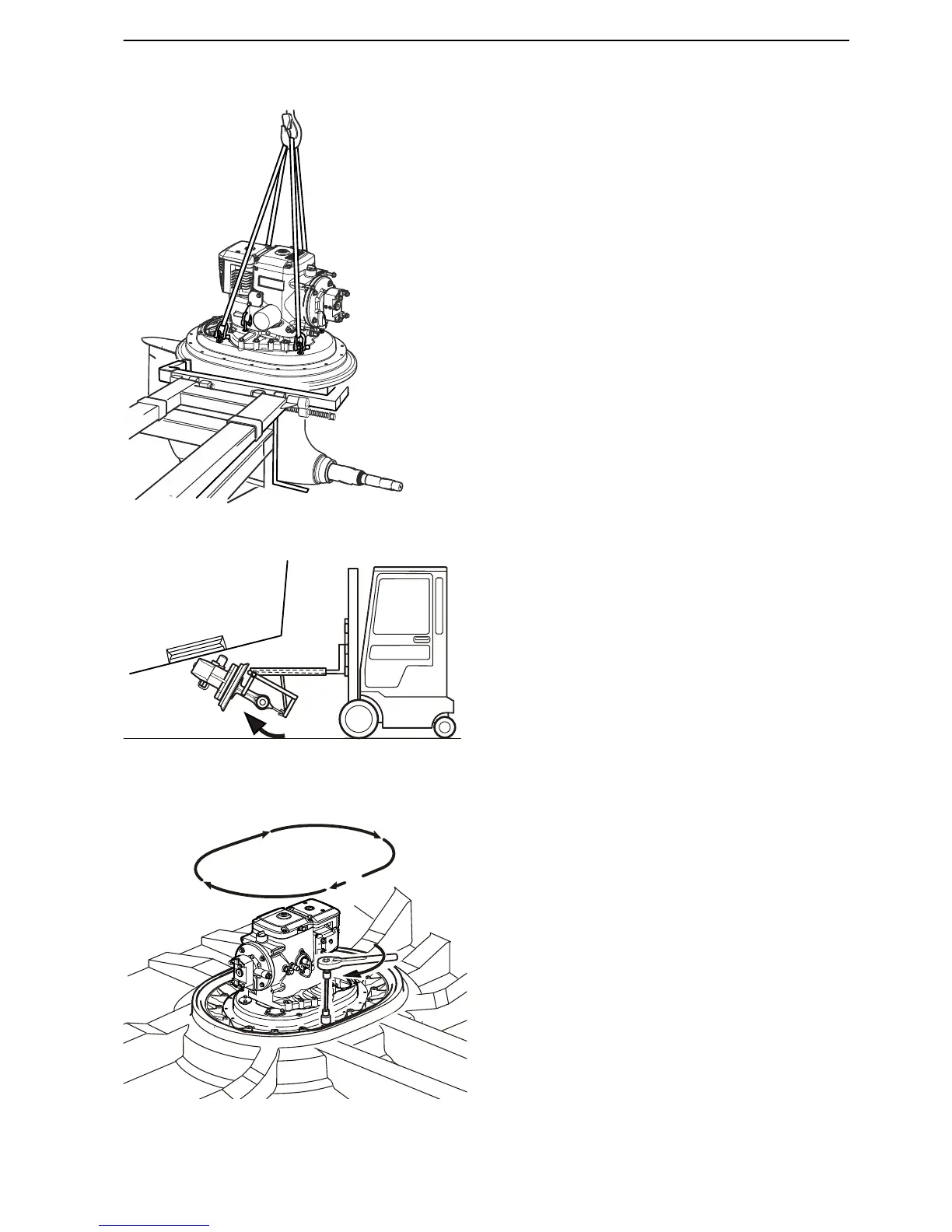

Alternative 2: Lifting by fork lift
6
Connect 3849664 Lifting tool to a fork lift accord-
ing to the tool instructions. Fit the drive unit into
the tool.
7 Make sure the drive unit installation point in the
hull is at least 1100 mm (44") above floor level.
8 Dry off the lower seal ring and apply sealant part
# 3817243. Position the seal on the drive unit
drive leg.
9 Tilt the drive unit down and, using the fork lift,
position it immediately below the hull installation
point.
10 Tilt the drive unit up to its installation angle and
lift it up slowly through the hull until it is in even
contact. Maximum lifting force: 20 000 N (4400
lbf).
Mounting
11 Grease and install all 16 M14 bolts and tighten
each bolt three turns in a clockwise sequence.
Then tighten the bolts to 110–120 Nm (81–89
lbf.ft) in the same order.
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 89
