Volvo IPS950 - Engine Installation

Propeller
NOTICE!
Propeller appearance may vary between dif-
ferent propeller sizes owing to different suppliers.
Installation
Tools:
3863070 Allen key socket
P0001856
1
2
3
4
5
828250
P0010527

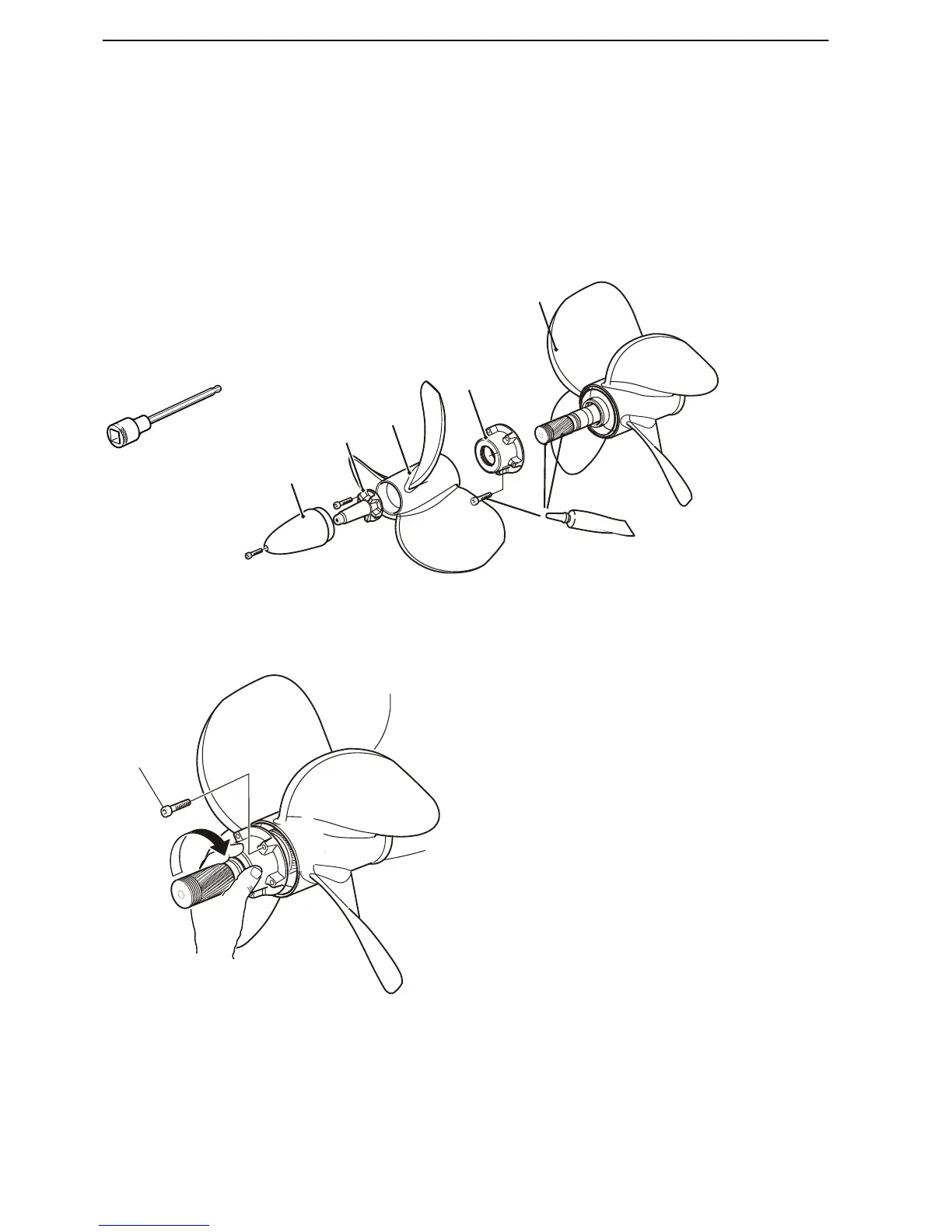

1 Clean
and brush waterproof grease, Volvo Penta
part # 828250 (also available in tubes, 21347121)
onto both propeller shaft splines and threads.
2 Install the aft propeller (1). Then install the aft nut
(2) and tighten it by hand until it bottoms. Turn the
nut so that the holes coincide and insert the six
bolts.
Tighten using special tool 3863070 Allen key
socket.
Tightening torque: 24–28 Nm (17.7–20.7
lbf.ft).
3 Fit the forward propeller (3). Install the nut (4) and
tighten it by hand until it bottoms. Turn the nut so
that the holes coincide and insert the six bolts.
Tighten using special tool 3863070 Allen key
socket.
Tightening torque: 24–28 Nm (17.7–20.7
lbf.ft).
24-28 Nm
P0011228
