Engine Mountings
Tools:
21244540 Measuring tool
Install the engine mounts on the engine brackets in
accordance with the following: Brush Volvo Penta
grease part # 828250 onto the threads.
Lift the engine by attaching a lifting device to both
engine lifting eyes.
IMPORTANT!
The lifting eyes must be burdened perpendicularly.

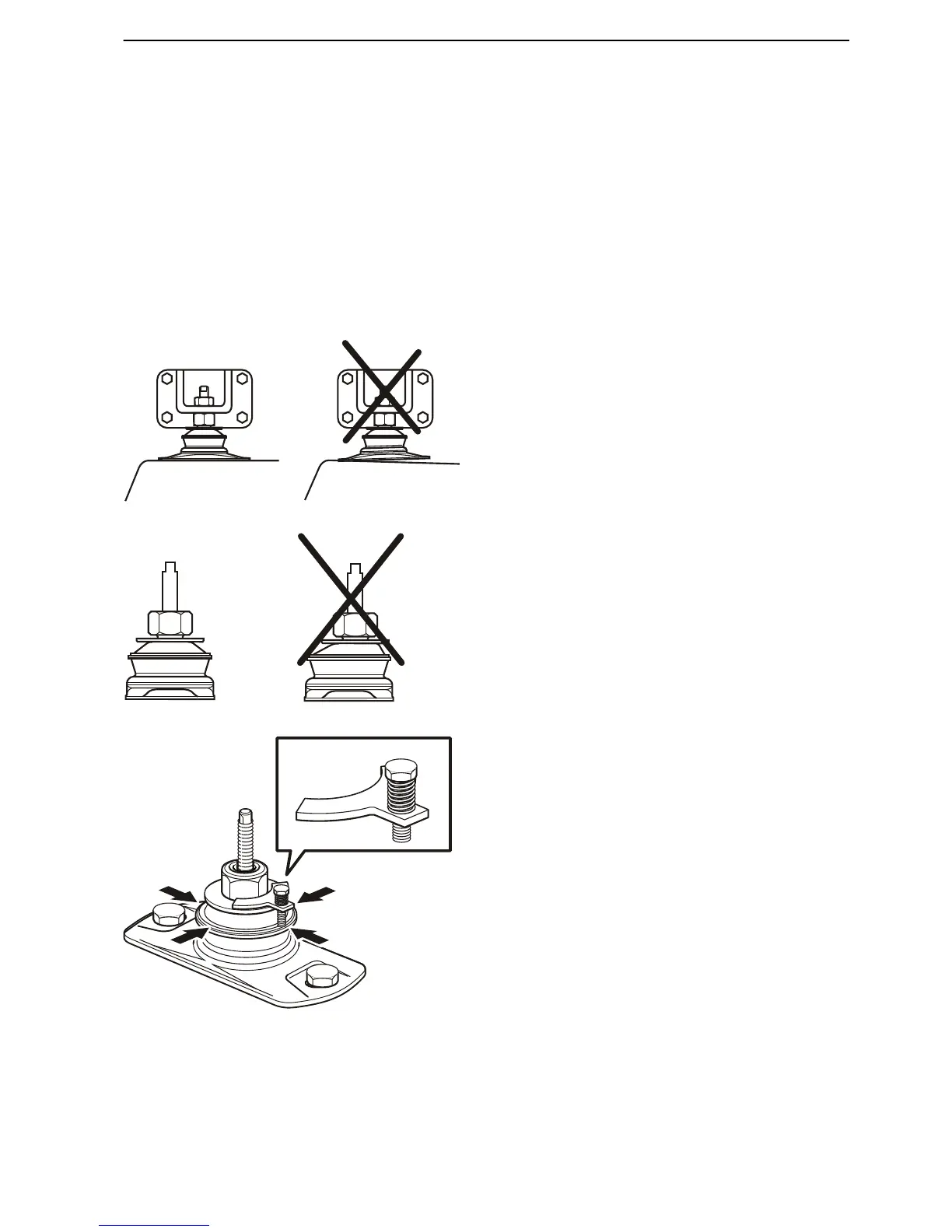

The engine bed must be in one single plane. Check
that the engine bed surfaces where the engine
mounts are to be installed are parallel to the engine
mount bottom plates, and that bed incline is correct
(use a graduated angle spirit level).
When
the engine is installed the load on the starboard
mounts must be the same as the load on the port
mounts. Max. permissible variation between star-
board and port engine mounts is ±1.5 mm (±0.06").
Check engine mount load by measuring their com-
pression with the aid of
21244540 Measuring tool.
Nominal compression is approx. 5 mm (0.2").
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 93
