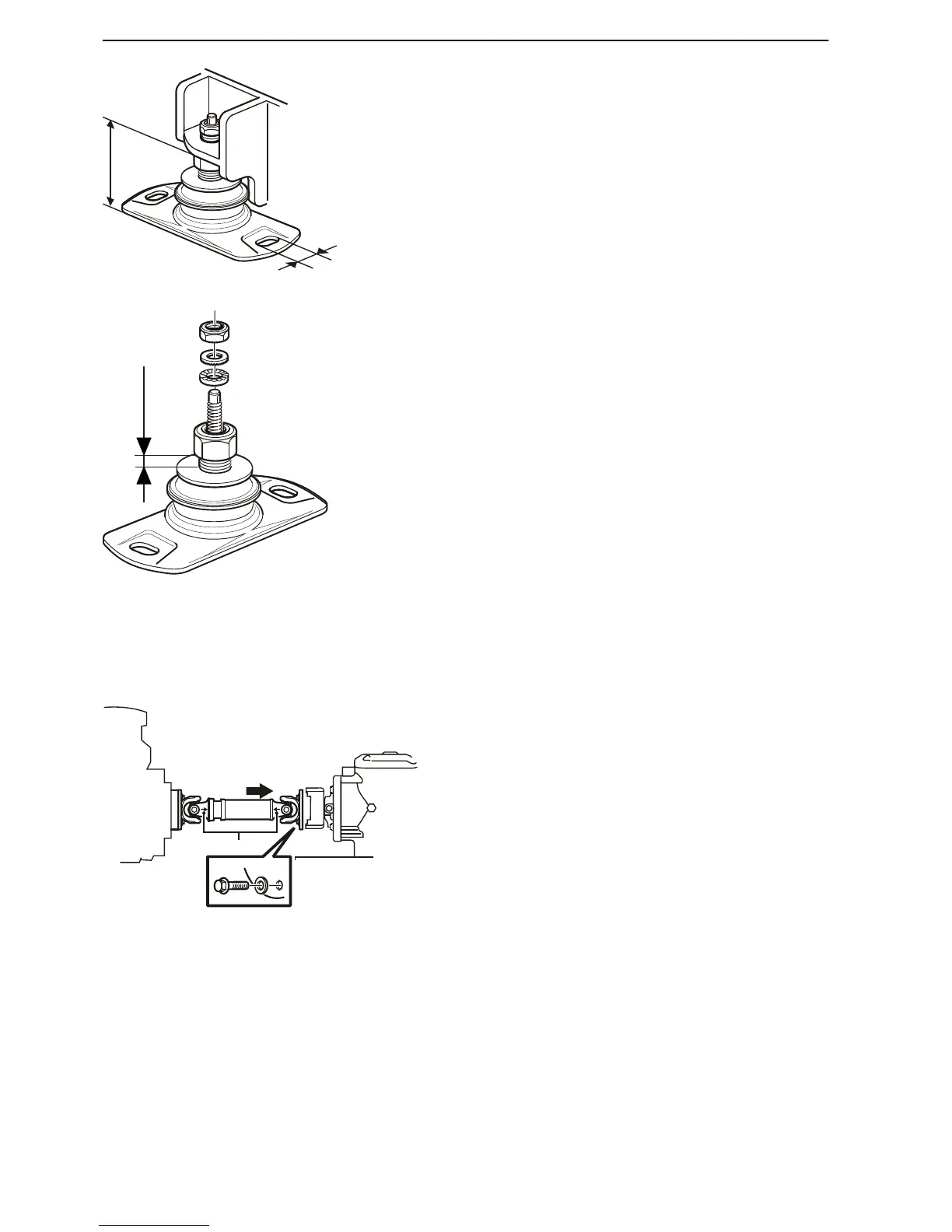

Adjustable engine mount basic position must be cen-
tered in the attachment plate holes. The attachment
plates have oblong holes for adjustment.
Nominal height (H): 116 mm ±8 mm
(4.6" ±0.3)
Hole width (V): 7 mm (0.3")
IMPORTANT!
The measurement between the engine mount and the
lower edge of the center adjuster nut (A) must never
exceed 20 mm (0.8"). If this occurs, the threads may
strip.
Propulsion Unit
Connecting the drive shaft
1 Install the drive shaft coupling from the engine to
the drive unit by pulling it out and fitting the four
bolts and washers to the drive unit shaft.
2 Check the flange-to-flange drive shaft distance as
illustrated. The length of the shaft should be 370
±15 mm (15"±0.6). Adjust the engine as neces-
sary.
NOTICE! If a longer drive shaft is to be used, refer
to General page 96.
IMPORTANT!
Check the direction of the two spline coupling
arrows (1).
The illustration shows the correct posi-
tion: the arrows point toward each other.
If the spline coupling is incorrectly installed there
is a great risk of vibration problems!
3 Tighten the bolts to 70–80 Nm
(52–60 lbf.ft).
