Volvo V50 2012 - Distribution Box in Engine Compartment F21-F31

TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 13
Fuses

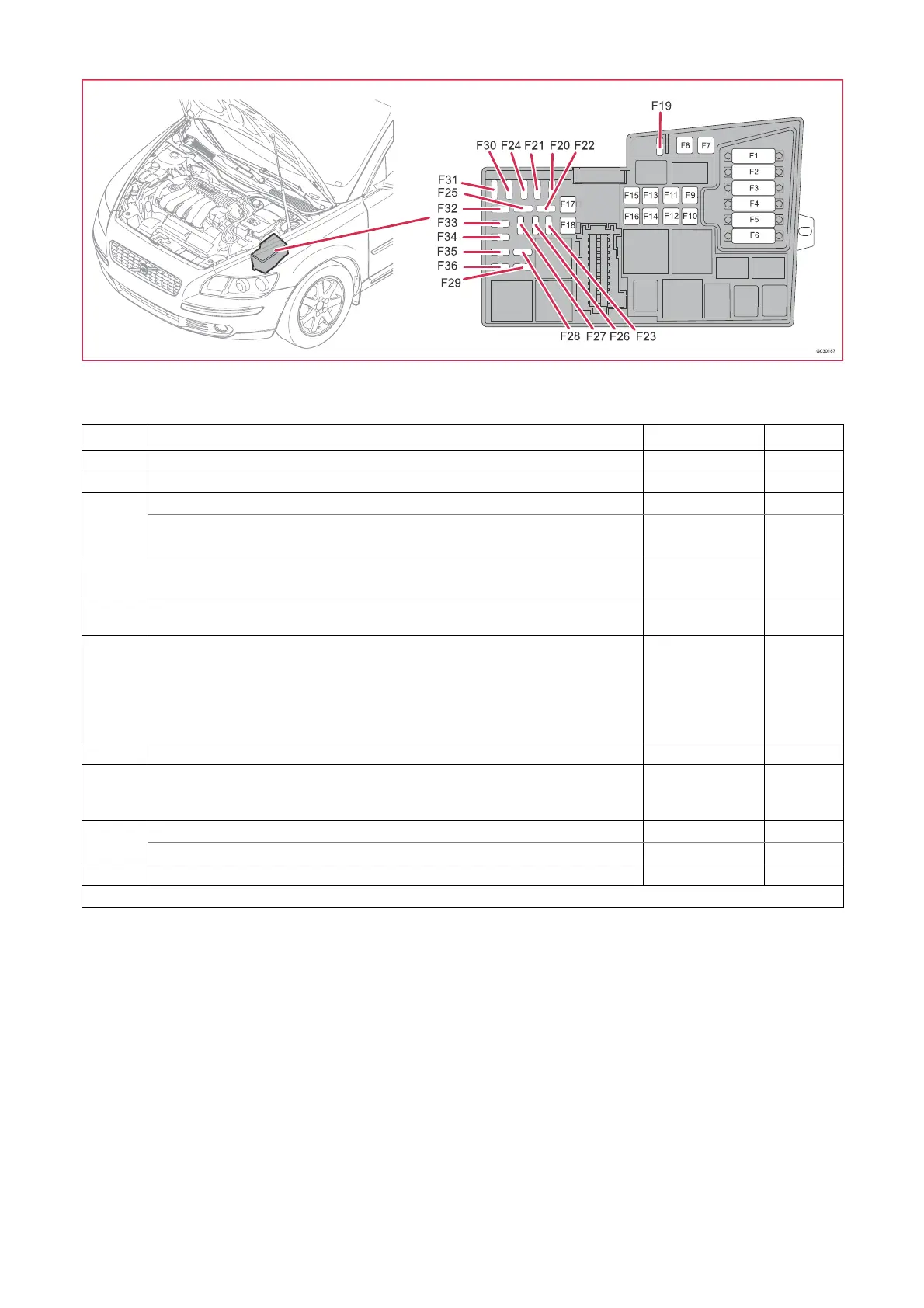

Distribution box in engine compartment F21-F31
15/31 Distribution box in engine compartment
No. Fuse function via A
F21 4/7 Combustion Preheater Module (CPM) - 20
F22 16/79 Subwoofer Module (SUB) - 20
F23 4/28 Transmission Control Module (TCM), MPS6 - 15
4/28 Transmission Control Module (TCM), 5-Cyl. - 10
4/28 Transmission Control Module (TCM), AWF21 -
F24 9/32 PTC resistor, crankcase ventilation, 5-Cyl. Diesel
9/38 Heated fuel filter, 5-Cyl. Diesel
2/142
2/142
20
F25 1/3 Secondary battery, 1.6l Diesel
4/56 Central Electronic Module (CEM), 1.6l Diesel
-10
F26 2/35 Relay, starter motor
3/1 Start Control Module (SCU)
4/56 Central Electronic Module (CEM)
F44 Fuse in the Central Electronic Module (CEM)
F51-F54 Fuses in the Central Electronic Module (CEM)
F73 Fuse in the Central Electronic Module (CEM)
3/1
-
3/1
3/1
3/1
3/1
15
F27 8/3 Electromagnetic clutch, climate control system 2/22 10
F29 2/34 Relay, front fog lights
10/5 Fog light, front left
10/6 Fog light, front right
-
2/34
2/34
15
F30 4/46 Engine control module (ECM), 1.6l Gasoline - 3
6/73 Coolant pump, 1.6l Diesel 2/239 10
F31 6/26 Alternator, 4-Cyl. - 10
continues
