Volvo V50 2012 - Floor Harness, V50 LHD

348 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 261

Cable harness routing in vehicle

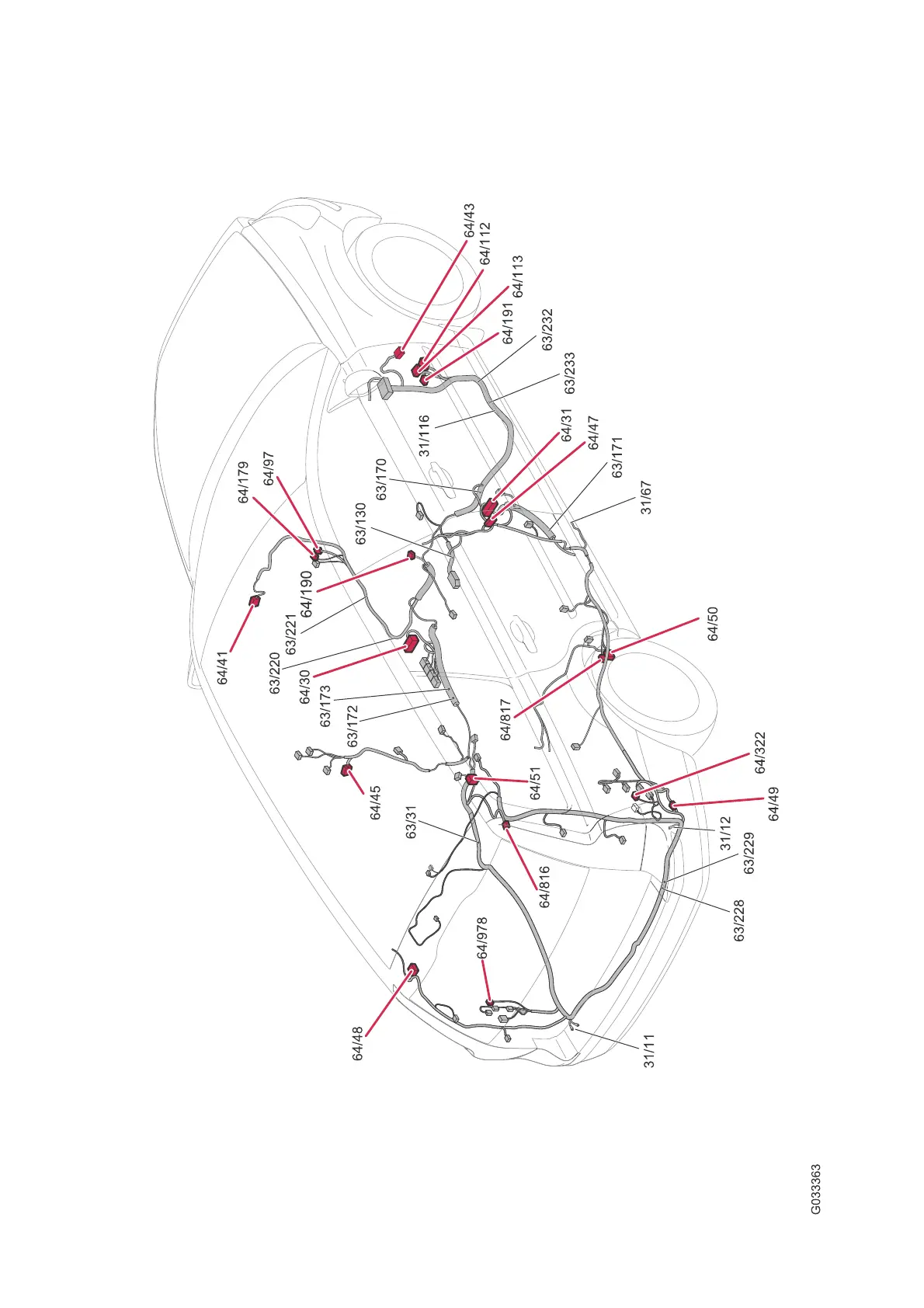

Floor harness, V50 LHD
