TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 19
Fuses

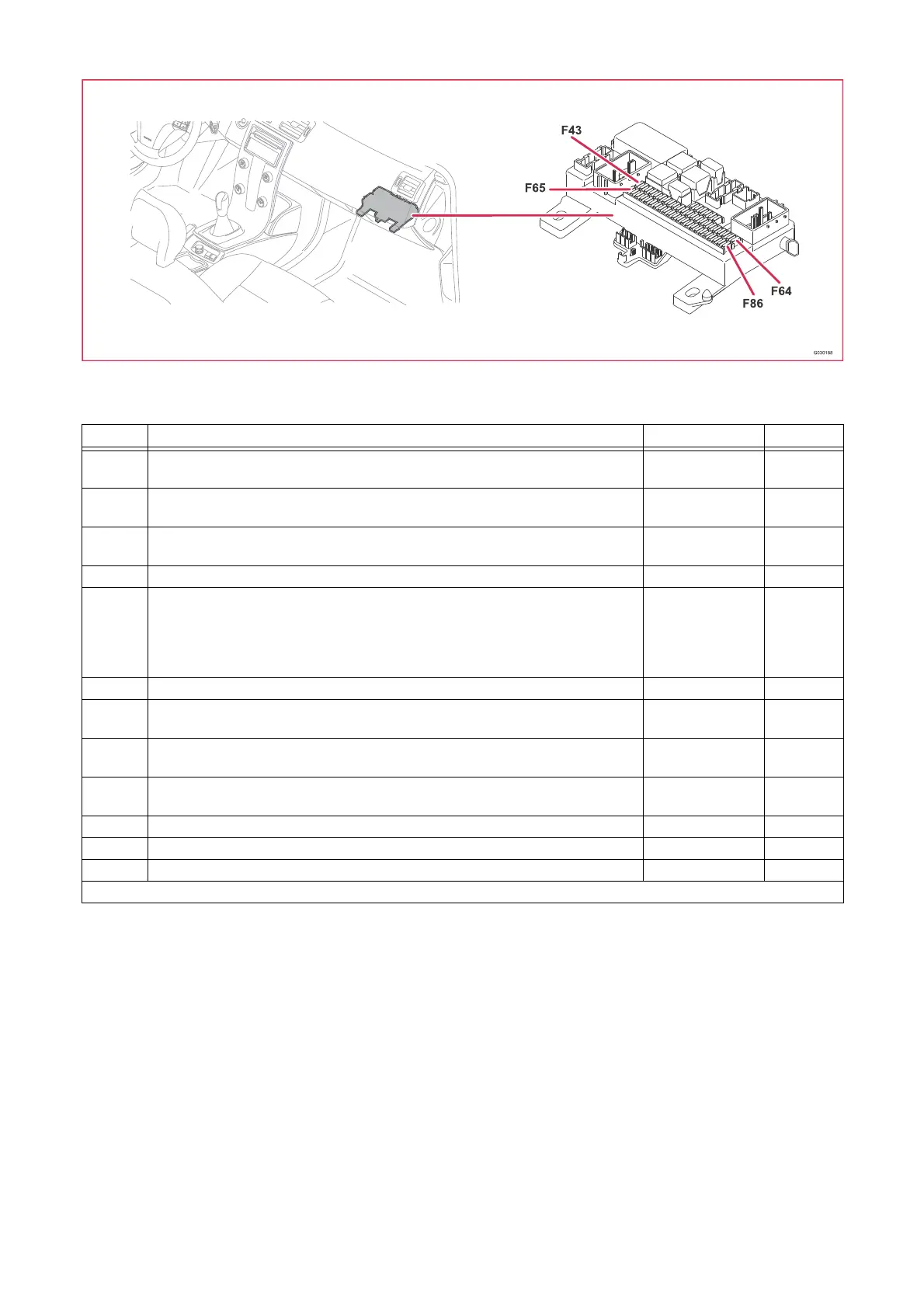

Central Electronic Module (CEM) F49-F61
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F49 4/9 Supplemental Restraint System Module (SRS)
7/93 Occupant Weight Sensor (OWS), USA/CDN
-
-
10
F51 2/142 Relay pre-heater fuel filter
9/41 PTC-element
-
-
10
F52 4/16 Brake Control Module (BCM)
4/28 Transmission Control Module (TCM)
-
-
5
F53 6/71 Electrical power steering module (EPS) - 10
F54 4/46 Engine Control Module (ECM), 5-Cyl.
4/86 Parking Assistance Module (PAM)
4/114 Headlamp Control Module (HCM)
10/1 Lamp housing, front left
10/2 Lamp housing, front right
-
-
-
-
-
10
F55 4/93 Keyless Vehicle Module (KVM) - 20
F56 4/119 Remote Keyless Entry (RKE)/Remote Receiver Module (RRX)
16/35 Siren Control Module (SCM)
-
-
10
F57 3/9 Contact brake light
17/13 Data link connector
-
-
15
F58 2/64 Relay, auxiliary lights
10/2 Lamp housing, front right
3/60
-
7.5
F59 10/1 Lamp housing, front left - 7.5
F60 9/12 Seat Heating Module (SHM), driver’s side - 15
F61 9/13 Seat Heating Module (SHM), passenger side - 15
