TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 14
Fuses

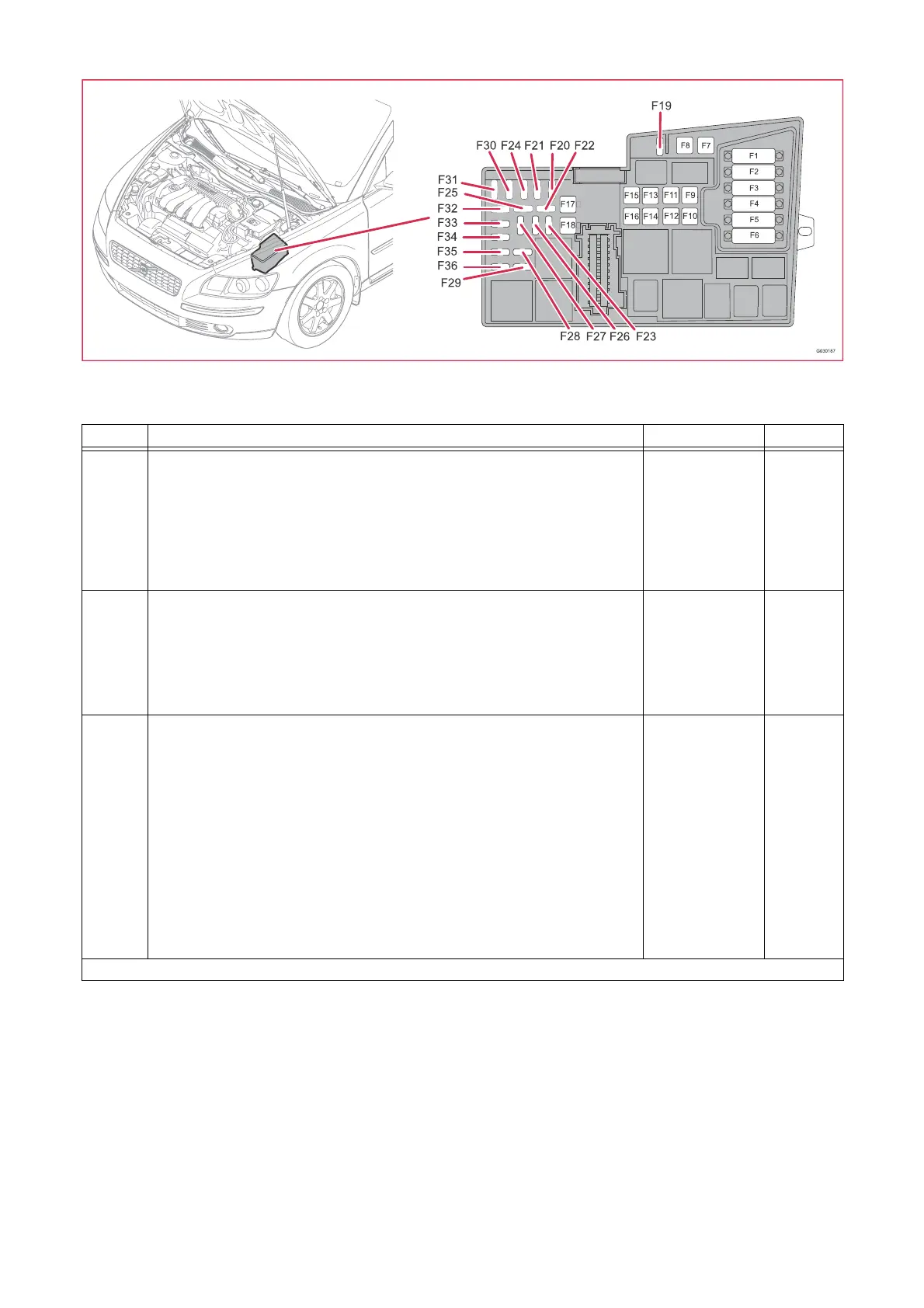

Distribution box in engine compartment F32-F34
15/31 Distribution box in engine compartment
No. Fuse function via A
F32 2/14 Relay, glow plug system
6/143 Regulator motor, Turbo
7/15 Front heated oxygen sensor, 4-Cyl.
7/17 Mass air flow sensor (MAF), 5-Cyl. Diesel
7/82 Rear heated oxygen sensor, 4-Cyl.
8/6-8/10 Injection valves, 5-Cyl.
8/11 Control valve fuel flow
8/122 Bypass valve, intercooler, 1.6l Diesel
-
-
-
-
-
-
-
-
10
F33 2/133 Relay vacuum pump
4/46 Engine Control Module (ECM), 5-Cyl. Diesel
6/114 Vacuum pump, 5-Cyl.
7/15 Front heated oxygen sensor, 5-Cyl.
7/82 Rear heated oxygen sensor, 5-Cyl. Turbo
8/84 Switch, vacuum pump
9/38 Heated fuel filter, 4-Cyl. Diesel
-
-
2/133
-
-
-
-
20
F34 2/35 Relay starter motor, 1.6l Diesel
2/242 Battery relay, 1.6l Diesel
2/243 Secondary battery relay, 1.6l Diesel
2/239 Relay coolant pump, 1.6l Diesel
4/46 Engine control module (ECM), 1.6l Diesel
4/109 Glow plug control module (GCU), 5-Cyl.
7/15 Front heated oxygen sensor 4-Cyl.
8/6-8/9 Injection valves, 1.6l.
8/111 Fuel flow control valve, 1.6l Diesel
8/119 Pressure monitor, climate control system, 5-Cyl.
8/120 EGR valve, 5-Cyl. Diesel
8/133 Control valve fuel pressure
20/3 -20/7 Spark plug and ignition coil
20/17 Transformer, ignition coils, 1.6l.
2/247
-
-
-
2/247
-
-
-
-
-
-
-
-
10
continues
