Compact Single-Sensor Cameras VRmC-X+
Compact single-sensor cameras consist of one board only, making them very small.
They are equipped with one image sensor and are available as board-level cameras
(OEM versions), board-level cameras with optics (COB versions) and as cameras with
aluminium housing (PRO versions).
Front View Side View
USB
Sensor
T
G
G
S

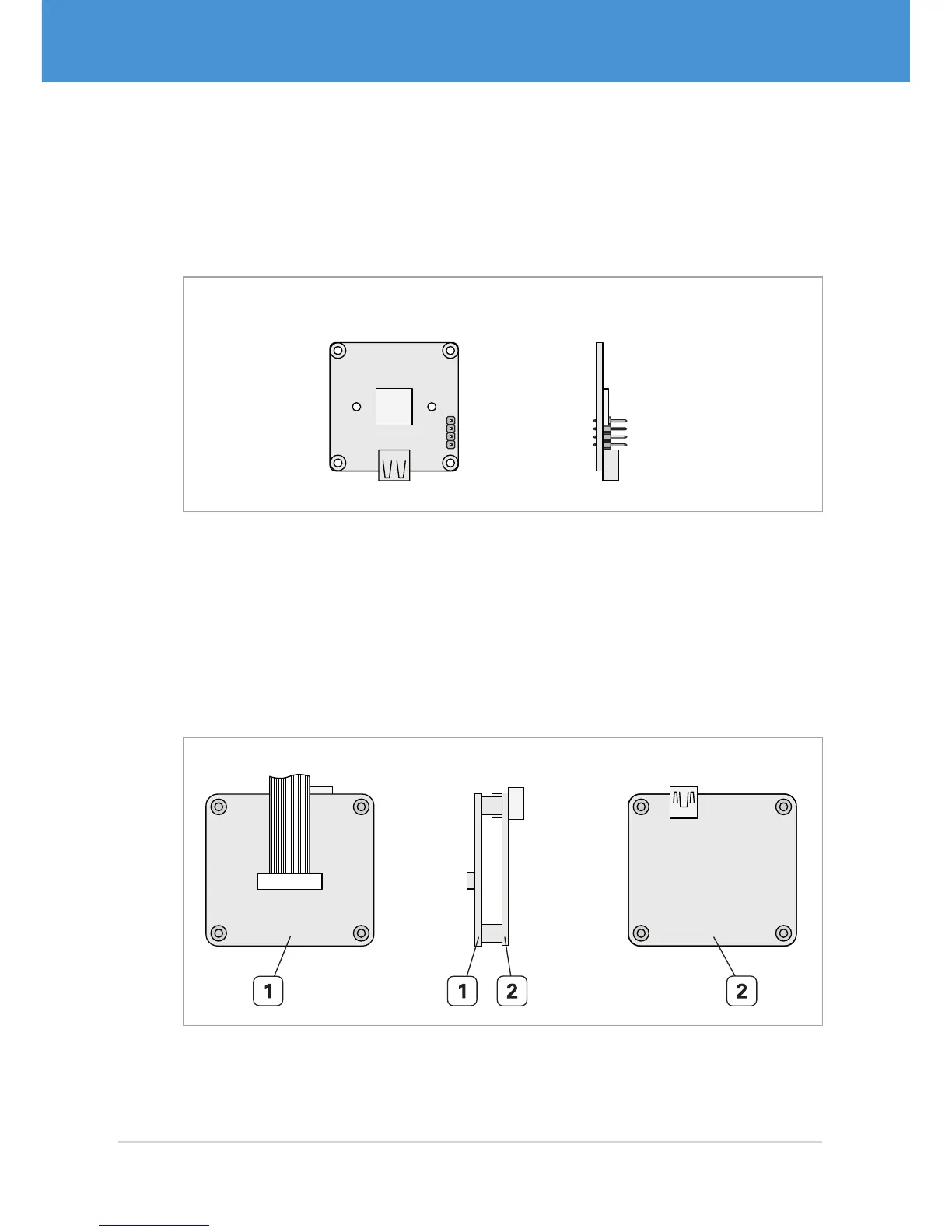

Fig. 2: Compact USB single-sensor camera (OEM)
Remote-Sensor Cameras VRmC-X-E
Remote-sensor cameras consist of a base unit and an external sensor board connected
to the base unit by flex-foil cable. Remote-sensor cameras are available as board-level
cameras (OEM versions) and board-level cameras with optics (COB versions).
The base unit consists of a sensor connection board and an interface board.
Back ViewFront View Side View
Fig. 3: Base unit of USB remote-sensor camera
1 Sensor connection board (external sensor board is connected via flex-foil cable)
2 Interface board
USB Cameras – User Guide8
