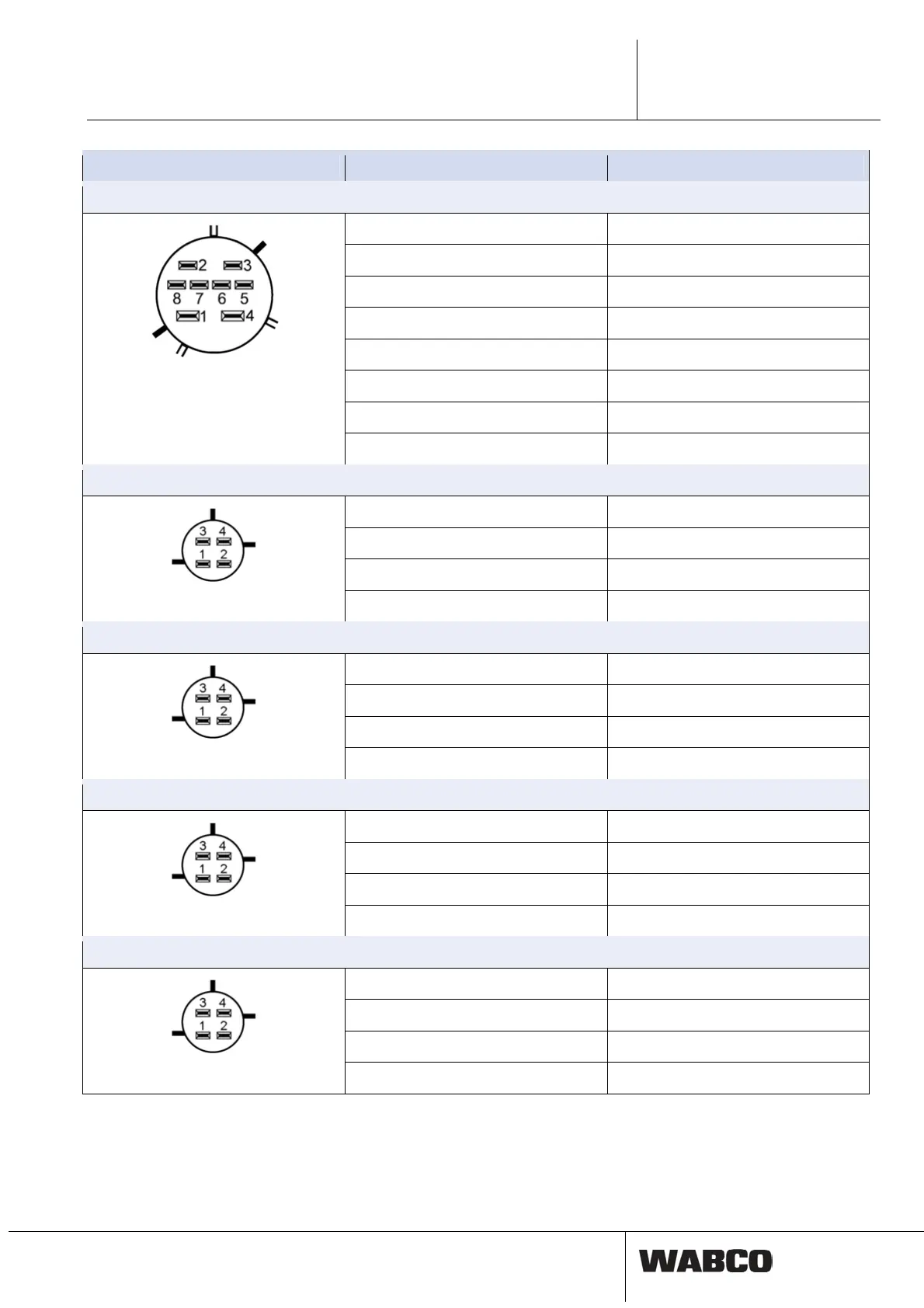

Connections Pin ELEX
GIO12, 8-pin Code C
1 Rear light on
2 CAN3-High 24 V
3 CAN3-Low 24 V
4 Ground Light
5 Clearance lights left on
6 Clearance lights left off
7 Clearance lights right off
8 Clearance lights right on
GIO13, 4-pin Code B
1 GIO power stage 2-1
2 Ground
3 Analogue input 2
4 Height sensor 2
GIO14, 4-pin Code B
1 GIO power stage 6-1
2 Ground
3 Analogue input 1
4 Height sensor 1
GIO15, 4-pin Code B
1 GIO power stage 1-1
2 Ground
3 GIO power stage 5-1
4 GIO power stage 1-2
GIO16, 4-pin Code B
1 GIO power stage 5-2
2 LIN sensor 2
3 TA 5-1
4 GIO power stage 4-1 (9 V/12 V)
