WABCO TEBS E1 - Page 200

12
TEBS E Appendix
200

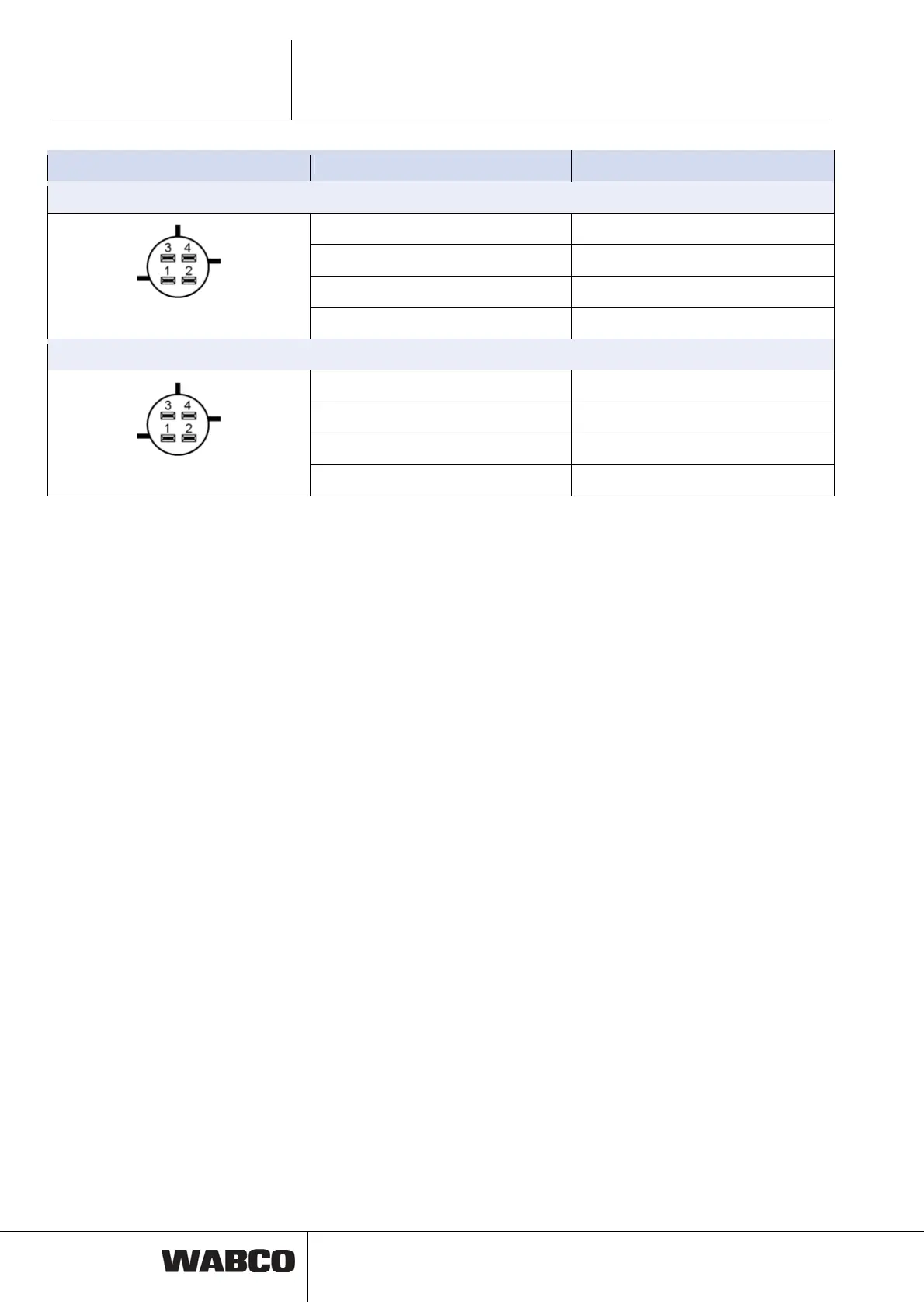

Connections Pin ELEX
GIO17, 4-pin Code B
1 PWM sensor 1
2 Ground
3 LIN sensor 1
4 GIO power stage 3-2 (9 V/12 V)
GIO18, 4-pin Code B
1 PWM sensor 2
2 Ground
3 LIN sensor 2
4 GIO power stage 3-1
