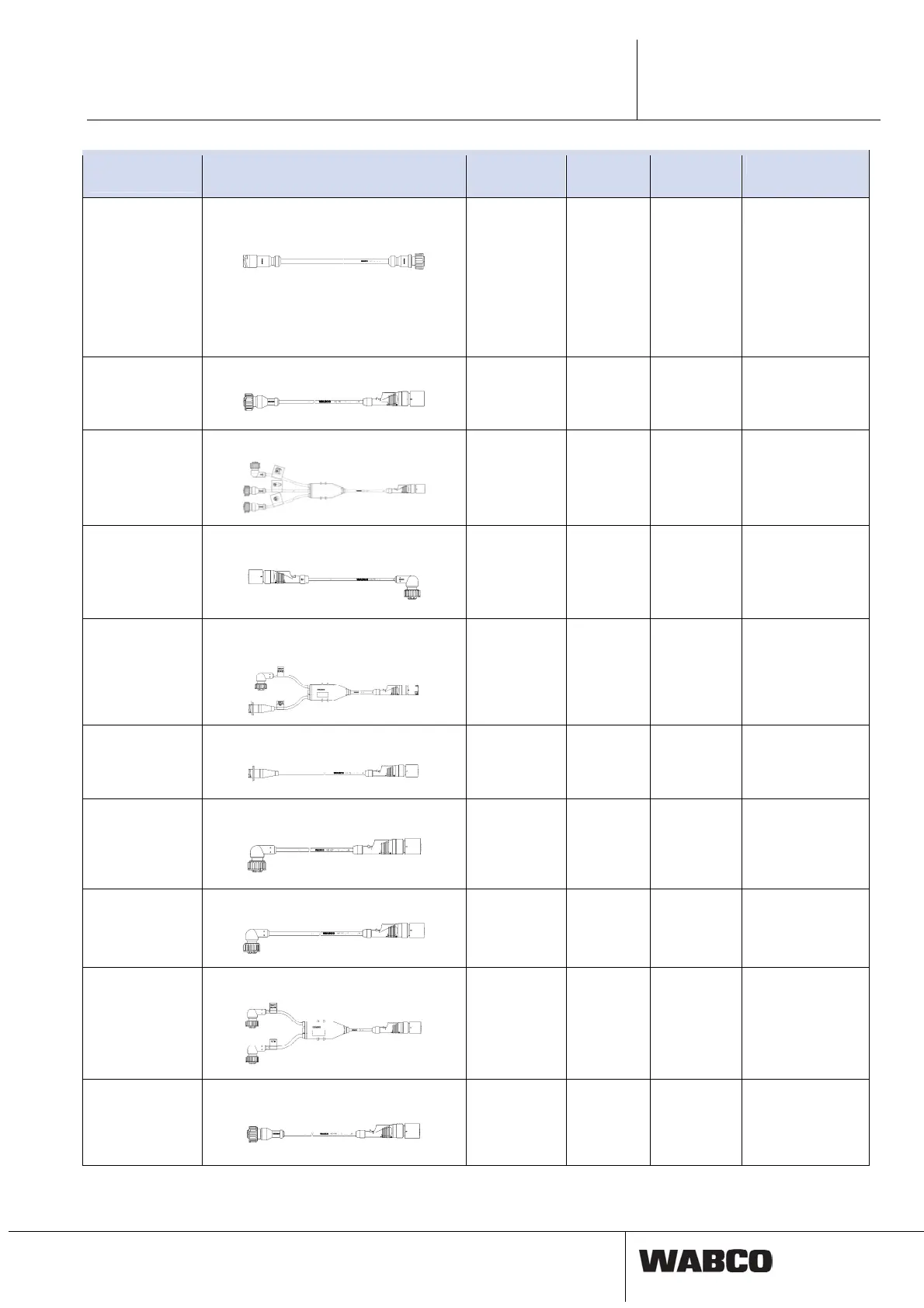

Slot on TEBS E
modulator
Application Part number Lengths Modulator Component
POWER
Extension cable
Only for CAN Router / CAN Repeater
894 600 049 0
894 600 051 0
894 600 032 0
894 600 033 0
894 600 034 0
20 m
30 m
40 m
50 m
60 m
DIN bayonet 7-pin
DIN bayonet
MODULATOR
Cable for ABS relay valve 472 195 037 0 449 436 030 0
449 436 080 0
3 m
8 m
TEBS E
8-pin
Code B
DIN bayonet
4-pin
MODULATOR
Cable for EBS relay valve 480 207 001 0 449 429 010 0
449 429 030 0
449 429 080 0
449 429 130 0
1 m
3 m
8 m
13 m
TEBS E
8-pin
Code B
3x DIN bayonet
4-pin
SUBSYSTEMS
Cable for SmartBoard 446 192 11. 0 449 911 040 0
449 911 060 0
449 911 120 0
4 m
6 m
12 m
TEBS E
8-pin
Code C
7-pin
DIN bayonet
SUBSYSTEMS
Cable for SmartBoard + ECAS remote
control unit
449 912 234 0 7 m/5 m TEBS E
8-pin
Code C
Socket ECAS
remote control unit
+ 7-pin DIN bayo-
net
SUBSYSTEMS
Cable for ECAS remote control unit 449 628 050 0 5 m TEBS E
8-pin
Code C
Socket ‘ECAS
remote control
unit’
SUBSYSTEMS
Cable for ECAS control box 449 627 040 0
449 627 060 0
4 m
6 m
TEBS E
8-pin
Code C
7-pin
DIN bayonet
SUBSYSTEMS
Cable for IVTM 446 220 010 0 449 913 050 0 5 m TEBS E
8-pin
Code C
7-pin
DIN bayonet
SUBSYSTEMS
Cable for SmartBoard and IVTM 449 916 182 0
449 916 243 0
449 916 253 0
0,4/4 m
1/6 m
6/6 m
TEBS E
8-pin
Code C
7-pin
2x DIN bayonet
SUBSYSTEMS
Cable for Telematics 449 914 010 0
449 914 120 0
1 m
12 m
TEBS E
8-pin
Code C
4-pin
DIN bayonet
