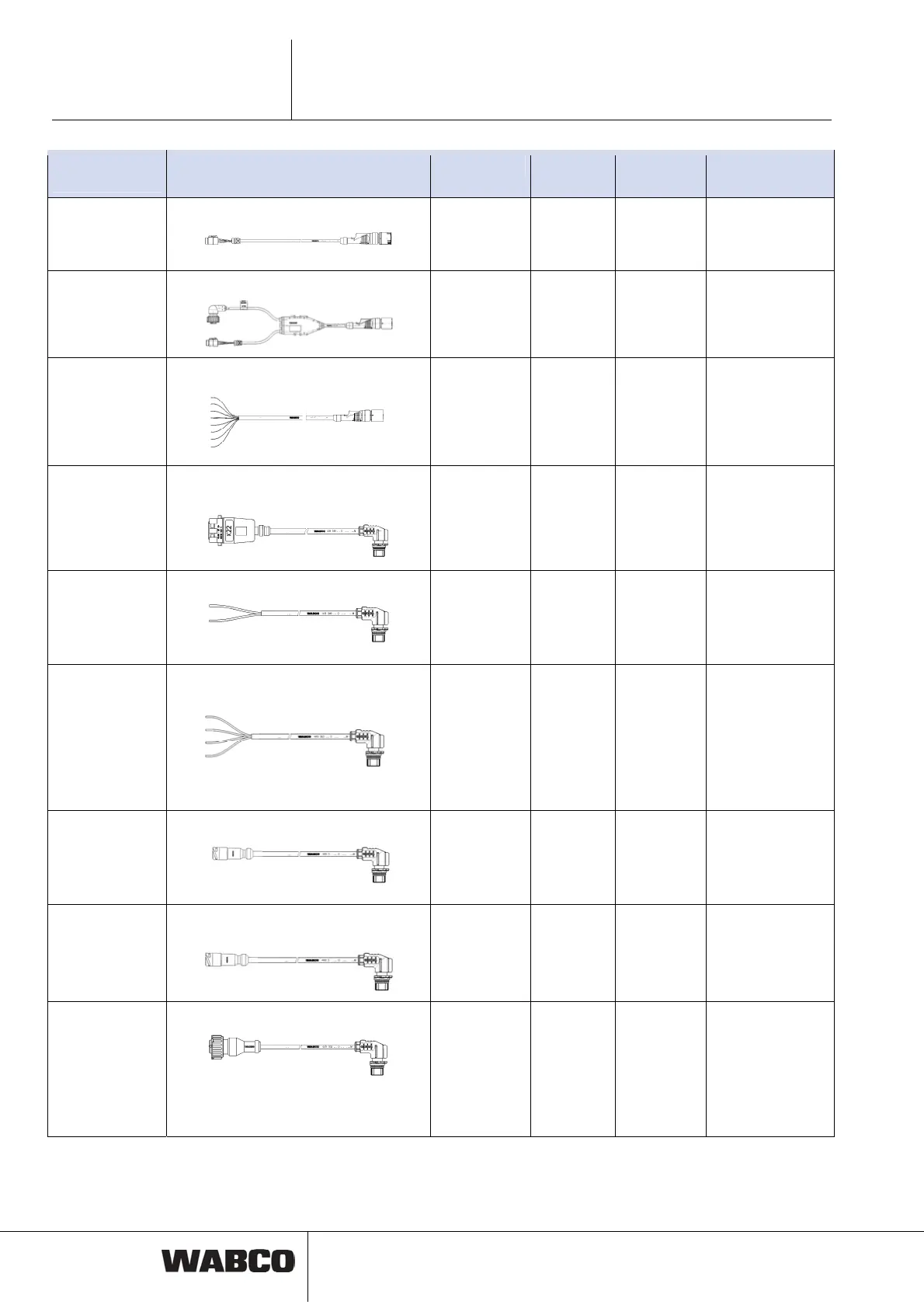

Slot on TEBS E
modulator
Application Part number Lengths Modulator Component
SUBSYSTEMS
Cable for Telematics 449 917 025 0
449 917 050 0
2,5 m
5 m
TEBS E
8-pin
Code C
6-pin
SUBSYSTEMS
Cable for Telematics/SmartBoard 449 920 248 0 3 m/6 m TEBS E
8-pin
Code C
DIN bayonet
6-pin
SUBSYSTEMS
Universal cable 449 437 020 0
449 437 060 0
2 m
6 m
TEBS E
8-pin
Code C
8x open
IN/OUT
Cable for Trailer Central Electronic
446 122 001 0
449 348 020 0 2 m TEBS E
4-pin
Code C
Trailer Central
Electronic Slot
X22
IN/OUT
Cable for stop light supply (24N) 449 349 040 0
449 349 060 0
449 349 100 0
449 349 150 0
4 m
6 m
10 m
15 m
TEBS E
4-pin
Code C
2-pin, open
Cable colours:
blue = plus
brown = ground
IN/OUT
Cable for stop light supply (24N),
traction help and forced lowering
449 365 060 0 6 m TEBS E
4-pin
Code C
4-pin, open
Pin 1: blue = plus
Pin 2: brown =
ground
Pin 3: red
Pin 4: yel-
low/green
IN/OUT
Cable for stop light supply (24N) 449 350 010 0
449 350 550 0
449 350 070 0
449 350 090 0
1 m
5,5 m
7 m
9 m
TEBS E
4-pin
Code C
2-pin
DIN bayonet
IN/OUT
Cable for stop light supply (24N), trac-
tion help and forced lowering
449 366 010 0 1 m TEBS E
4-pin
Code C
4-pin
DIN bayonet
GIO
Standard cable for lifting axle, RTR 449 443 008 0
449 443 010 0
449 443 020 0
449 443 040 0
449 443 060 0
449 443 100 0
0,8 m
1 m
2 m
4 m
6 m
10 m
TEBS E
4-pin
Code B
4-pin
DIN bayonet
