WABCO TEBS E1 - Page 206

12
TEBS E Appendix
206
Slot on TEBS E
modulator

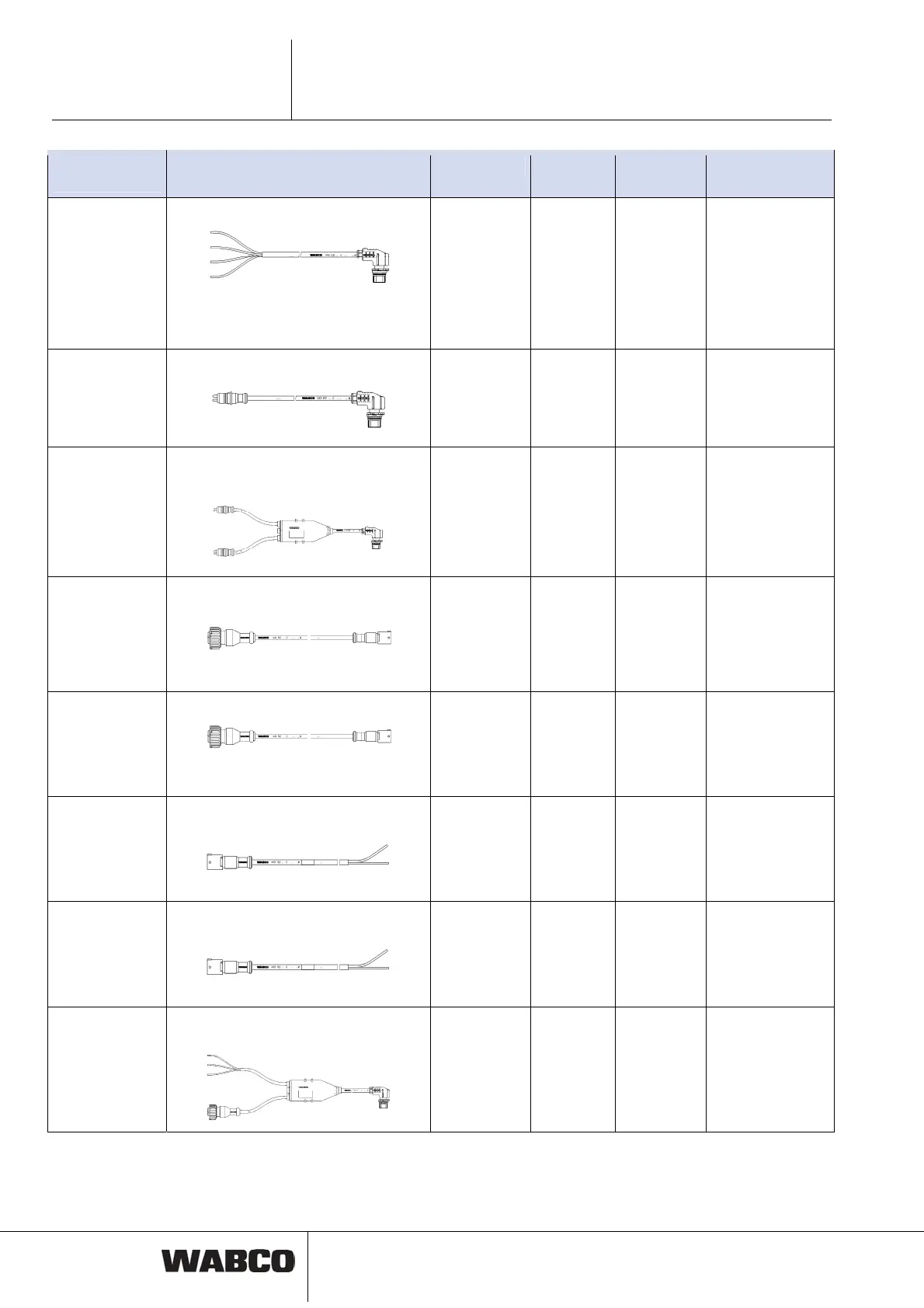

Application Part number Lengths Modulator Component
GIO
Universal cable 449 535 010 0
449 535 060 0
449 535 100 0
449 535 150 0
1 m
6 m
10 m
15 m
TEBS E
4-pin
Code B
4-pin, open
Cable colours:
Pin 1: red
Pin 2: brown
Pin 3: yel-
low/green
Pin 4: blue
GIO
Adapter cable 449 819 010 0 1 m TEBS E
4-pin
Code B
2-pin
GIO
GIO Y distributor (to be used with TEBS
D cables 449 752 ... 0 and 449 762 ... 0)
449 629 022 0 0,4/0,4 m TEBS E
4-pin
Code B
2x 3-pole
ABS connector
GIO
Cable for pressure sensor, lifting axle or
height sensor
449 752 010 0
449 752 020 0
449 752 030 0
449 752 080 0
449 752 100 0
1 m
2 m
3 m
8 m
10 m
TEBS E
3-pin
round for
GIO distribu-
tor
4-pin
DIN bayonet
GIO
Cable for ECAS valve or LACV-IC 449 761 030 0 3 m TEBS E
3-pin
round for
GIO distribu-
tor
4-pin
DIN bayonet
GIO
Cable for traction help or manoeuvering
assistance
449 762 020 0
449 762 080 0
449 762 150 0
2 m
8 m
15 m
TEBS E
3-pin
round for
GIO distribu-
tor
2-pin
open
brown = ground
black = input
GIO
Cable for mechanical switch for road
finisher brake (not for proximity switch)
449 763 100 0 10 m TEBS E
3-pin
round for
GIO distribu-
tor
2-pin
open
brown = ground
black = input
GIO
Cable for traction help, unloading level
or height sensor
449 626 188 0 3 m/4 m TEBS E
4-pin
Code B
4-pin
3-wire open
DIN bayonet
