TEBS E
12
Appendix
207
Slot on TEBS E
modulator

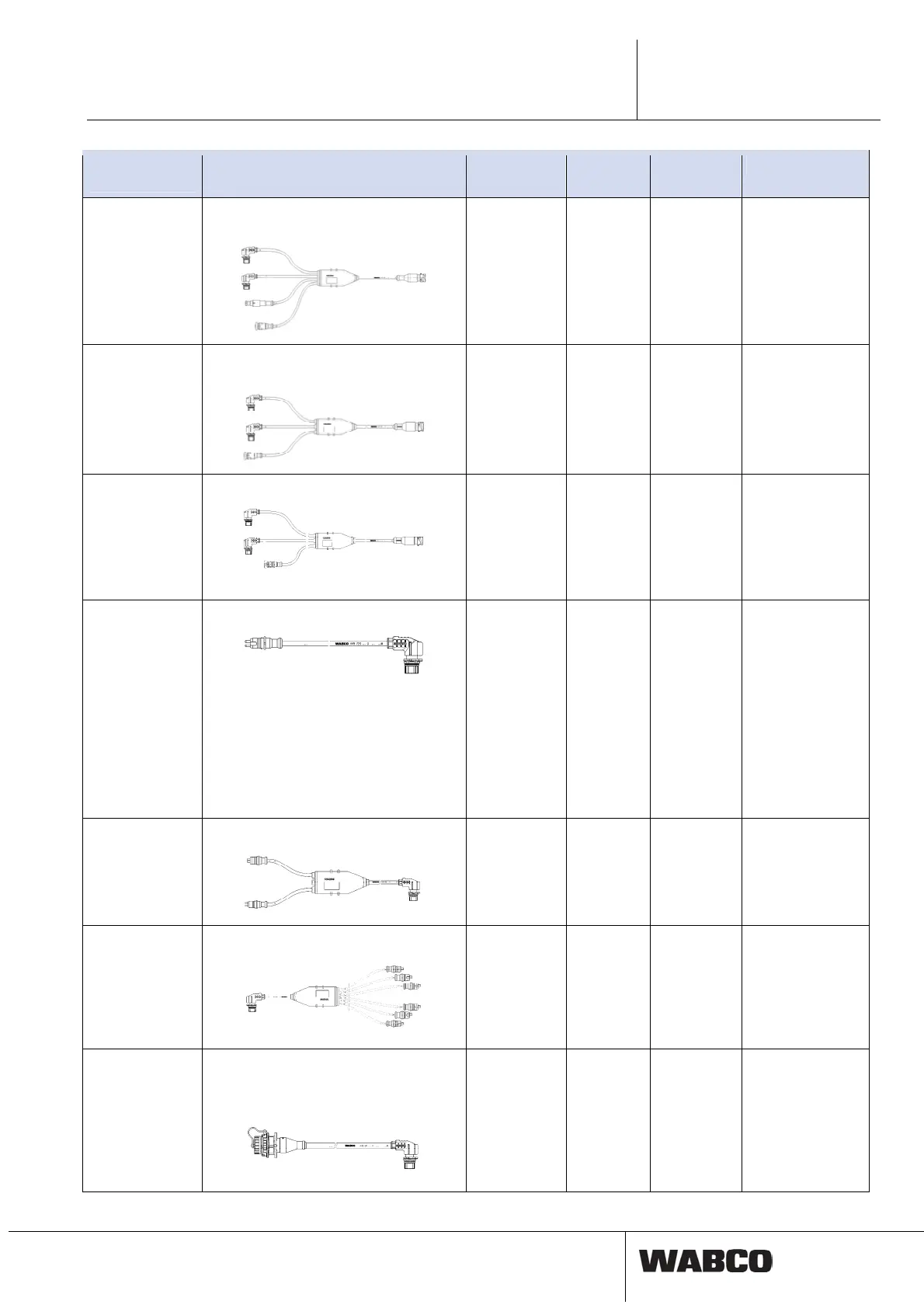

Application Part number Lengths Modulator Component
GIO and IN/OUT
Distribution cable for 24N, traction help
or forced lowering
449 358 033 0 6.0 m/0.4 m TEBS E
4-pole Code
C
4-pole Code
B
2-pin
2-pin
4-pin
DIN bayonet
GIO and IN/OUT
Distribution cable for 24N, traction help
or forced lowering
449 356 023 0 1,0 m/0.4 m TEBS E
4-pole Code
C
4-pole Code
B
2-pin
4-pin
DIN bayonet
GIO and IN/OUT
Cable for 24N or traction help
449 357 023 0
449 357 253 0
0.4 m/1 m
6 m/6 m
TEBS E
4-pole Code
C
4-pole Code
B
2-pin
4-pin
DIN bayonet
ABS-c
ABS-d
ABS-e
ABS-f
Cable for ABS sensor extension
449 723 003 0
449 723 018 0
449 723 023 0
449 723 030 0
449 723 040 0
449 723 050 0
449 723 060 0
449 723 080 0
449 723 100 0
449 723 150 0
0,3 m
1,8 m
2,3 m
3 m
4 m
5 m
6 m
8 m
10 m
15 m
TEBS E
4-pin
Code A
2-pin
ABS socket
GIO and ABS
Cable for ABS sensor plus GIO 6/7
449 818 022 0 0.4 m/0.4 m TEBS E
4-pin
Code B
1x 2-pole
1x 3-pole
ABS connector
GIO
Cable for wear indicator
449 816 013 0
449 816 030 0
1,3 m
3 m
TEBS E
4-pin
Code B
6x 3-pole
ABS connector
GIO
CAN diagnostic cable (only for Premium)
Note: Only diagnostic cable to interface
446 300 348 0
449 611 030 0
449 611 040 0
449 611 060 0
449 611 080 0
3 m
4 m
6 m
8 m
TEBS E
4-pin
Code B
7-pin
Diagnostic socket
with yellow cap
