WABCO TEBS E4 - Page 176

10
TEBS E Operation
176

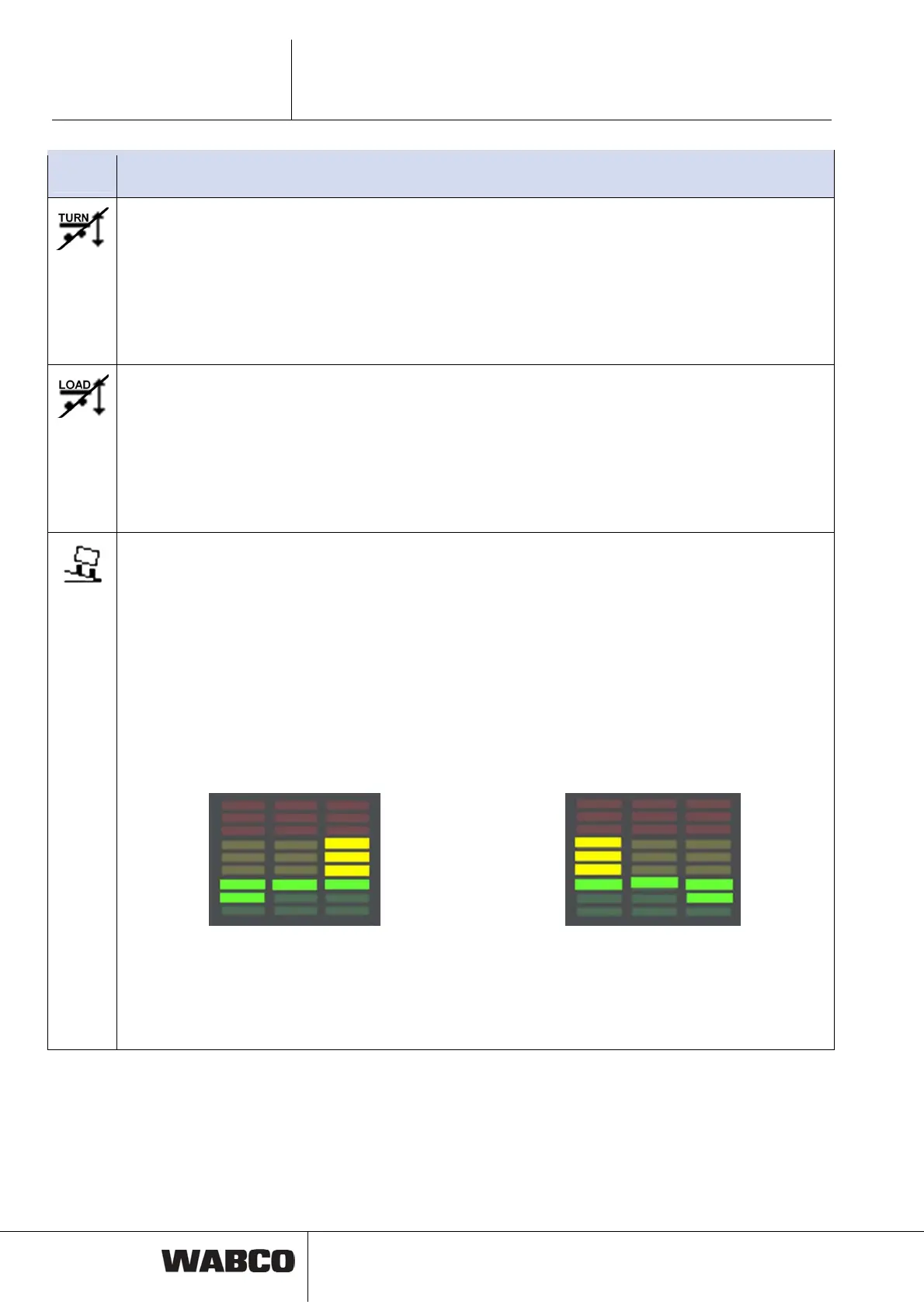

Button
symbol
Function
Automatic OptiTurn off (version ELEX1 or higher)
Activation: Touch button.
Temporary deactivation (to prevent automatic starting): Touch button again.
Continuous deactivation: Touch the button > 5 seconds.
To switch the function off permanently, i.e. even after restarting the ignition, the button must be pressed for 5
seconds. The same applies for switching it on.
Select Activating OptiTurn/OptiLoad via SmartBoard (no switch necessary) in the TEBS E Diagnostic Software to
enable the function in Trailer Remote Control without having to allocate a switch in the GIO connector assignment.
Automatic OptiLoad off (version ELEX1 or higher)
Activation: Touch button.
Temporary deactivation (to prevent automatic starting): Touch button again.
Continuous deactivation: Touch the button > 5 seconds.
To switch the function off permanently, i.e. even after restarting the ignition, the button must be pressed for 5
seconds. The same applies for switching it on.
Select Activating OptiTurn/OptiLoad via SmartBoard (no switch necessary) in the TEBS E Diagnostic Software to
enable the function in Trailer Remote Control without having to allocate a switch in the GIO connector assignment.
Roll Stability Adviser (with version ELEX1 or higher – only in combination with RSS function activated in
TEBS E)
The lateral acceleration of the trailer is indicated by the LEDs.
If the lateral acceleration exceeds 35 % of the critical value, the three-LED row lights up.
The additional LEDs are switched on at the following critical lateral accelerations:
•
4. LED row yellow = 35 %
•
5. LED row yellow = 55 %
•
6. LED row yellow = 75 % plus advance warning tone
•
7. LED row red = 95 % and continuous warning tone
If the communication between the ELEX in the trailer and the Trailer Remote Control in the towing vehicle is faulty,
a warning tone is signalled for 3 seconds and the central red and central yellow row of LEDs light up.
Left curve Right curve
Automatic activation: from a speed of 12 km/h
Switching off the warning tone: Touch button
Deactivating the function (until the next reset): Touch button again.
Activation of the function and the warning tone: Touch button again.
Continuous activation/deactivation: Press button at a speed above 12 km/h for at least 2 seconds.
