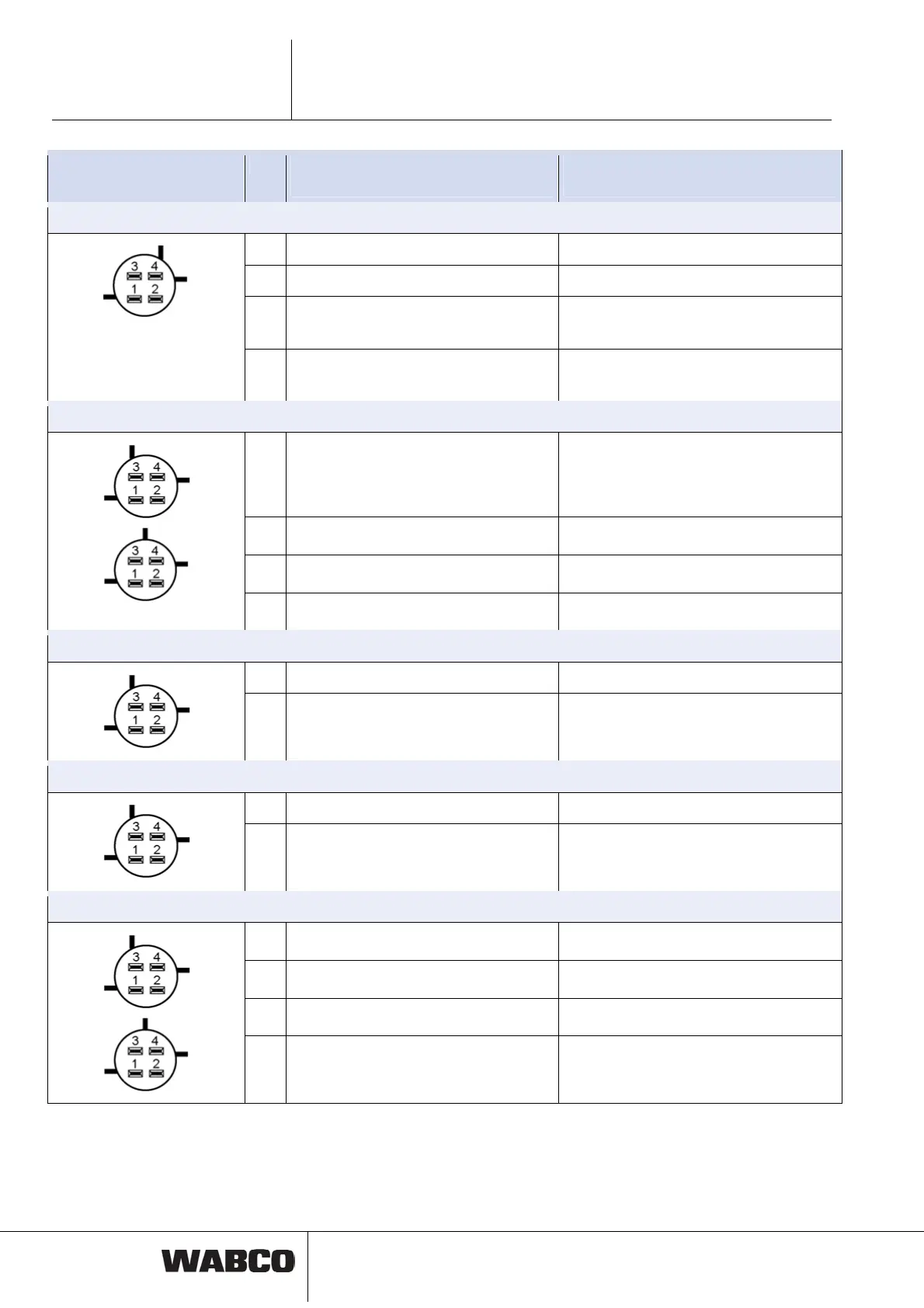

Connections Pin TEBS E Modulator
(Standard)
TEBS E Modulator
(Premium & Multi-Voltage)
IN/OUT 4-pin Code C
1 Input 24 N/Trailer Central Electronic/BAT Input 24 N/Trailer Central Electronic/BAT
2 Ground Ground
3 CAN2-High 5 V
TEBS E4 or higher: GIO analogue input
CAN2-High 5 V
TEBS E4 or higher: GIO analogue input
4 CAN2-Low 5 V
TEBS E4 or higher: GIO analogue input
CAN2-Low 5 V
TEBS E4 or higher: GIO analogue input
ABS e / GIO7, 4-pin Code A/B
1 GIO power stage 2-1 (can only be used if
GIO3, PIN4 is not used)
As of version TEBS E2: GIO power stage 7-
1
2 Ground
3 ABS rotational-speed sensor e
4 ABS rotational-speed sensor e
ABS c, 4-pin Code A
3 ABS rotational-speed sensor c ABS rotational-speed sensor c
4 ABS rotational-speed sensor c ABS rotational-speed sensor c
ABS d, 4-pin Code A
3 ABS rotational-speed sensor d ABS rotational-speed sensor d
4 ABS rotational-speed sensor d ABS rotational-speed sensor d
ABS e / GIO6, 4-pin Code A/B
1 GIO power stage 5-2
2 Ground
3 ABS rotational-speed sensor f
4 ABS rotational-speed sensor f
