TEBS E
12
Appendix
197

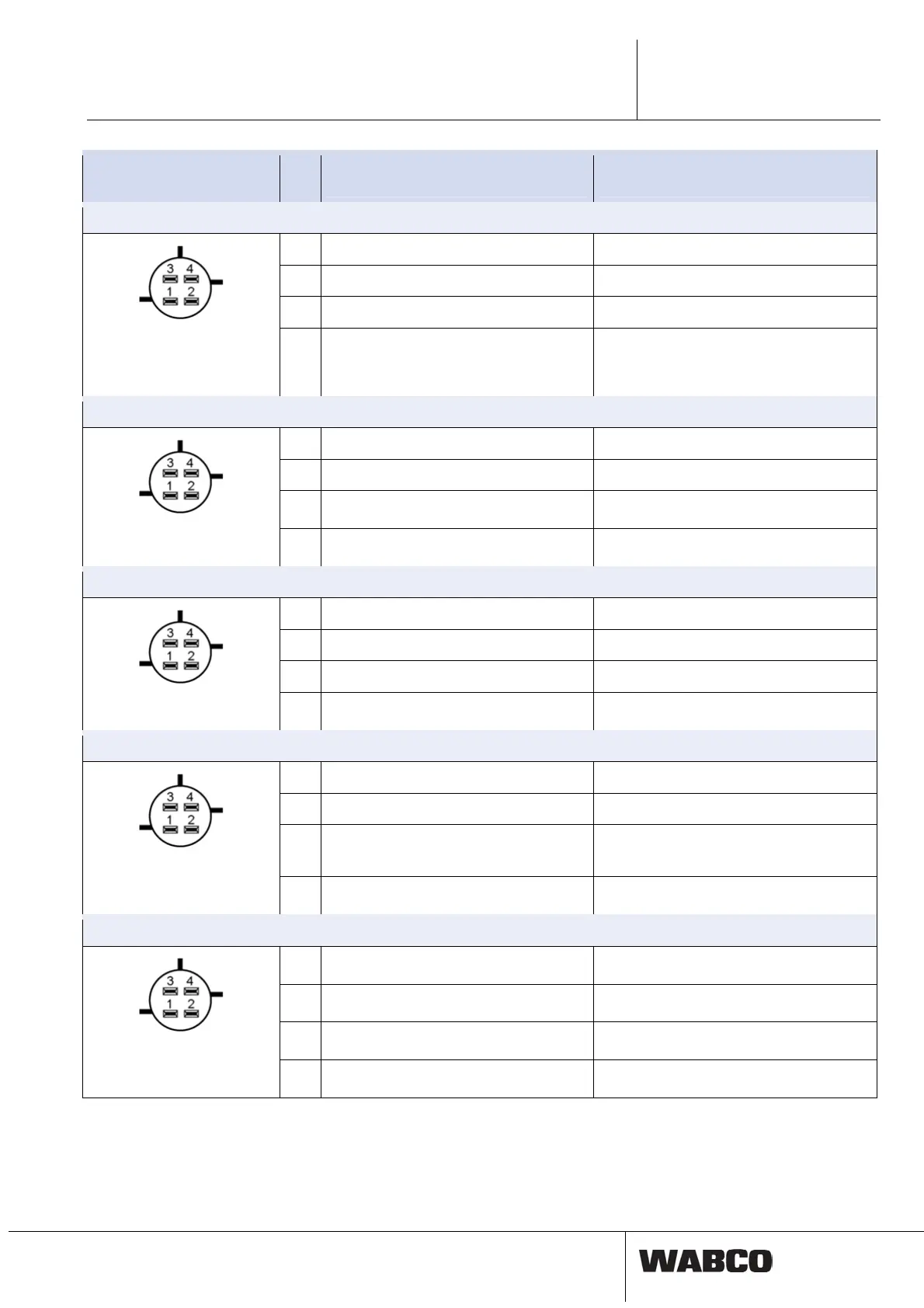

Connections Pin TEBS E Modulator
(Standard)
TEBS E Modulator
(Premium & Multi-Voltage)
GIO1, 4-pin Code B
1 GIO power stage 1-1 GIO power stage 1-1
2 Ground Ground
3 Analogue input 1 Analogue input 1
4
Height sensor 1
As of version TEBS E2: Optionally also GIO
power stage 7-2
GIO2, 4-pin Code B
1 GIO power stage 3-2 GIO power stage 3-2
2 Ground Ground
3
GIO power stage 5-1
4
GIO power stage 2-2
GIO3, 4-pin Code B
1 GIO power stage 1-2 GIO power stage 1-2
2 Ground Ground
3 Analogue input 2 Analogue input 2
4
GIO power stage 2-1
GIO4, 4-pin Code B
1 GIO power stage 3-1 GIO power stage 3-1
2 Ground Ground
3
Proximity switch
Multi-Voltage: K-line
4
Height sensor 2
GIO5, 4-pin Code B
1
GIO power stage 4-1
2
Ground
3
CAN3-High 5 V
4
CAN3-Low 5 V
